Parking sensors with video camera and 4.3" LCD display S602 OEM type 16.5mm

What is it and what is it used for?

The parking system is equipped with 4 high-performance sensors that detect obstacles in the area they are directed. The number of 4 parking sensors allows for very good coverage of the rear of the vehicle when reversing, thus eliminating the risk of hitting obstacles.

Technical specifications

• Digital display with LCD and four parking sensors
• The light indicator directs left, center, and right
• Ascending acoustic alarm to avoid collisions
• In reverse, the sensors automatically detect obstacles
• Alarm distance: 0 - 2 m
• Automatically activates with reverse gear
• Obstacle detection distance: 0 – 2 m
• Distance displayed on the screen: 30 cm – 2 m
• Water, snow, and wind resistant
• Sound warning

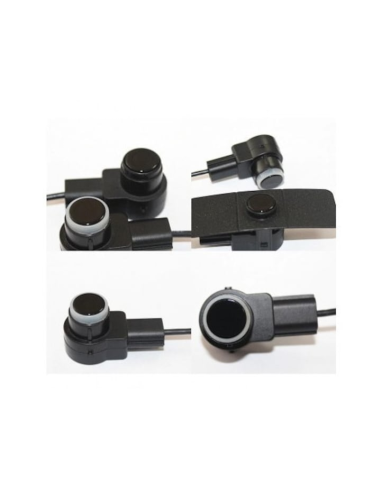

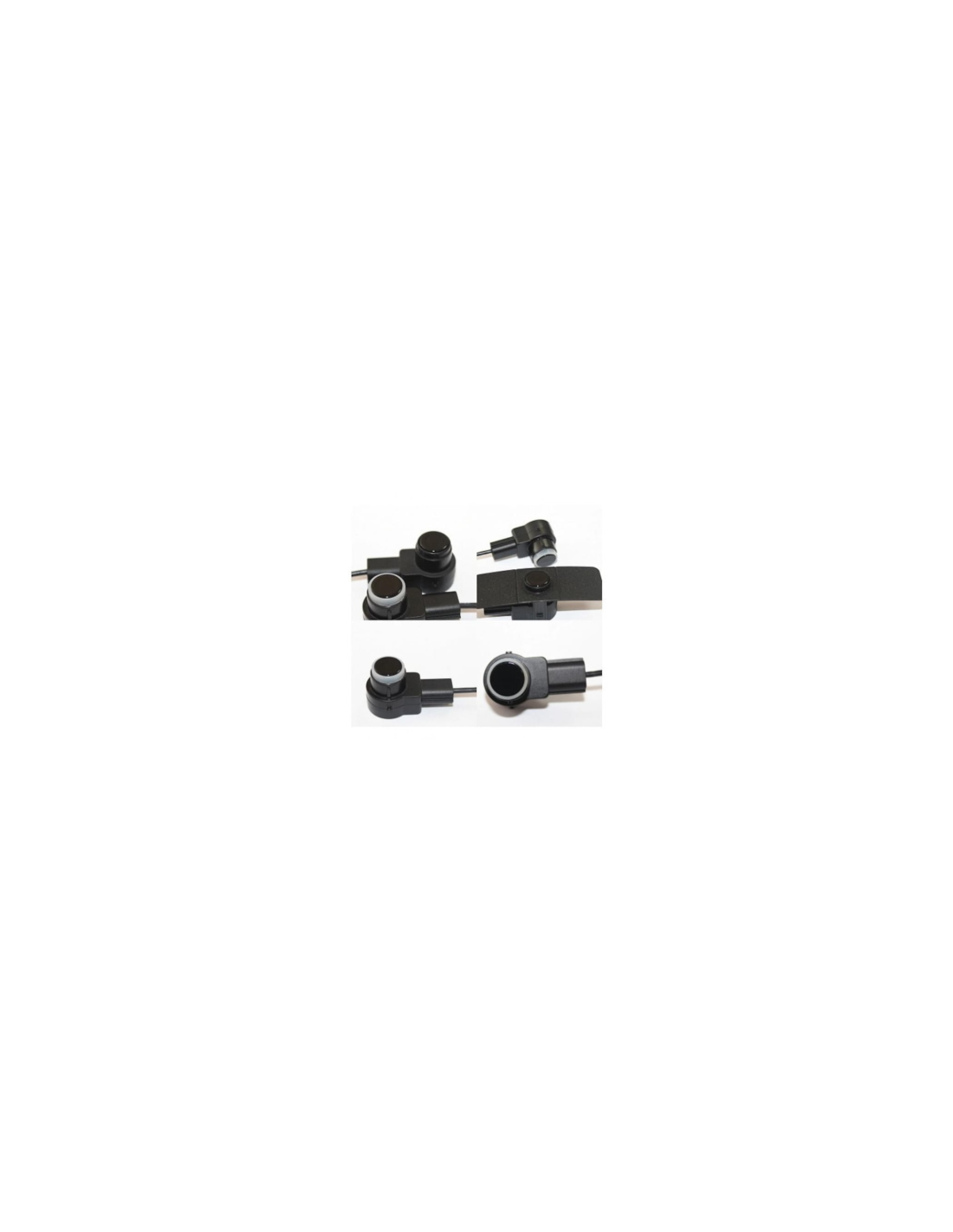

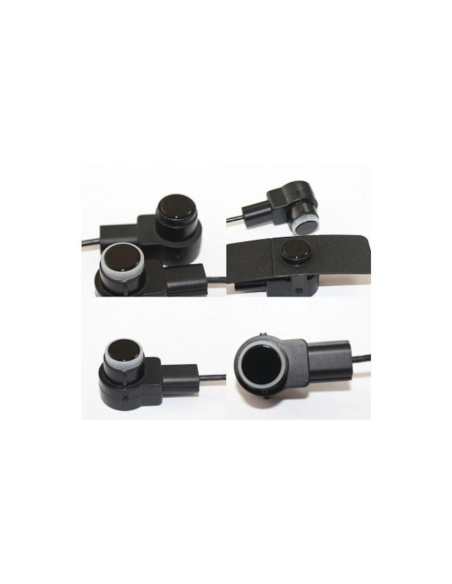

• Sensor diameter: 16.5 mm
• Power supply: DC12V
• Display size: 4.3"
• Format: 16:9 (4:3)
• Resolution: 480 x 272
• PAL/NTSC
• Video inputs: 2 (camera input + secondary input)
• Contrast: 300:1
• Operating temperature: -30~+70
• Viewing angle of 170 degrees
• Metal housing, shock resistant
• Small and compact design
• Completely waterproof (Protection class IP67)
• Easy installation
• Color: black
• Camera with two mounting systems: bar mounting by drilling or mounting with a butterfly-type metal bracket
• TV System: NTSC
• Image sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Power supply voltage: DC 12V
• Operating temperature: -30 - +70 degrees Celsius
• Water resistance - IP67, Shock resistance
• Power supply voltage: 9 - 16 V DC
• Nominal current: 20 mA - 200 mA
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 ° C - + 80 ° C

In what situations is it used in practice?

Professional use

• Used in commercial parking to avoid collisions.
• Ideal for transport vehicles that require precise maneuvers.

Personal use

• Used in residential parking for safety.
• Helps maneuver the vehicle in tight spaces.

Instructions for use

1. Install the sensors in the rear bumper of the car according to the specifications in the manual.
2. Secure the central unit in the trunk in a place protected from moisture.
3. Attach the display over the car's rearview mirror.
4. Installation in an authorized service is recommended.

What do customers appreciate about this type of product?

Customers appreciate the efficiency of the obstacle detection system, which contributes to safety during parking. Additionally, the compact design and weather resistance are important aspects for users. Ease of installation and intuitive functionality are also appreciated features.

Frequently asked questions about this type of product

Question: What distance do the sensors detect?

Answer: The sensors detect obstacles at a distance of 0 – 2 m.

Question: Is the system waterproof?

Answer: Yes, the system is waterproof, snow, and wind resistant.

Question: How is the display mounted?

Answer: The display is fixed over the car's rearview mirror.

Applicability and use

The parking sensor system is useful in various situations, both for professional use and personal use. It helps avoid collisions and facilitates parking in tight spaces.

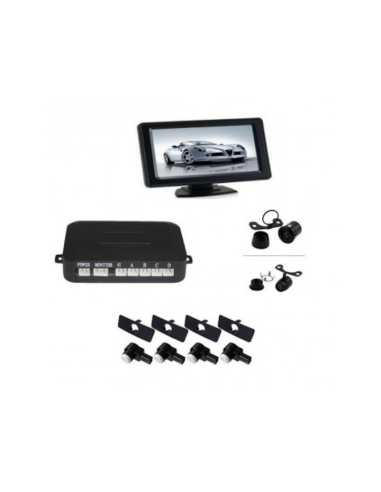

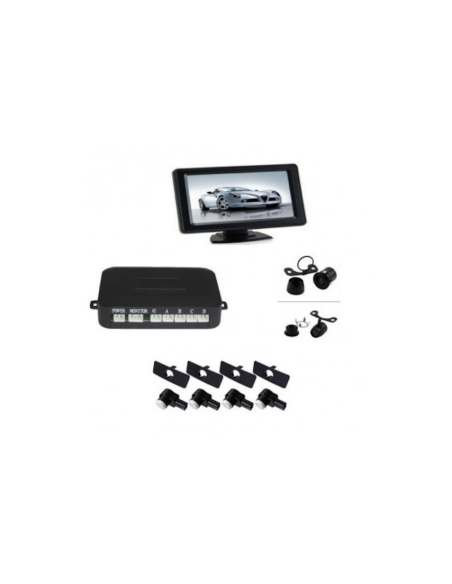

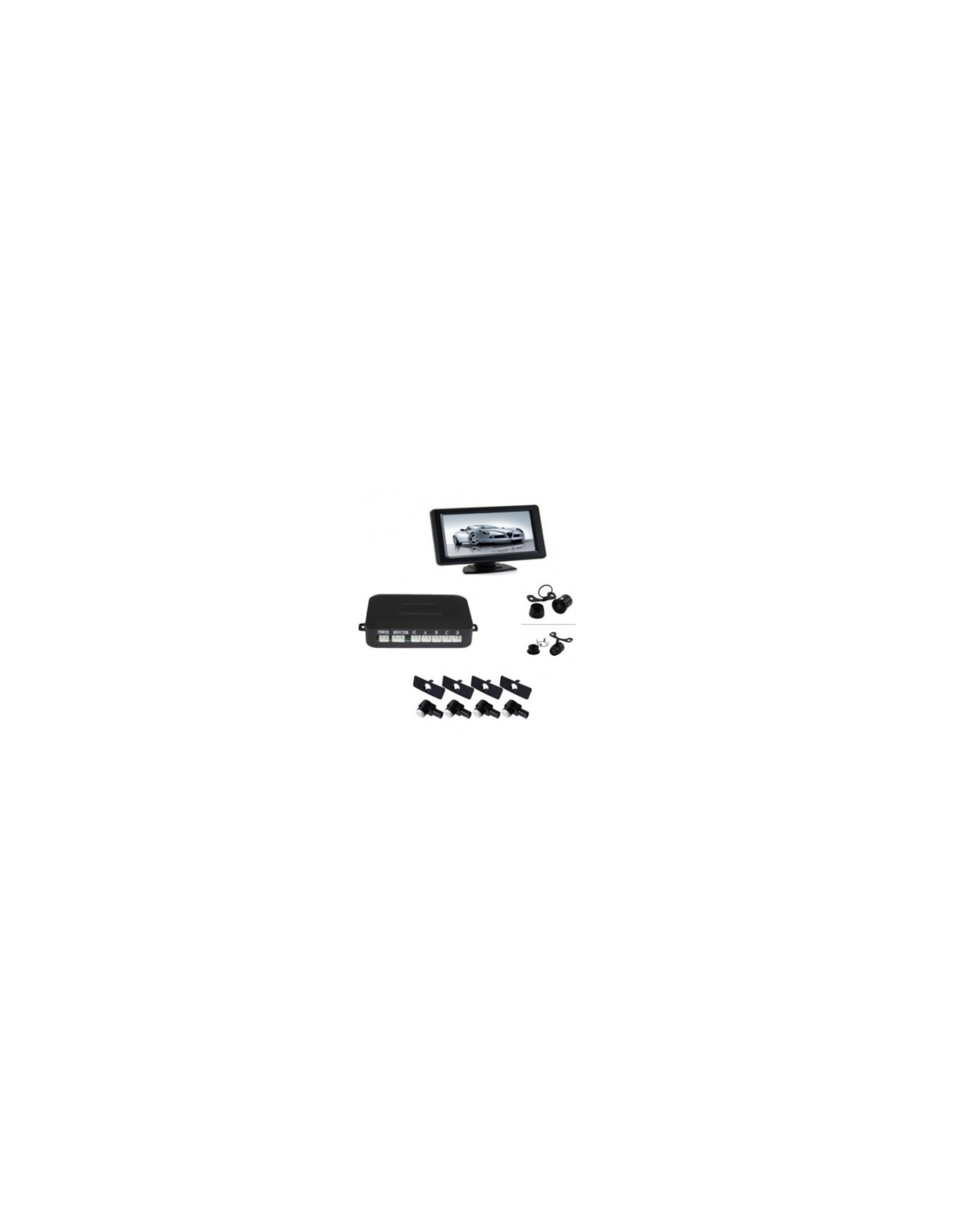

Contents of the set

• Central unit
• Parking sensors
• Power cables
• Drilling tool for bumper
• 4.3" LCD display
• Reversing camera
• 6m RCA cable
• Installation instructions

Recommendation

This parking sensor system is an effective solution for those who want to improve their safety while parking. Proper installation is essential for the optimal functioning of the system.
