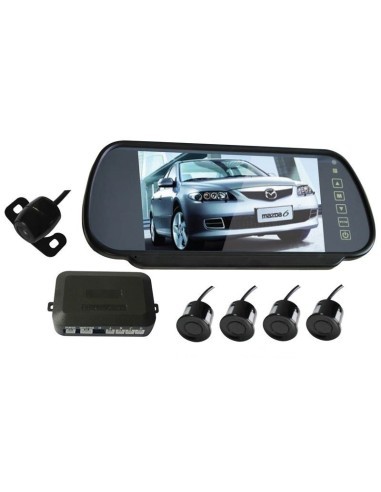

Parking sensors with video camera and 7" LCD display in mirror T24

Product Description
The parking system is equipped with 4 high-performance sensors that detect obstacles in the area they are directed at. The 4 parking sensors provide very good coverage of the rear of the car when reversing, thus eliminating the risk of hitting obstacles.

Features
-Digital LCD display with four parking sensors
-The light indicator directs left, center, and right
-Ascending acoustic alarm to avoid collisions
-In reverse, the sensors automatically detect obstacles
-Alarm distance: 0 – 2 m

How to Install
-Easy to install, the product comes with a complete installation kit
-The sensors are fixed in the rear bumper of the car according to the specifications in the product manual, drilling the bumper with the special drill included in the kit
-The central unit is fixed in the trunk in a place protected from moisture

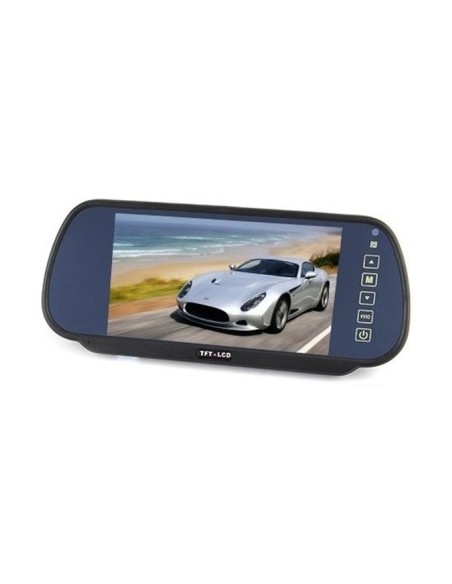

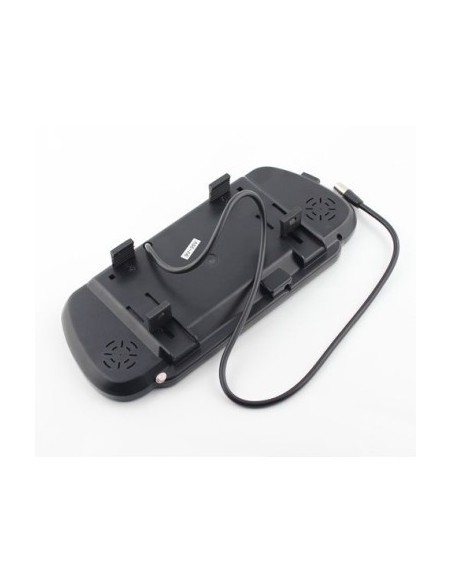

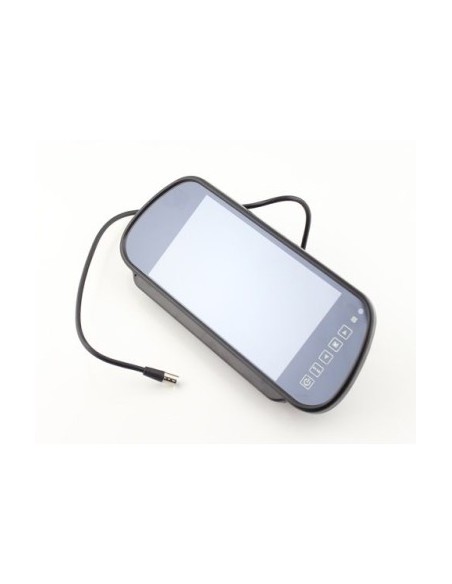

-The display is fixed over the car's rearview mirror

Technical Specifications of Parking Sensors

– Automatically activates with reverse gear

– Obstacle detection distance: 0 – 2 m

– Distance displayed on screen: 30 cm – 2 m

– Water, snow, and wind resistant

– Sound warning

– Sensor diameter: 22 mm

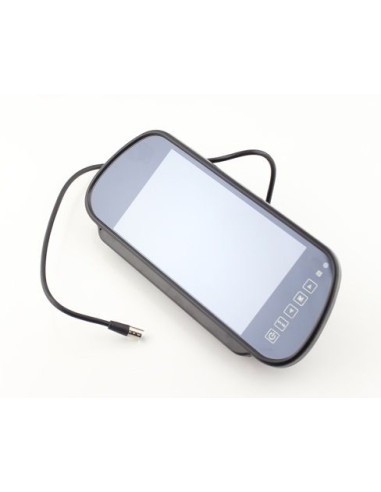

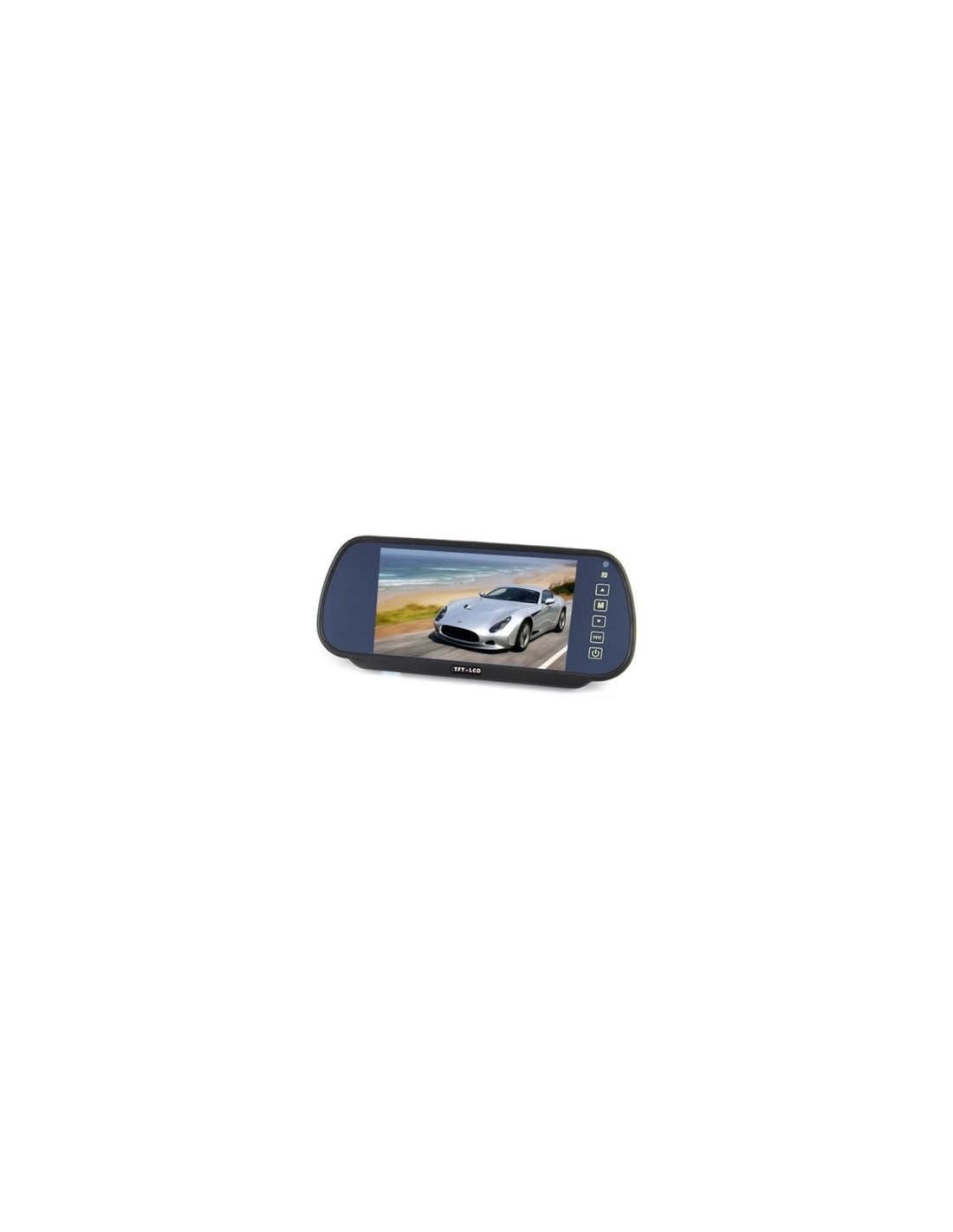

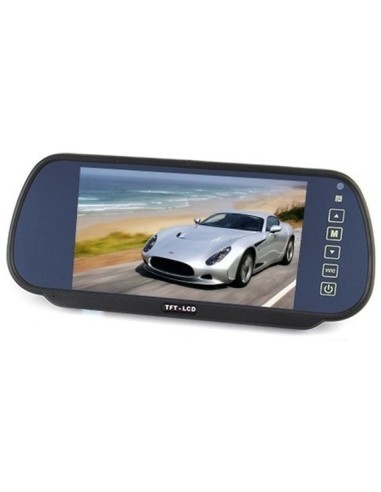

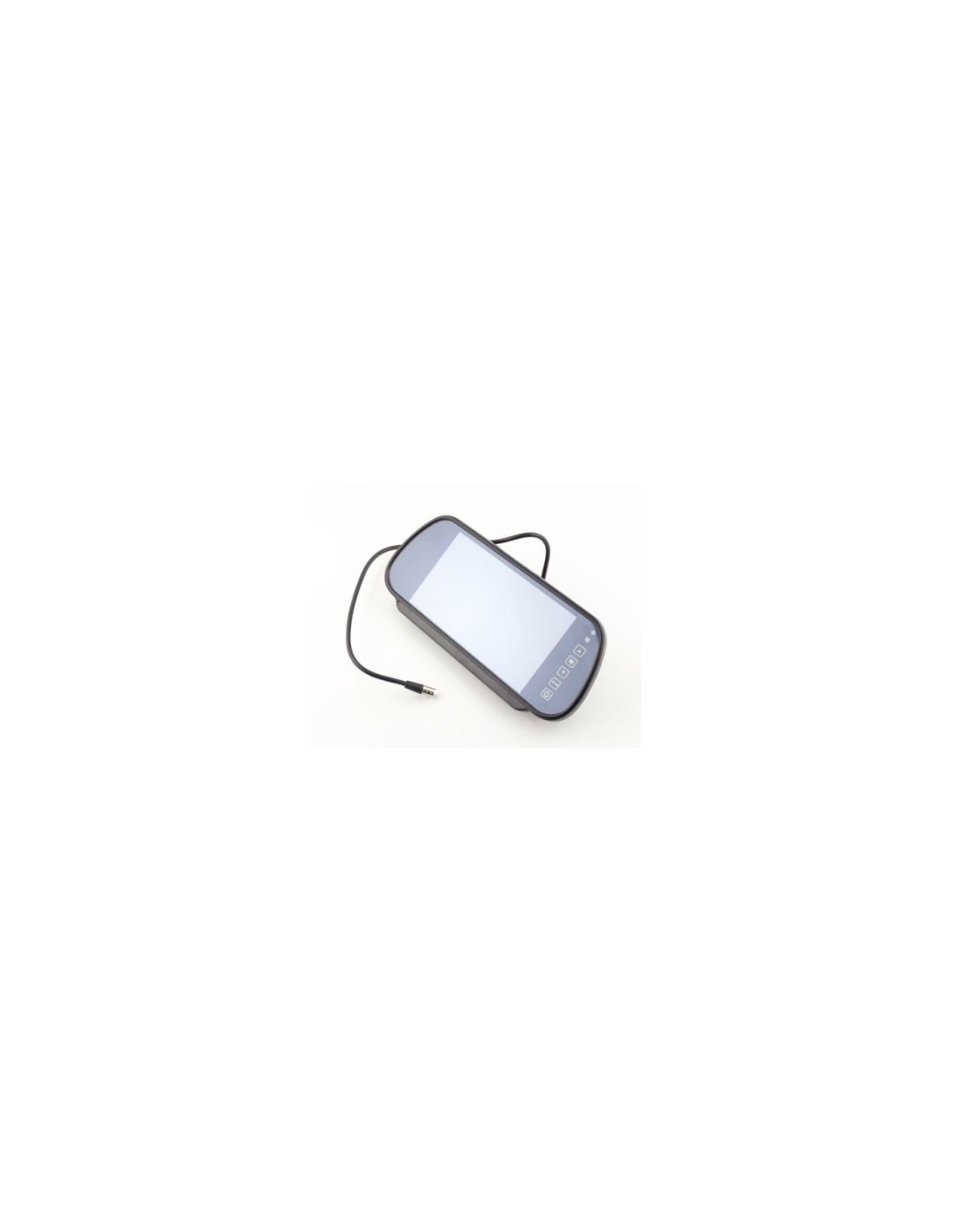

Technical Parameters of Display

Power Supply: DC12V
Display Size: 7″
Format: 16:9 (4:3)
Resolution: 480 x 272
PAL/NTSC
Video Inputs: 2 (camera input + secondary input)
Contrast: 300:1
Operating Temperature: -30~+70

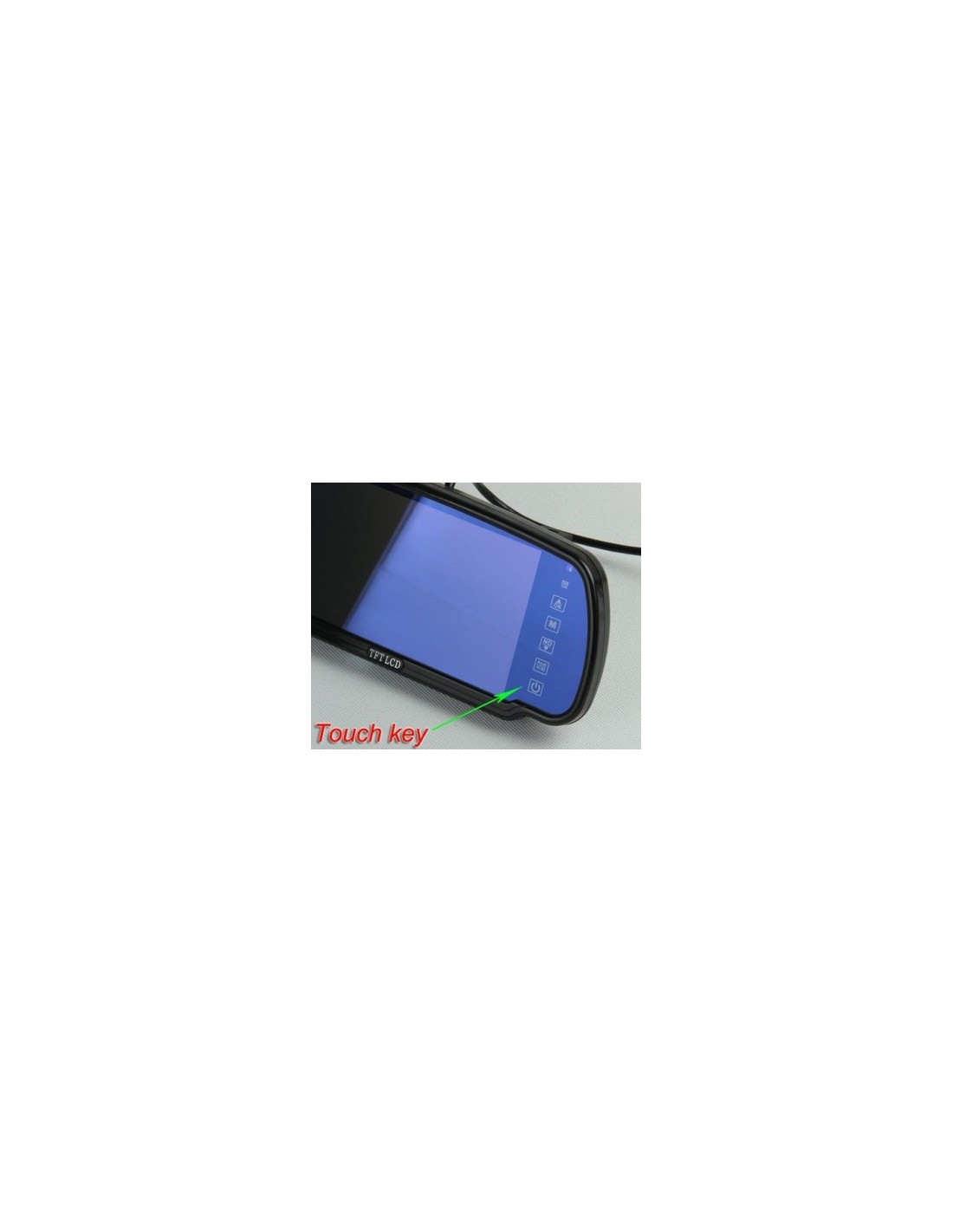

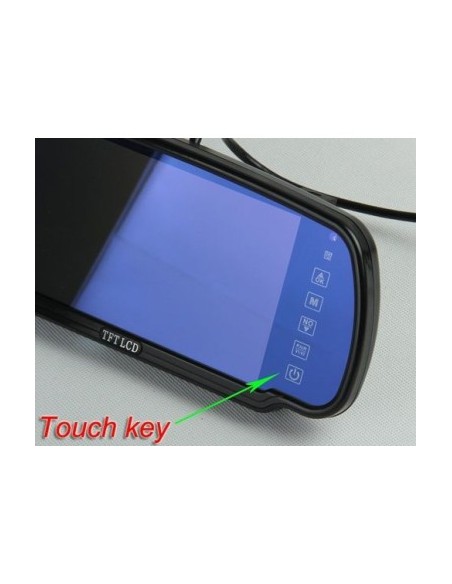

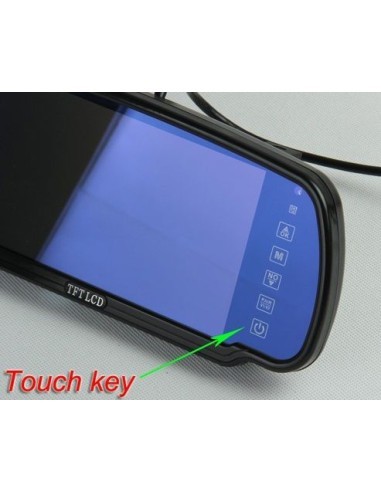

Touchscreen
Remote Control

Features of Rearview Camera

1. 170-degree viewing angle
2. Metal housing, shock resistant
3. Small and compact design
4. Fully waterproof (Protection Class IP67)
5. Simple installation
6. Color: black

Technical Specifications of Rearview Camera

1. TV System: NTSC
2. Image Sensor: Color CMOS
3. Pixels: 688×488
4. Resolution: 420 TV Lines
5. Power Supply: DC 12V
6. Operating Temperature: -30 – +70 degrees Celsius
7. Waterproof – IP67, Shock resistant

Technical Parameters of Parking Sensors

Power Supply: 9 – 16 V DC
Nominal Current: 20 mA – 200 mA

Ultrasonic Frequency: 40 KHz
Operating Temperature: -30 ° C – + 80 ° C

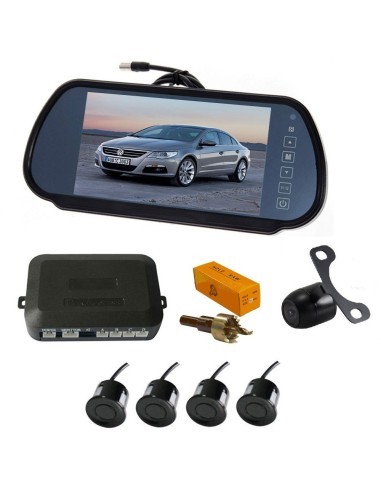

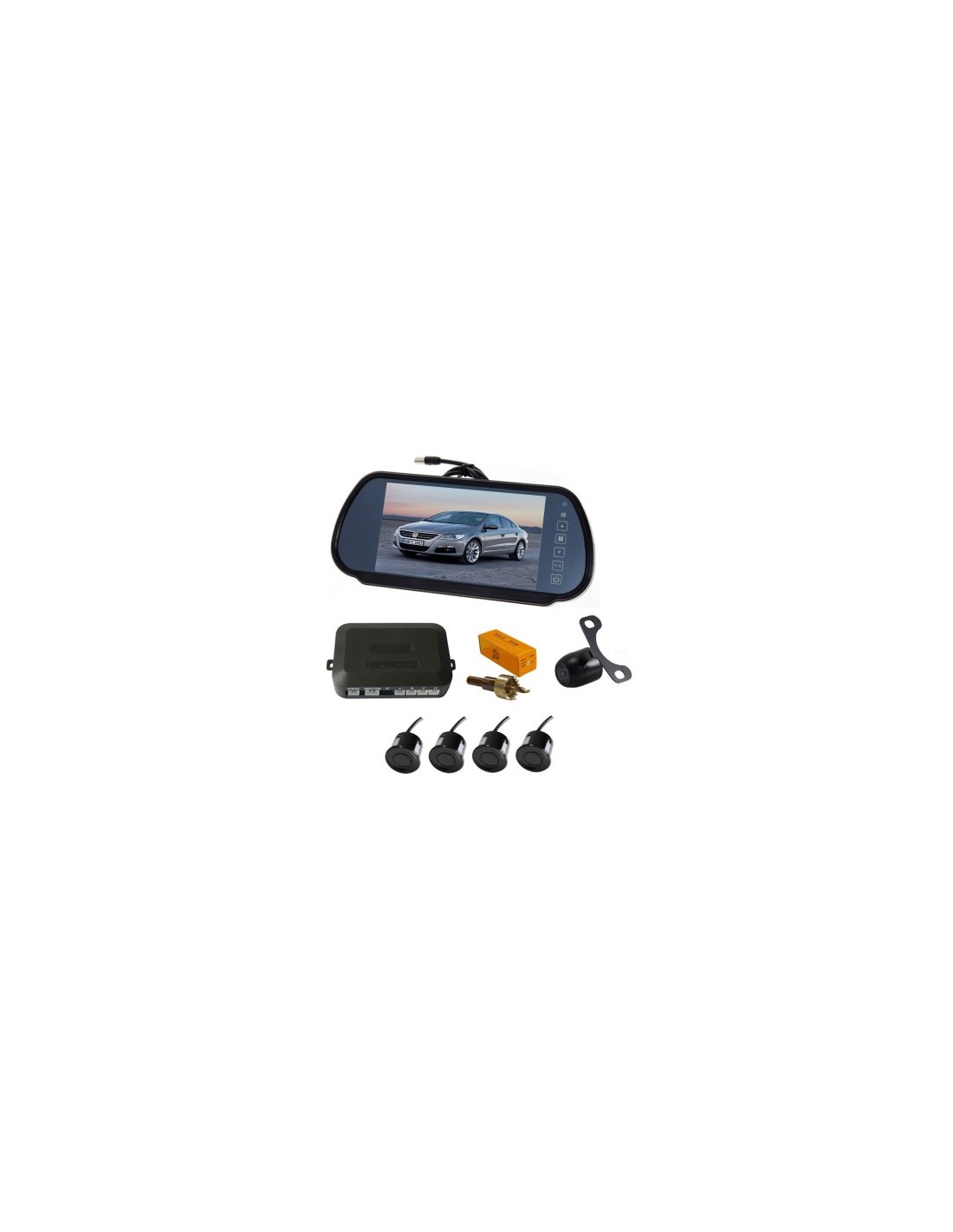

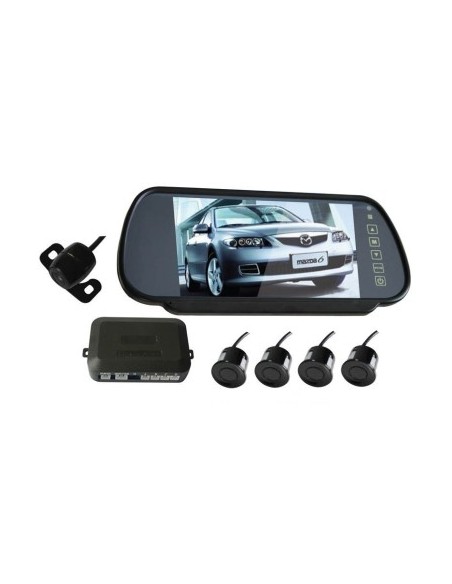

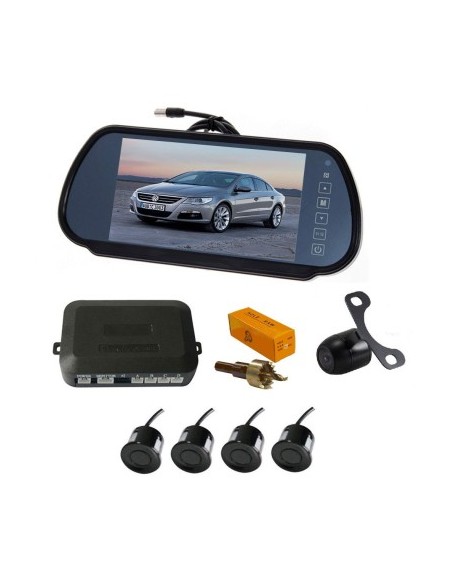

Package Contents

Central unit

Parking sensors

Power cables

Drill for bumper

Rearview mirror with 7″ LCD Display

Rearview camera

6m RCA cable

Installation instructions

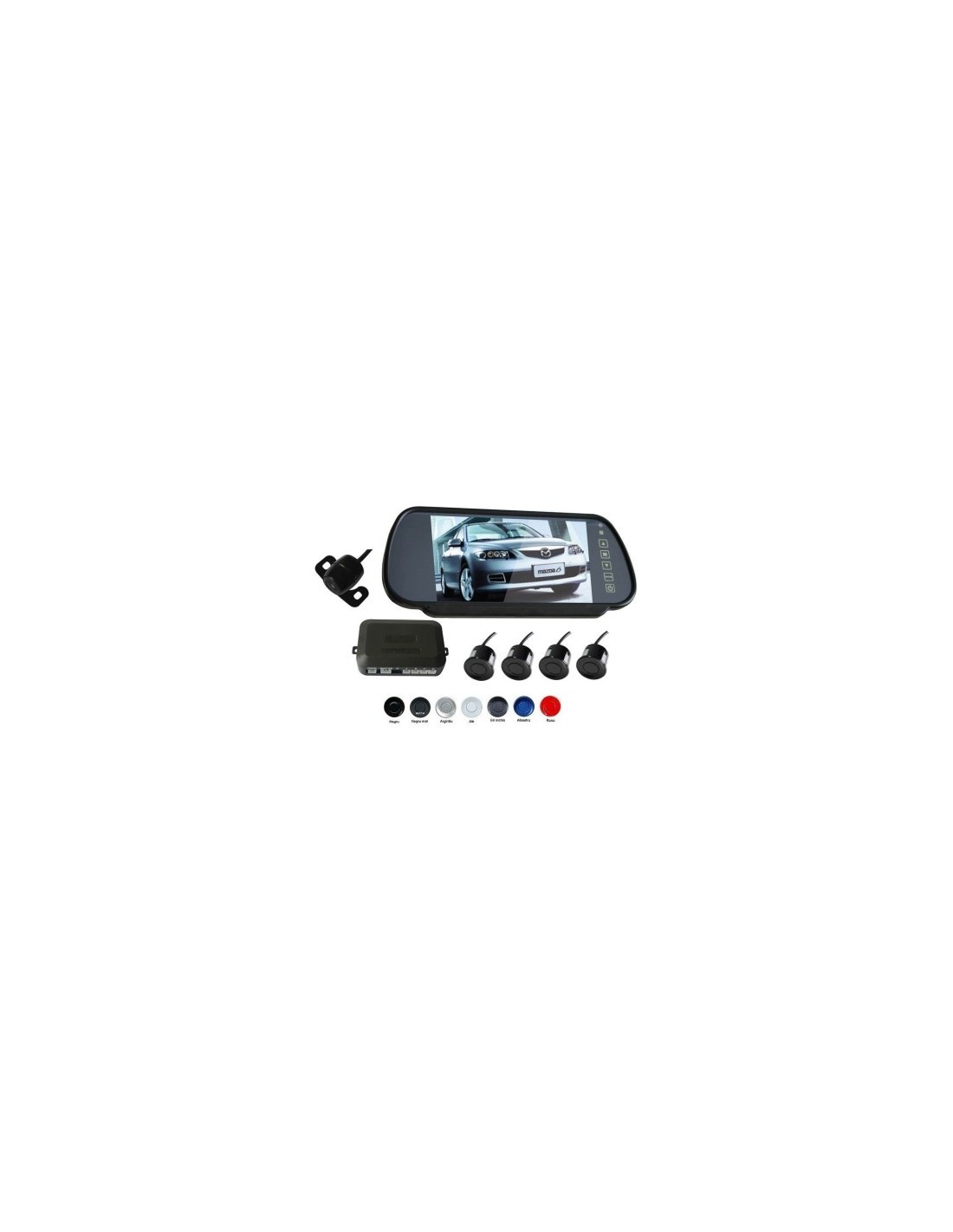

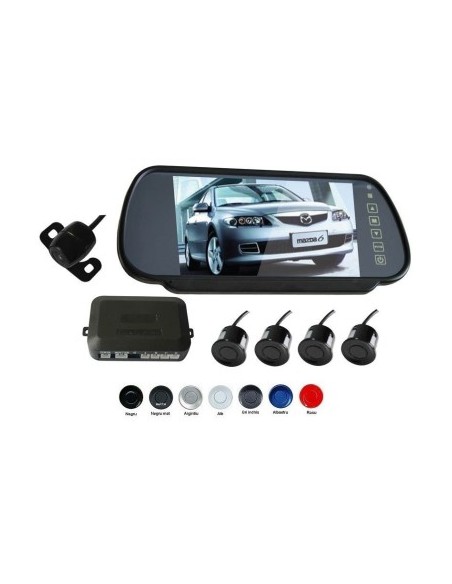

Available colors*: White, Silver, Dark Gray, Red, Black, Matte Black, Blue

*The sensors can be painted by the buyer in the original color of the car

12-month warranty
