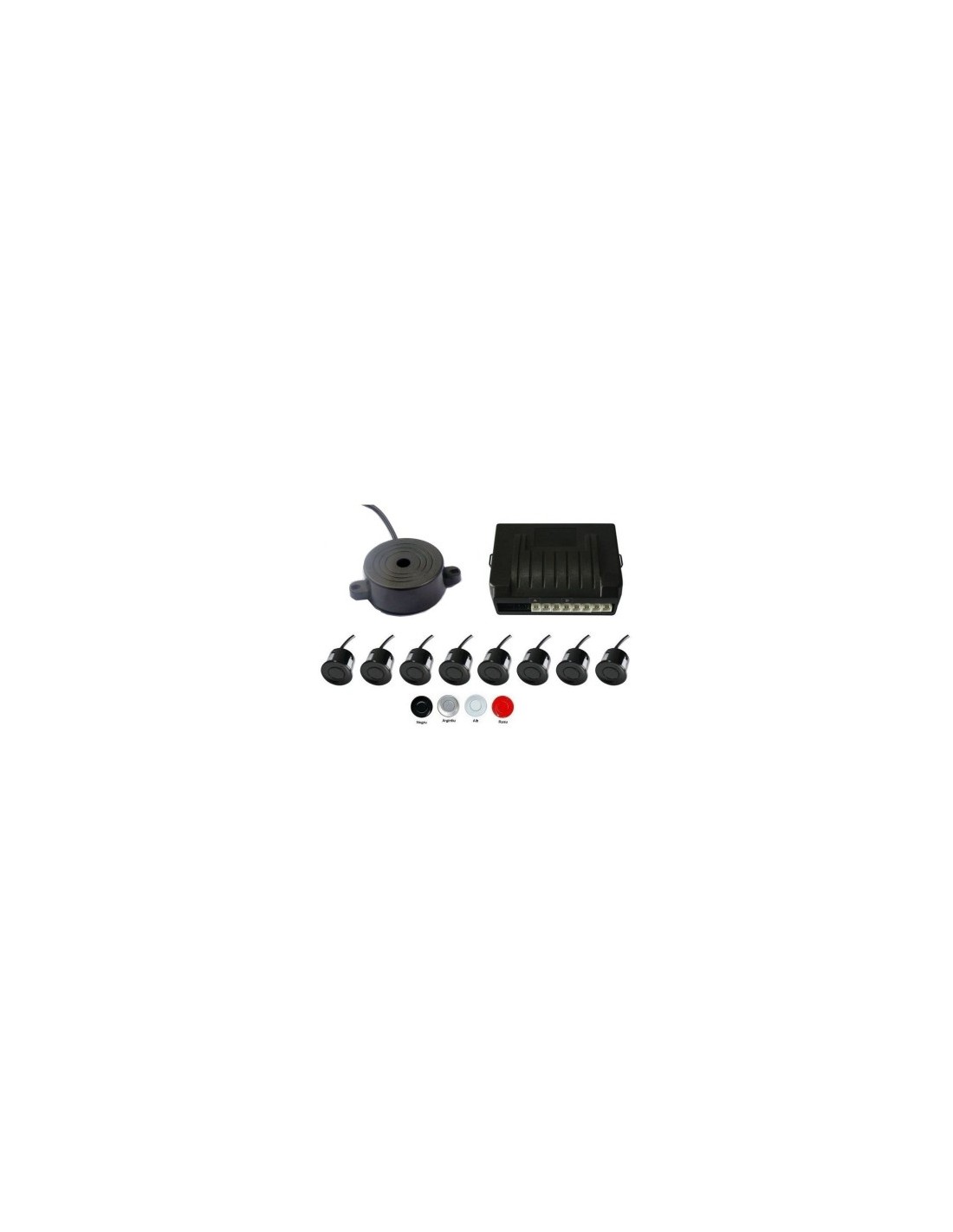

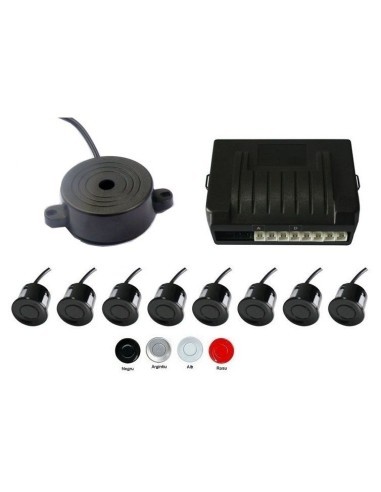

Front and rear parking sensors with 8 sensors and audible warning

What is it and what is it used for?

The parking system is equipped with 8 sensors that detect obstacles in the area they are directed towards. This system allows for extensive coverage of the front and rear of the vehicle, significantly reducing the risk of collision. The sensors work effectively in reverse, activating automatically to alert the driver in case of obstacles. The alarm distance ranges from 0 to 2 meters, thus ensuring adequate protection during parking maneuvers.

Technical specifications

• Power supply voltage: 9 - 16 V DC
• Nominal current: 20 mA - 200 mA
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 °C - +80 °C
• Obstacle detection distance: 0 - 2 m
• Sensor diameter: 22 mm
• Water, snow, and wind resistant
• Audible warning

In what situations is it used in practice?

Professional use

• Used in commercial parking lots to facilitate parking maneuvers.
• Ideal for car fleets that require constant monitoring of parking space.

Personal use

• Used by drivers to avoid collisions when parking in tight spaces.
• Helps detect invisible obstacles, such as poles or other vehicles.

Compatibility

No specific compatibility information is available.

Compatible Codes

No compatible codes are available.

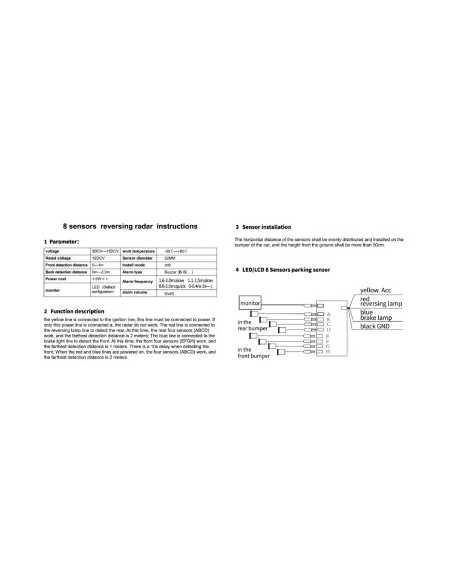

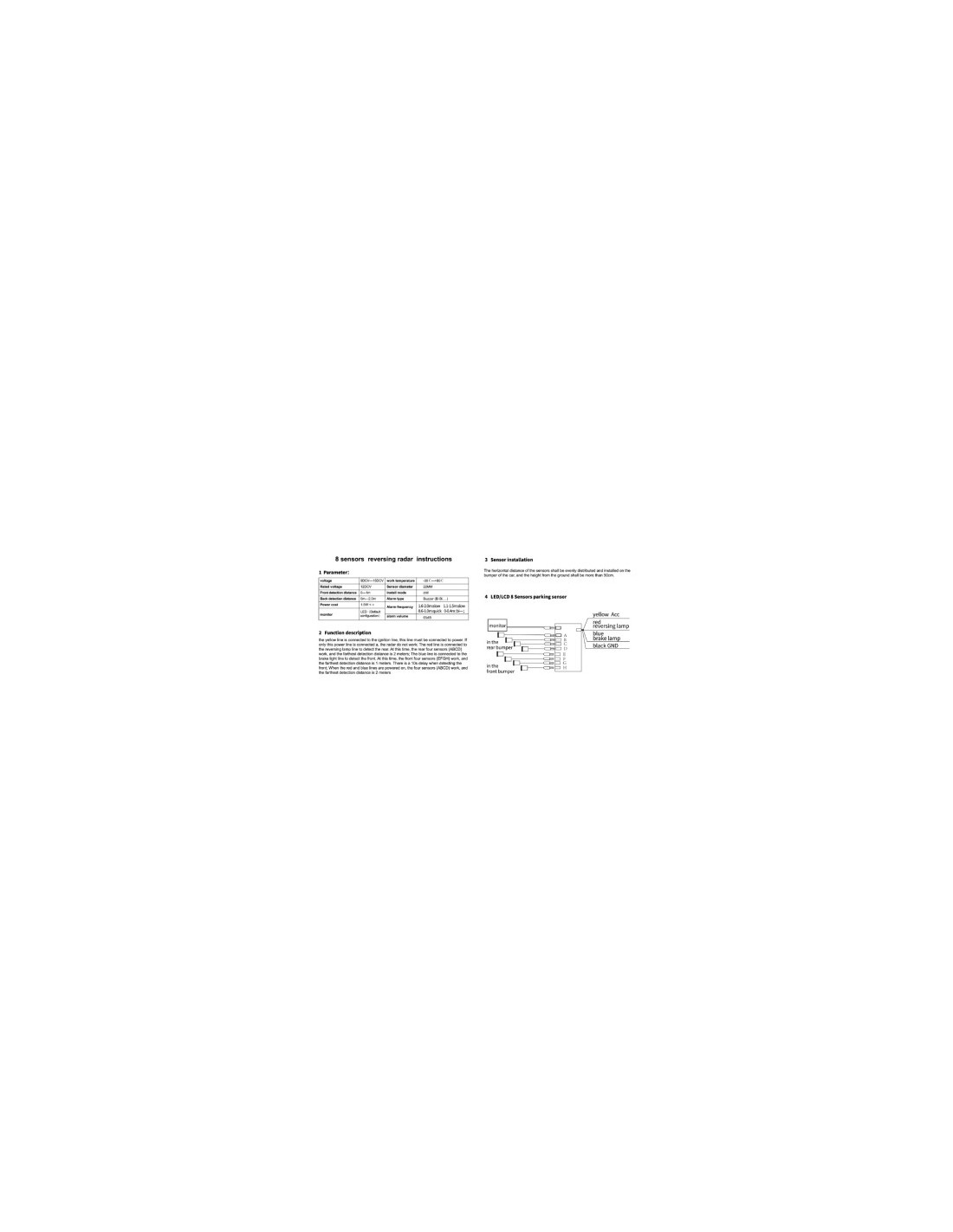

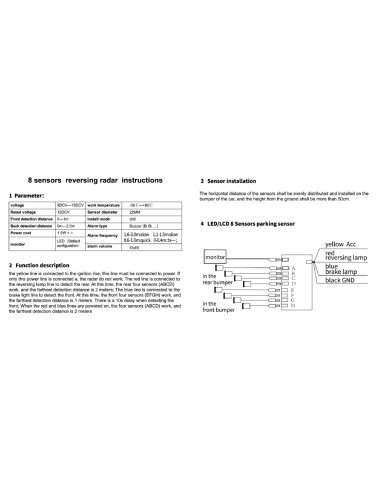

Instructions for use

1. The product comes with a complete installation kit.
2. The sensors are fixed in the front and rear bumper of the vehicle according to the specifications in the manual.
3. The included drill is used to make holes in the bumper.
4. The central unit is mounted in the trunk, in a place protected from moisture.
5. It is recommended to install it in an authorized service if the instructions are not clear.

What do customers appreciate about this type of product?

Customers appreciate the efficiency of the parking sensor system, which provides extensive coverage and a clear audible warning. Additionally, the ease of use and the included installation kit are positive aspects. Resistance to various weather conditions is another important advantage, ensuring optimal operation in any season.

Frequently asked questions about this type of product

Question: How do parking sensors work?

Answer: The sensors emit ultrasonic waves that detect nearby obstacles, providing an audible warning to the driver.

Question: Is it difficult to install?

Answer: Installation is simple, but it is recommended to have it done in an authorized service to ensure correct installation.

Question: What should I do if the sensors do not work correctly?

Answer: Check the connections and ensure that the sensors are mounted correctly. If the problem persists, consult a specialist.

Applicability and use

Parking sensors are useful in various situations, both in public parking lots and in private spaces. This system is essential for drivers who want to avoid accidents while parking and maneuver more easily in tight spaces.

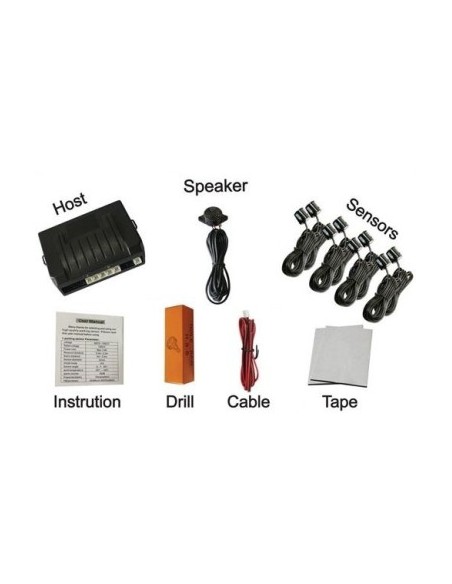

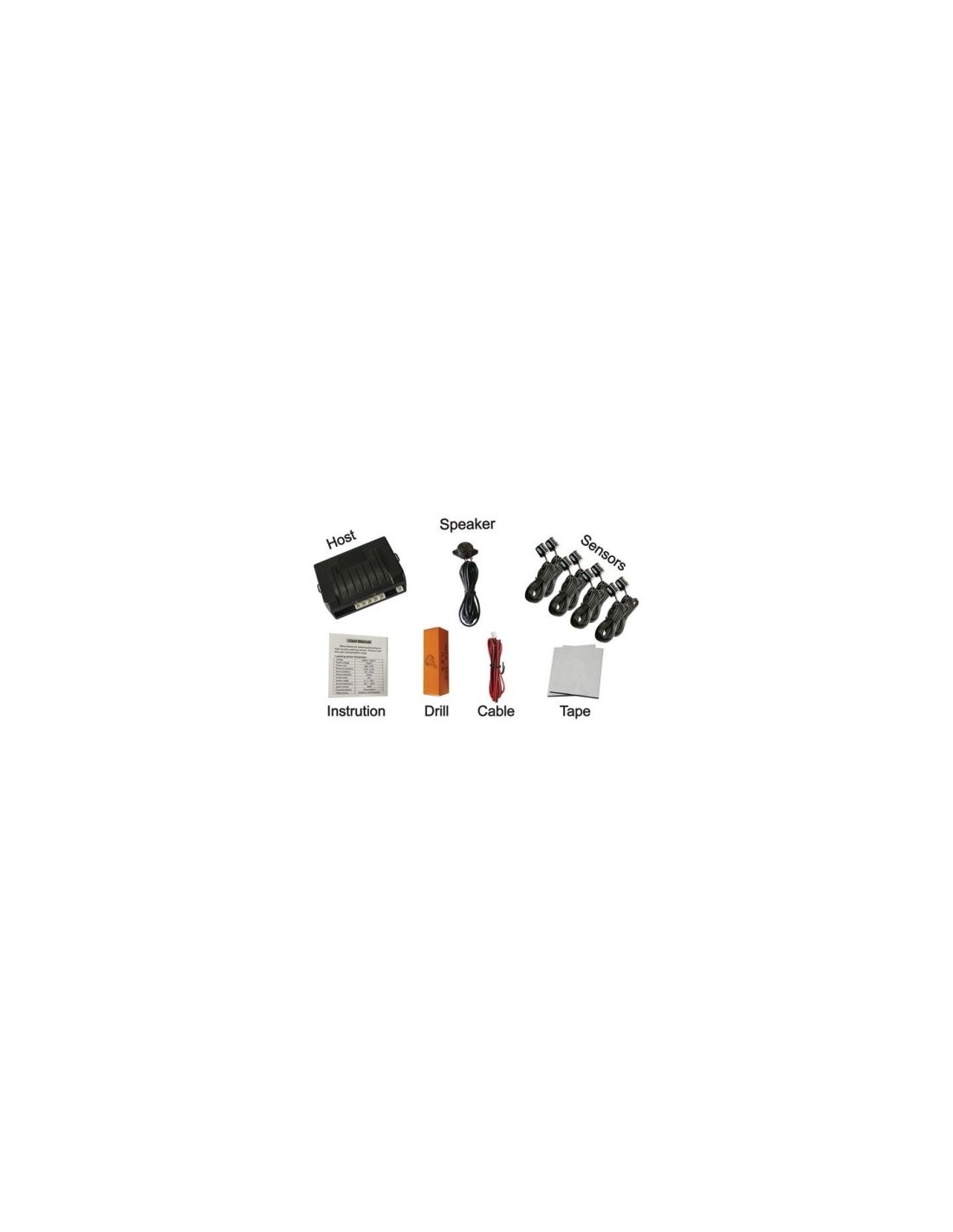

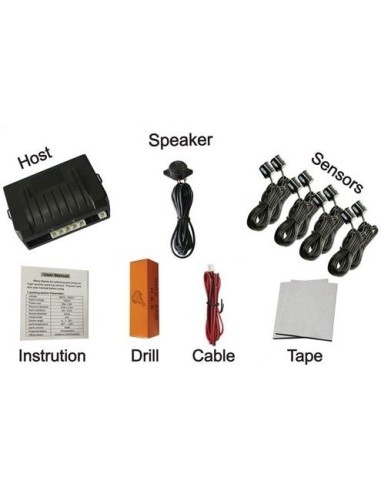

Contents of the set

• Central unit
• Parking sensors
• Power cable
• Bumper drilling drill
• Buzzer
• Installation instructions

Recommendation

This parking sensor system is a practical solution for drivers who want to protect their vehicle and avoid collisions. Correct installation and optimal use can contribute to a safer driving experience.
