Parking sensors with video camera without display T18

Product Description
The parking system is equipped with 4 high-performance sensors that detect obstacles in the area they are directed. The 4 parking sensors allow for very good coverage of the rear of the car when reversing, thus eliminating the risk of hitting obstacles.

Features
-Ascending acoustic alarm to avoid collisions
-In reverse, the sensors automatically detect obstacles
-Alarm distance: 0 – 2 m

How to Install
-Easy to install, the product comes with a complete installation kit
-The sensors are fixed in the rear bumper of the car according to the specifications in the product manual, drilling the bumper with the special drill bit included in the kit
-The central unit is fixed in the trunk in a place protected from moisture

Technical Specifications of Parking Sensors

– Automatically activates with reverse gear

– Obstacle detection distance: 0 – 2 m

– Water, snow, and wind resistant

– Sound warning

– Sensor diameter: 22 mm

Technical Parameters of Parking Sensors

Power supply voltage: 9 – 16 V DC
Nominal current: 20 mA – 200 mA

Ultrasonic frequency: 40 KHz
Operating temperature: -30 °C – +80 °C

Rear Camera Features

1. Viewing angle of 170 degrees
2. Metal housing, shock resistant
3. Small and compact design
4. Fully waterproof (Protection Class IP67)
5. Simple installation
6. Color: black

Technical Specifications of Rear Camera

1. TV System: NTSC
2. Image sensor: Color CMOS
3. Pixels: 688×488
4. Resolution: 420 TV Lines
5. Power supply: DC 12V
6. Operating temperature: -30 – +70 degrees Celsius
7. Waterproof – IP67, Shock resistant

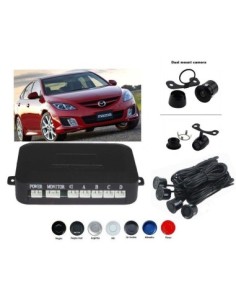

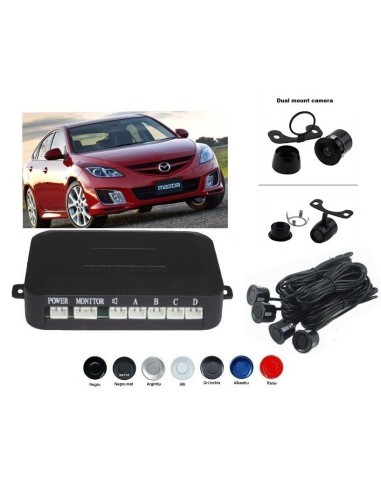

Package Contents

Central unit

Parking sensors

Butterfly type rear camera

6m RCA cable

Power cables

Drill bit for bumper

Installation instructions

Available colors*: White, Silver, Dark Gray, Red, Black, Matte Black, Blue

*The sensors can be painted by the buyer in the original color of the car

12-month warranty
