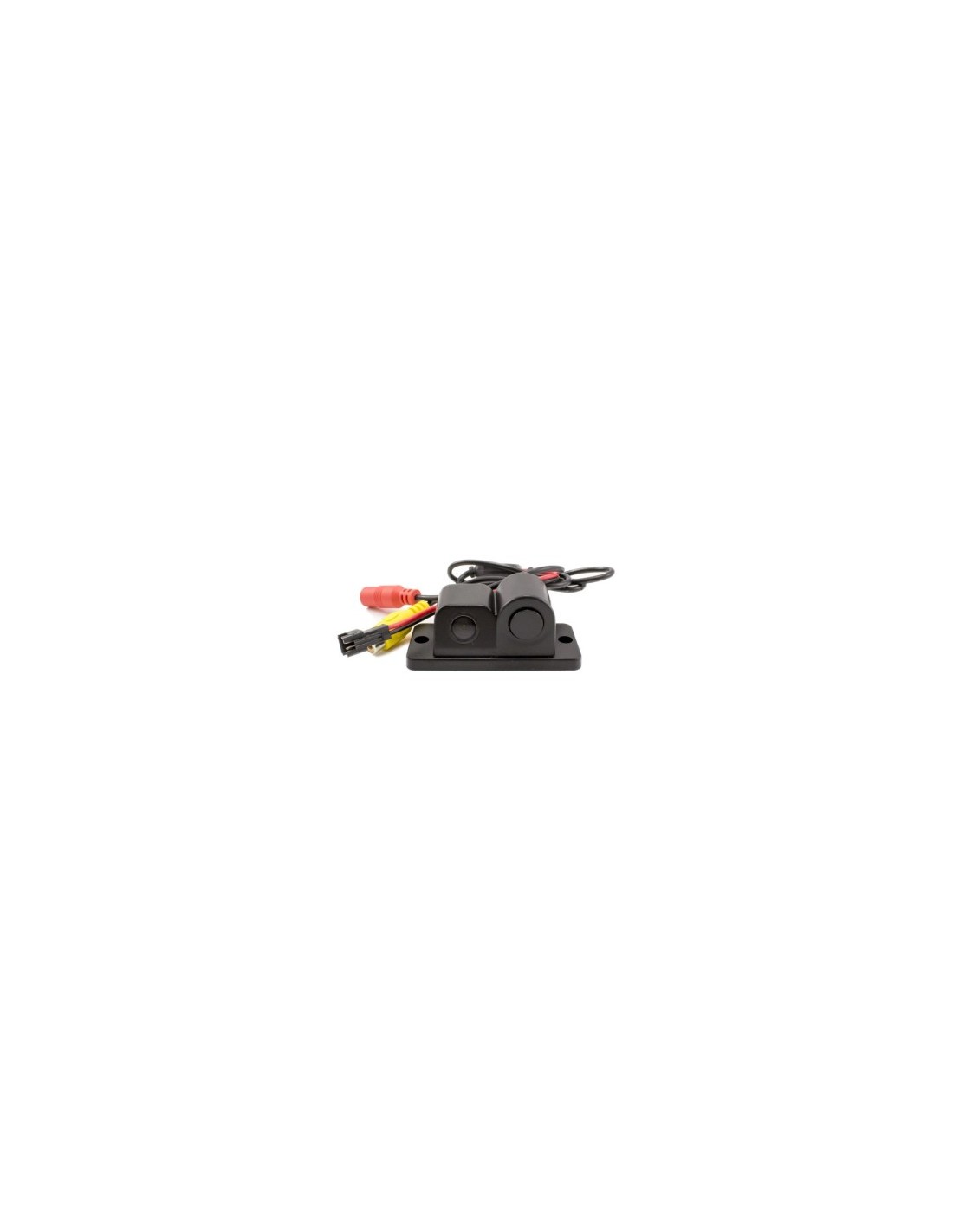

2 in 1 Parking System with Rearview Camera and Built-in Parking Sensor

This 2 in 1 parking system is equipped with a rearview camera and a built-in parking sensor, providing an efficient solution to avoid collisions. The ascending acoustic alarm alerts the driver when approaching obstacles, and the sensors automatically detect obstacles while reversing. The alarm distance ranges from 0 to 2 meters, ensuring safe and precise use.

What is it and what is it used for?

The 2 in 1 parking system is a device that combines a rearview camera with a parking sensor, facilitating vehicle maneuvering in tight spaces. It is easy to install and comes with a complete installation kit. The power supply voltage for the parking sensors is 9 - 16 V DC, and the nominal current ranges from 20 mA to 200 mA. This system is ideal for drivers who want to avoid accidents and have better visibility during reversing maneuvers.

Technical Specifications

• Ascending acoustic alarm to avoid collision
• Alarm distance: 0 - 2 m
• Obstacle detection distance: 0.3 - 2 m
• Water, snow, and wind resistant
• Sound warning
• Power supply: 9 - 16 V DC
• Nominal current: 20 mA - 200 mA
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 °C - +80 °C
• Viewing angle: 170 degrees
• Shock-resistant housing
• Small and compact design
• Fully waterproof (IP67 protection class)
• TV System: NTSC
• Image sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Camera power supply: DC 12V
• Camera operating temperature: -30 - +70 degrees Celsius
• Camera waterproof rating: IP67
• Camera shock resistance

In what situations is it used in practice?

Professional Use

• Used in crowded parking lots to avoid collisions.
• Ideal for fleet drivers requiring precise maneuvers.
• Used in freight transport to ensure safety during deliveries.

Personal Use

• Facilitates parking in tight spaces, such as garages.
• Provides better visibility during reversing maneuvers.
• Reduces the risk of accidents during parking.

Compatibility

• Brand - Series - Model - Year range (month/year - month/year)

Compatible Codes

• Specific codes

Usage Instructions

1. Ensure you have all the necessary components for installation.
2. Install the control unit in the trunk, in a place protected from moisture.
3. Connect the sensors according to the instructions in the manual.
4. Check the system's functionality before use.
5. If instructions are not included, it is recommended to install at an authorized service.

What do customers appreciate about this type of product?

Customers appreciate 2 in 1 parking systems for their ease of use and installation. They provide an effective solution for avoiding accidents and improve visibility during maneuvers. Additionally, water resistance and the ability to withstand difficult weather conditions are highly valued features.

Frequently Asked Questions about this type of product

Question: Is a car display necessary for the camera?

Answer: Yes, a car display is necessary to view the image transmitted by the camera, which is not included in the package.

Question: What type of power supply does the system require?

Answer: The system requires a power supply of 9 - 16 V DC for operation.

Question: What is the obstacle detection distance?

Answer: The obstacle detection distance is between 0.3 and 2 meters.

Applicability and Use

The 2 in 1 parking system is applicable in various situations, both in urban and rural environments. It is useful for drivers who want to maneuver precisely in tight spaces and avoid collisions. Additionally, it is a valuable tool for professional drivers who require increased visibility during deliveries.

Contents of the Set

• 2 in 1 rearview camera with built-in parking sensor

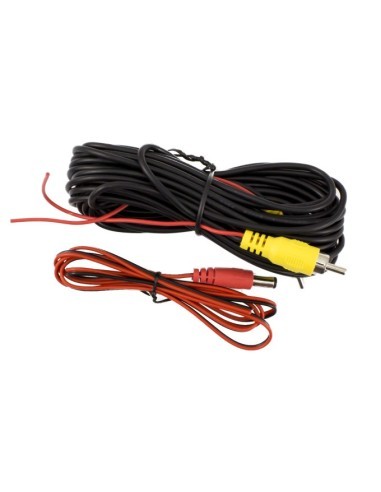

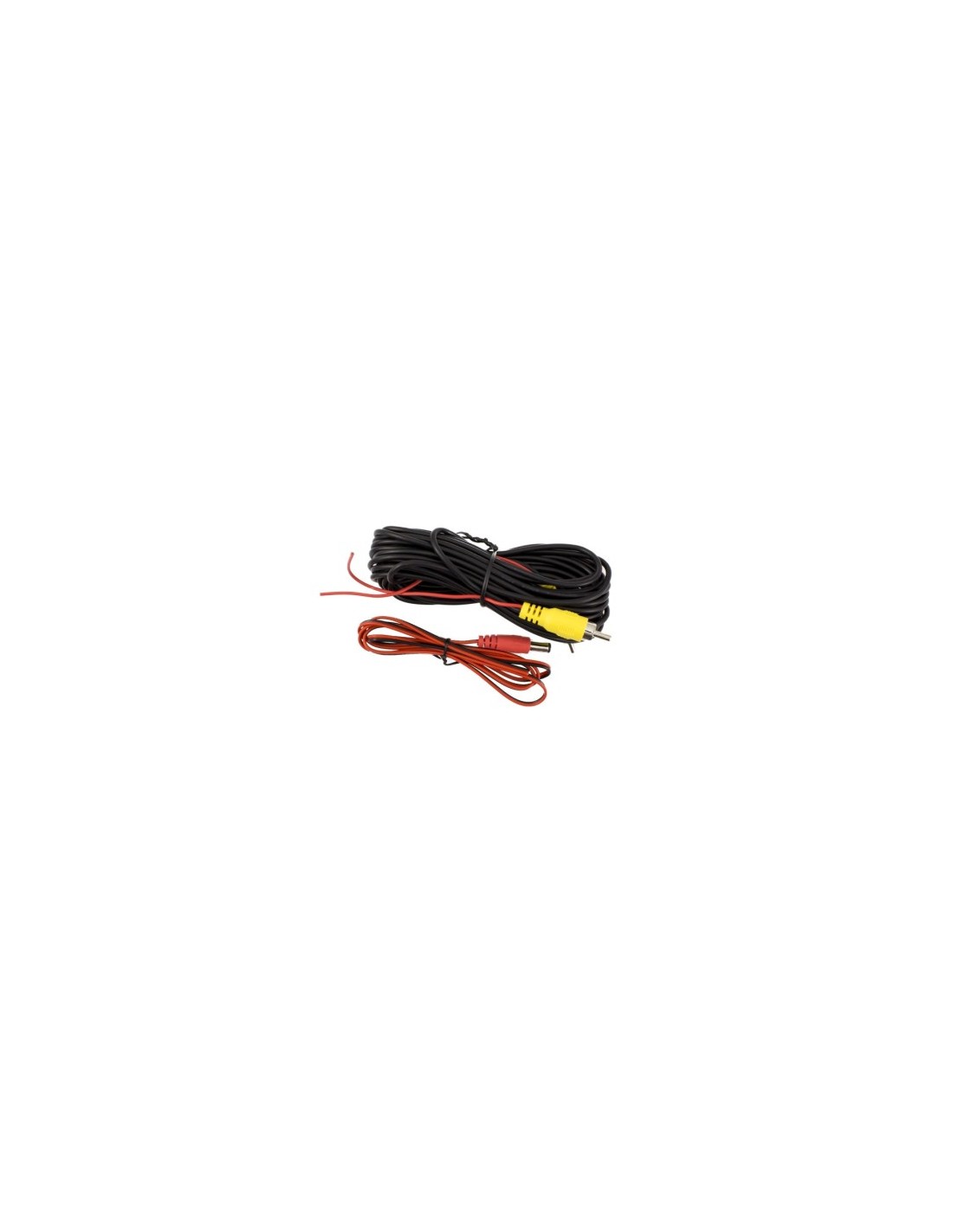

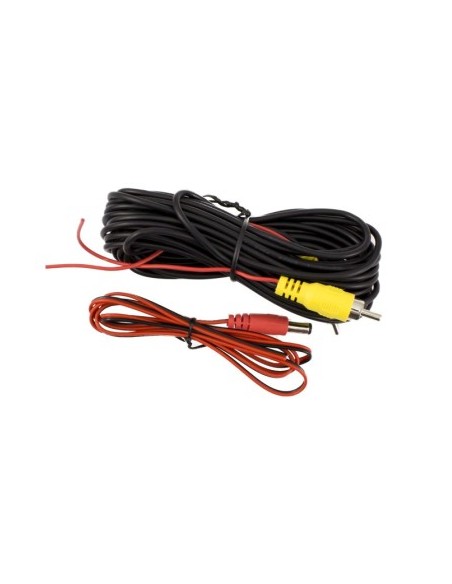

• 6m RCA cable
• Power cables
• Installation instructions

Recommendation

This 2 in 1 parking system is recommended for drivers who want to enhance safety during reversing maneuvers. It is a useful and efficient product that can reduce the risks of accidents and facilitate parking in tight spaces.
