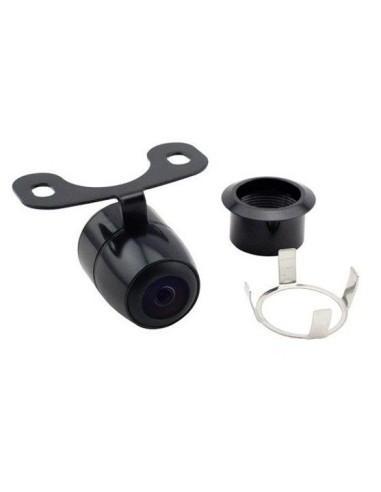

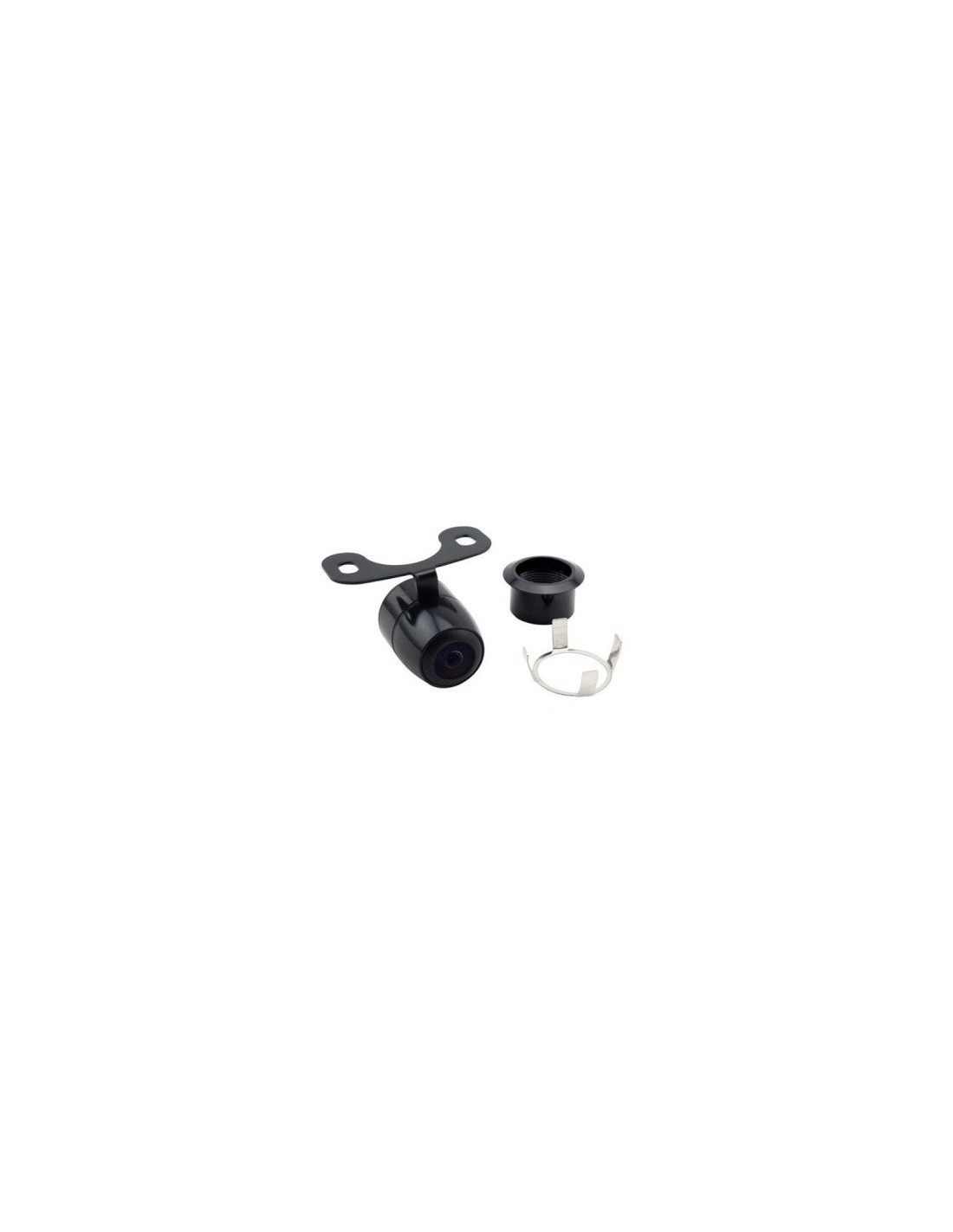

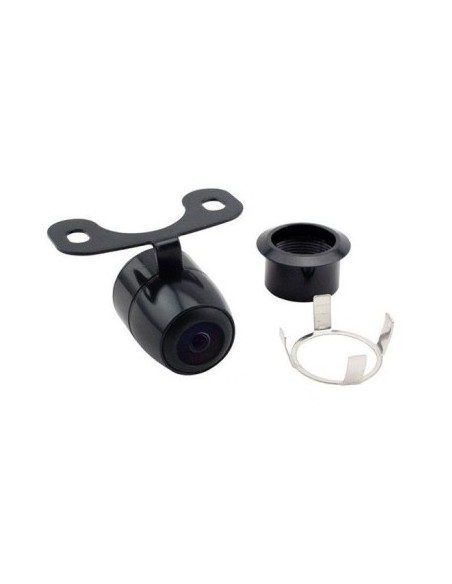

Front Car Camera C112F with 2 Mounting Systems

What is it and what is it used for?

The front car camera C112F is a device designed for monitoring traffic in front of the vehicle. This camera offers a viewing angle of 170 degrees, allowing for extensive coverage of the area in front of the car. It is equipped with a metal housing, shock-resistant, and is completely waterproof, having an IP67 protection class. The camera operates at a voltage of DC 12V and has an operating temperature range of -30 to +70 degrees Celsius.

Technical Specifications

• TV System: NTSC
• Image Sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Power Supply Voltage: DC 12V
• Operating Temperature: -30 - +70 degrees Celsius
• Water Resistance - IP67
• Shock Resistance
• Viewing Angle: 170 degrees
• Housing: metal, shock-resistant
• Design: small and compact
• Color: black
• Diameter: 16.5 mm
• Minimum Brightness: 0.1 Lux

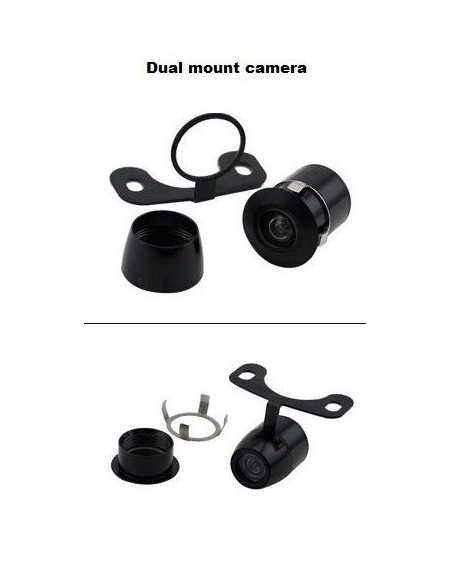

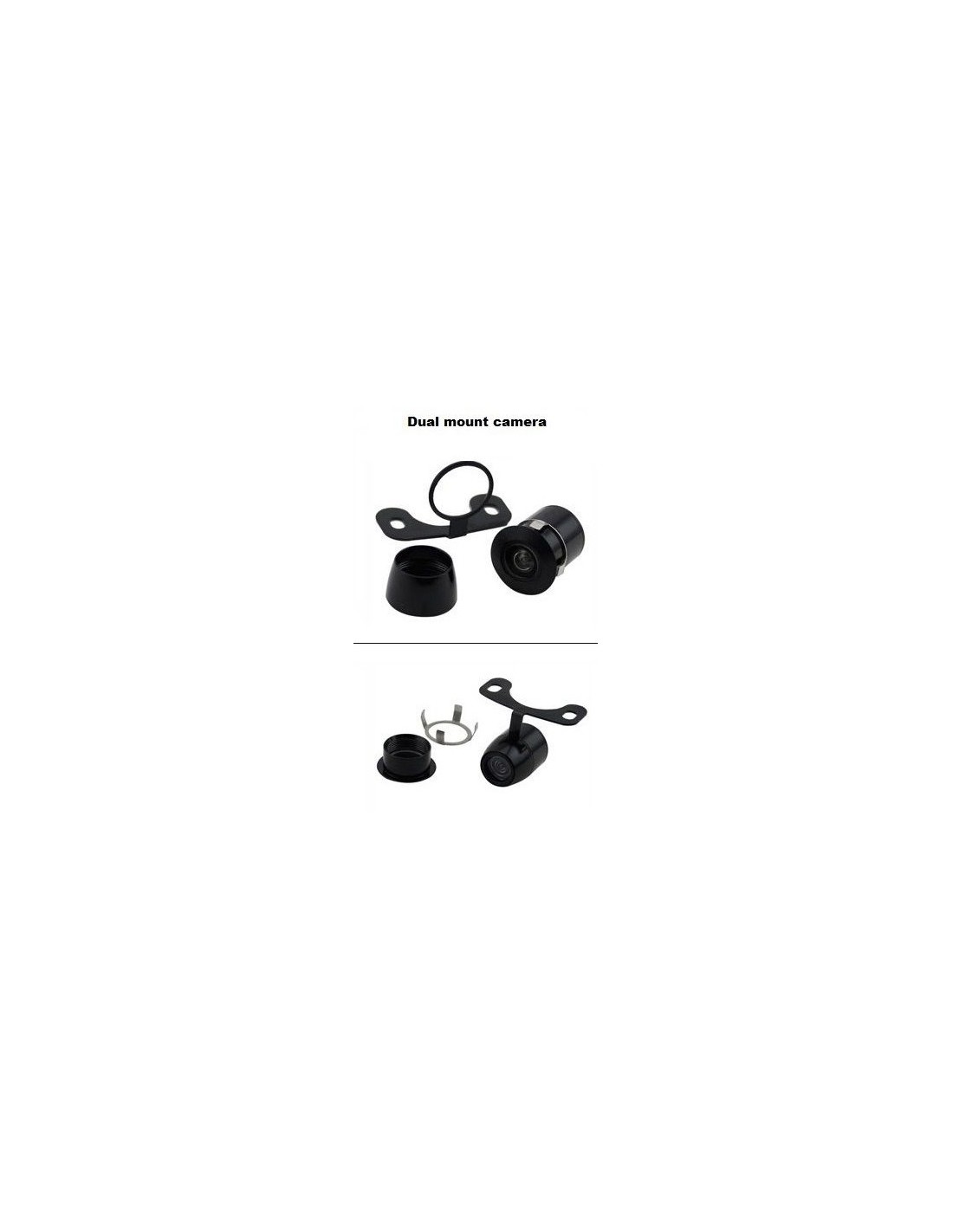

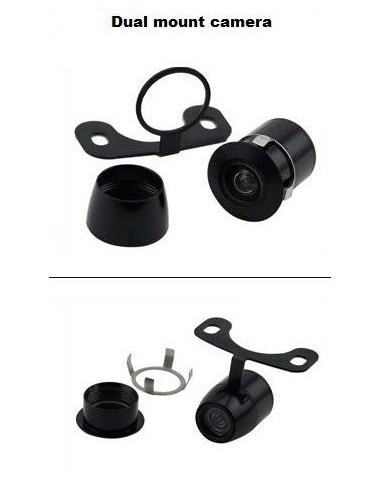

• Mounting: on the bar or with a metal bracket

In what situations is it used in practice?

Professional Use

• Monitoring traffic in commercial vehicle fleets.
• Recording incidents during deliveries.
• Assistance in parking vehicles in tight spaces.

Personal Use

• Recording trips on public roads.
• Capturing important moments during excursions.
• Ensuring clear visibility of the road in adverse weather conditions.

Compatibility

There is no clear data on compatibility.

Compatible Codes

No specific compatible codes are provided.

Instructions for Use

1. Ensure you have all the necessary components for installation.
2. Install the camera according to the instructions in the user manual.
3. Connect the video and power cables.
4. Test the camera to check for proper functioning.
5. If instructions are not included, it is recommended to have it installed at an authorized service.

What do customers appreciate about this type of product?

Customers appreciate the durability and waterproof nature of car cameras, making them suitable for various weather conditions. Additionally, the wide viewing angle is another positive aspect, allowing for extensive coverage of the area in front of the vehicle. The compact design and ease of installation are also features appreciated by users.

Frequently Asked Questions about this type of product

Question: Is the camera waterproof?

Answer: Yes, the camera has an IP67 protection class, making it completely waterproof.

Question: What is the viewing angle of the camera?

Answer: The camera offers a viewing angle of 170 degrees.

Question: What type of sensor does the camera have?

Answer: The camera is equipped with a Color CMOS image sensor.

Applicability and Use

The front car camera C112F is useful in various situations, both for professional and personal users. It can be used to record trips, monitor traffic, and ensure increased visibility while driving. It is a useful tool for the safety and comfort of drivers.

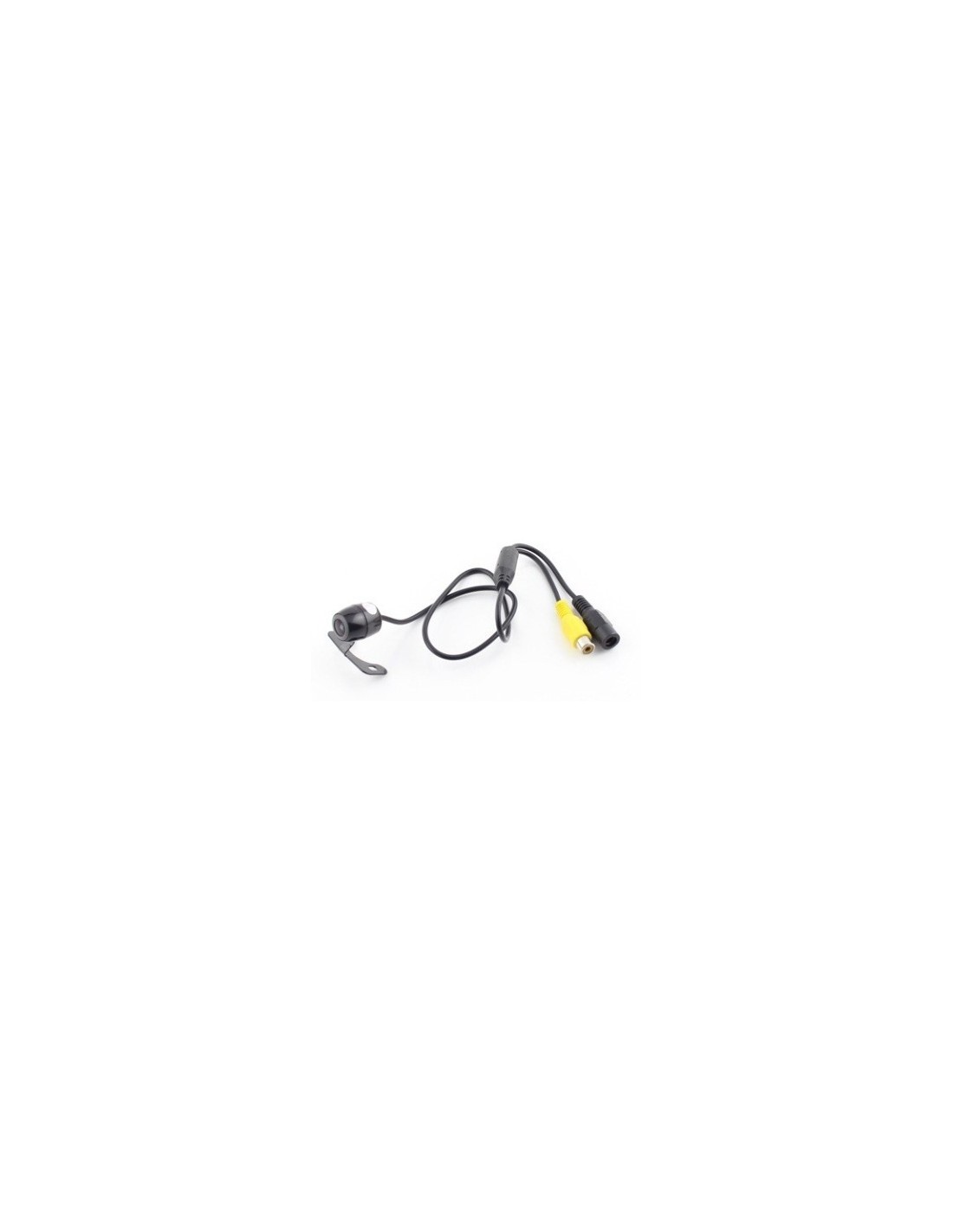

Contents of the Set

1. Front video camera
2. 6-meter RCA video cable
3. Power cable
4. Drilling bit with a diameter of 16.5 mm

Recommendation

The front car camera C112F is a practical choice for those who want to monitor traffic in front of the vehicle. With solid technical specifications and a durable design, this camera can provide an effective solution for road safety. It is recommended to be used under proper installation conditions to benefit from all its features.
