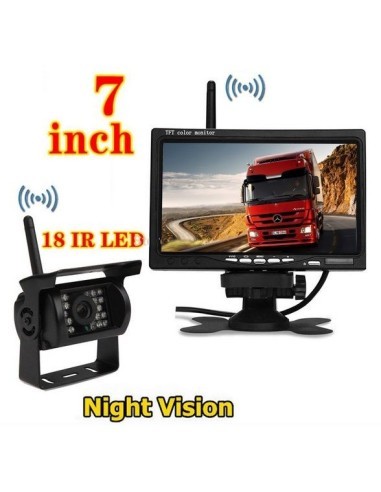

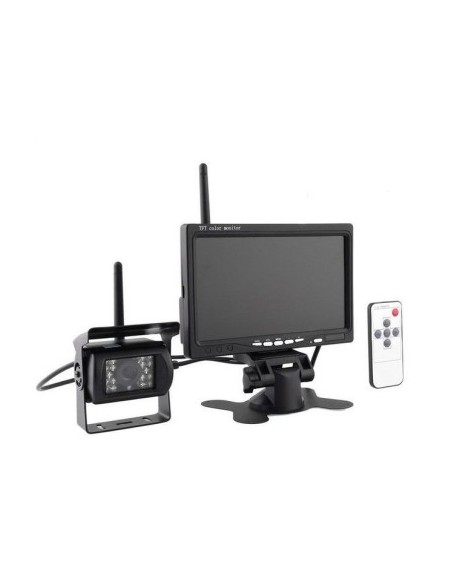

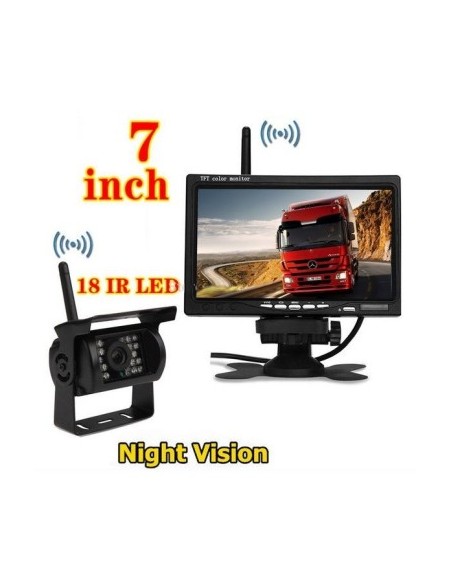

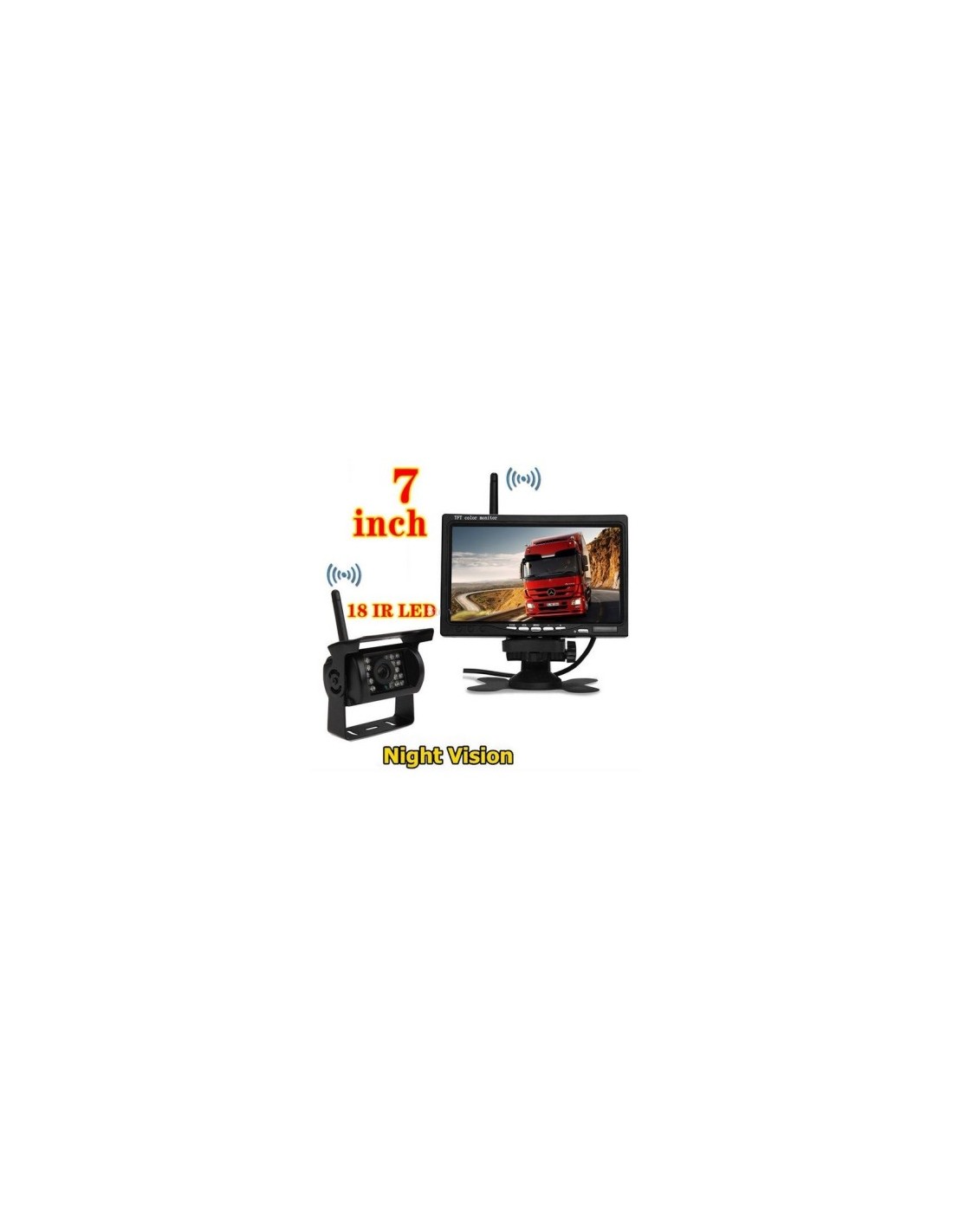

Wireless Reverse Kit with Camera and 7inch Display 12V-24V, for Trucks, Coaches, Buses

What is it and what is it used for?

The wireless reverse kit is a system designed for trucks, coaches, and buses, which allows for easier and safer maneuvering of the vehicle. It includes a camera and a 7-inch display, operating at 12V and 24V voltages. The wireless signal transmission distance is 15 - 40 m, allowing for flexible use in various traffic conditions.

Technical Specifications

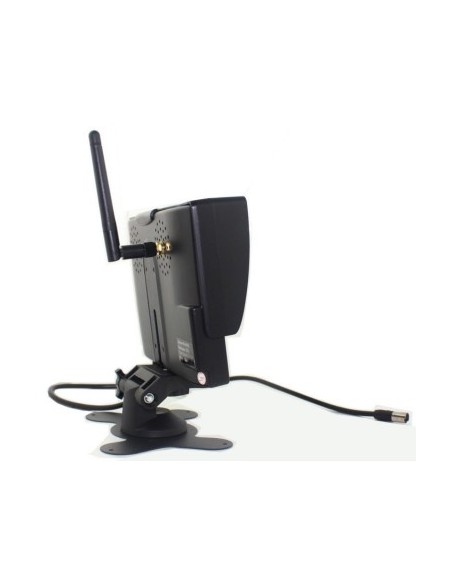

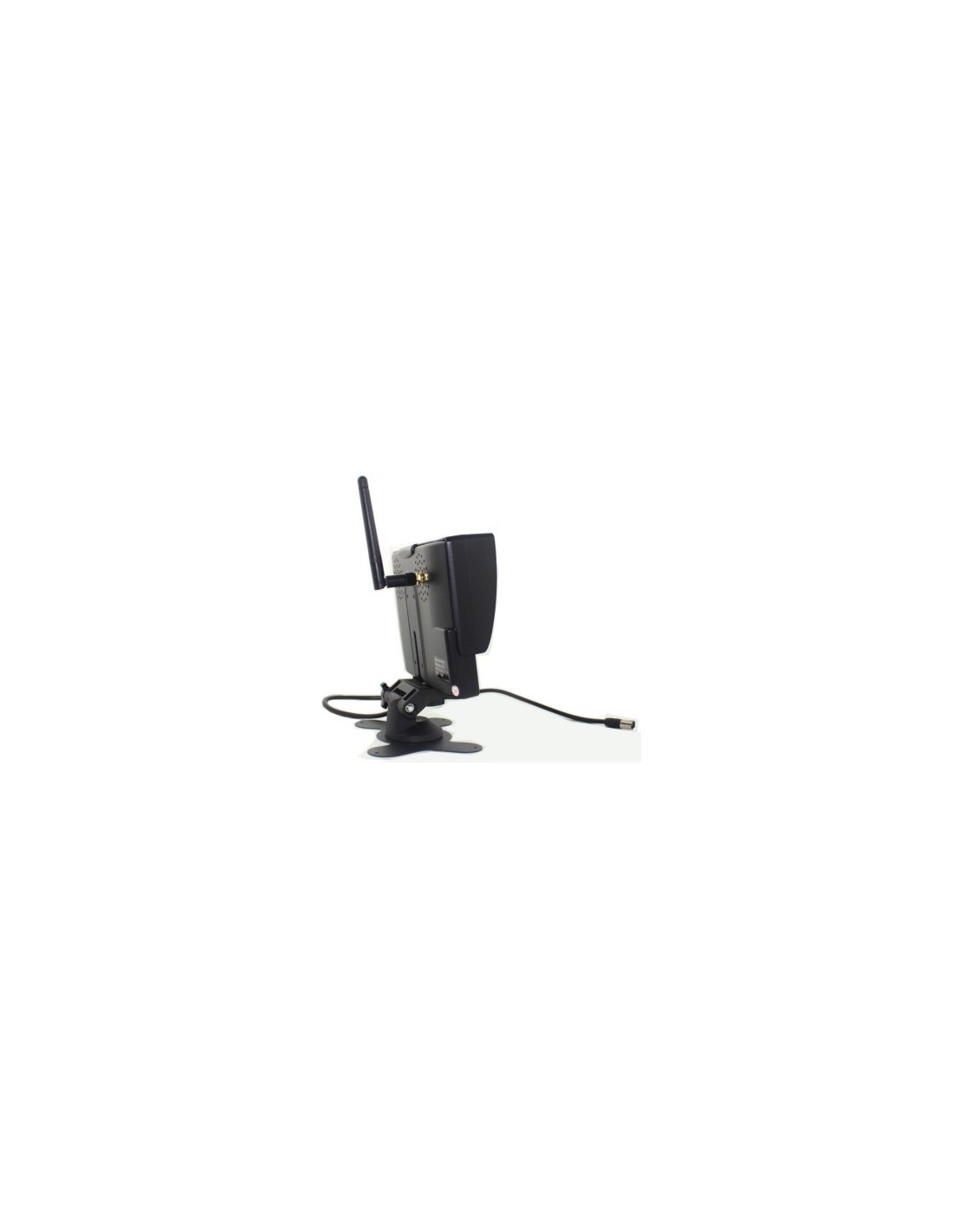

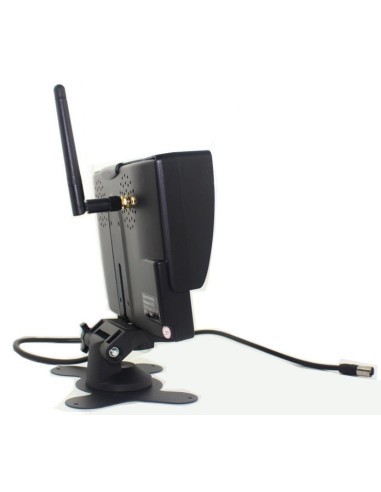

• Display power supply: DC 12V - 24V
• Display size: 7?”
• Display format: 16:9 (4:3)
• Display resolution: 480 x 272
• Video standard: PAL/NTSC
• Video inputs: 2 (camera input + secondary input)
• Display contrast: 300:1
• Display operating temperature: -30~+70

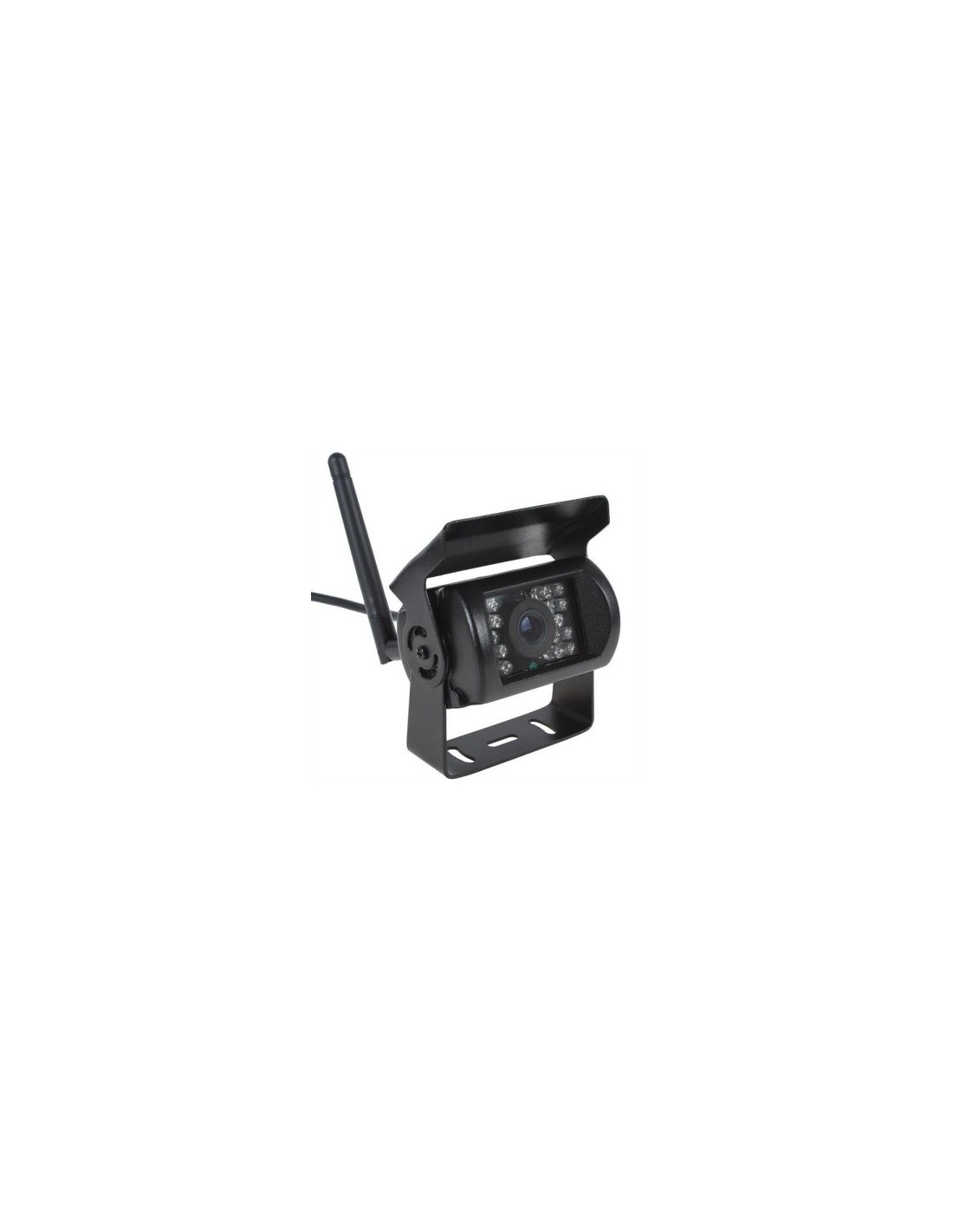

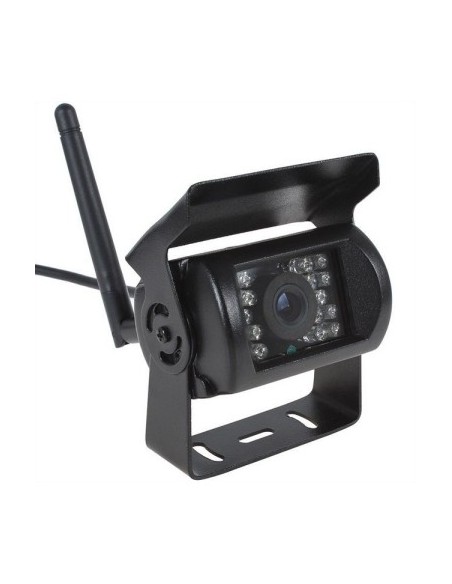

• Camera night vision: Infrared
• Camera viewing angle: 120 degrees
• Camera housing: metal, shock-resistant
• Camera design: small and compact
• Camera protection: completely waterproof (Protection Class IP67)
• Camera bracket: metal mounting
• Camera installation: simple
• Camera color: black
• Camera minimum brightness: 0 Lux
• Camera operation: both at 12V and 24V
• Camera TV system: NTSC
• Camera image sensor: Color CMOS
• Camera pixels: 688x488
• Camera resolution: 420 TV Lines
• Camera power supply voltage: DC 12V-24V
• Camera operating temperature: -30 - +70 degrees Celsius
• Camera waterproof resistance: IP67, shock-resistant

In what situations is it used in practice?

Professional Use

• Ideal for transporting heavy goods, where precise maneuvering is essential.
• Used in coaches to facilitate parking and maneuvering in tight spaces.
• Used in truck fleets to reduce accident risks during maneuvering.

Personal Use

• Used by drivers of large vehicles to enhance visibility while reversing.
• Ideal for users who want to install a parking assistance system in their personal vehicles.
• Allows for better monitoring of areas behind the vehicle, reducing collision risks.

Compatibility

No clear data in Existing Description.

Compatible Codes

No clear data in Existing Description.

Instructions for Use

1. Install the reverse camera according to the instructions in the manual.
2. Connect the display to the 12V or 24V power source.
3. Ensure that the wireless signal is activated to allow communication between the camera and the display.
4. If instructions are not included, it is recommended to install in an authorized service.

What do customers appreciate about this type of product?

Customers generally appreciate wireless reverse systems for their ease of use and installation. Features such as night vision and waterproof resistance are highly valued, as they provide reliable use in various weather conditions. The compactness and robust design of the cameras are also important factors for users.

Frequently Asked Questions about this type of product

Question: What is the maximum signal transmission distance?

Answer: The wireless signal transmission distance is 15 - 40 m.

Question: Is the camera waterproof?

Answer: Yes, the camera has an IP67 protection class, making it completely waterproof.

Question: What voltage does the display require?

Answer: The display operates at 12V and 24V voltages.

Applicability and Use

This wireless reverse kit is useful in various situations, especially for commercial and transport vehicles. It is ideal for parking maneuvers and ensuring enhanced visibility while reversing. Its use is recommended in varied environments, from crowded cities to rural roads.

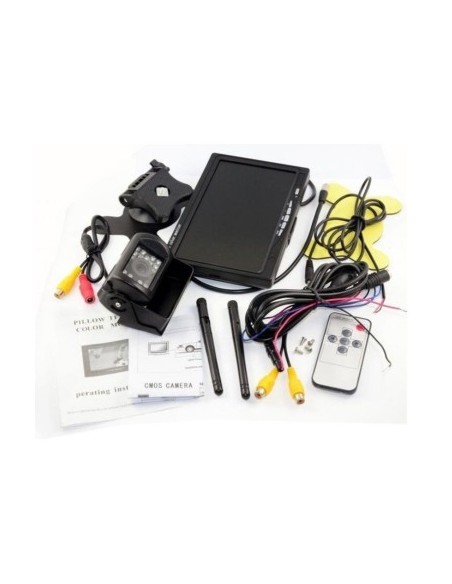

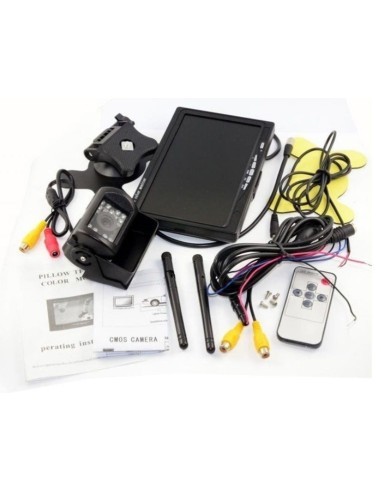

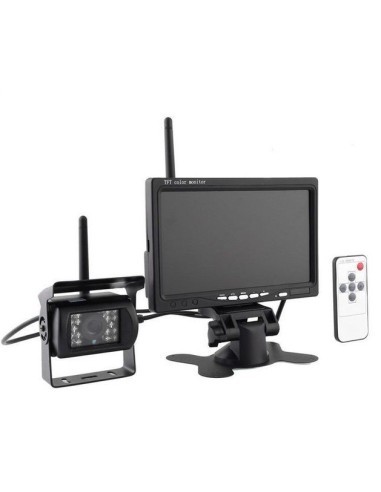

Contents of the Kit

1. Wireless reverse camera with infrared

2. Wireless 7” LCD display

3. Power cables

4. Remote control

Recommendation

This wireless reverse kit is a practical solution for drivers of large vehicles who want to improve safety and maneuverability. It is recommended to be installed by professionals to ensure optimal operation and correct integration into the vehicle's system.
