Infrared Rearview Camera

What is it and what is it used for?

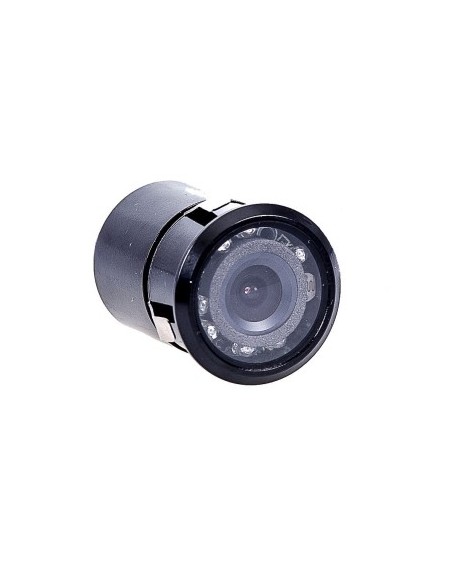

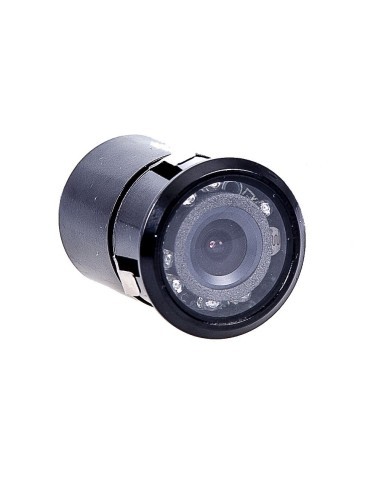

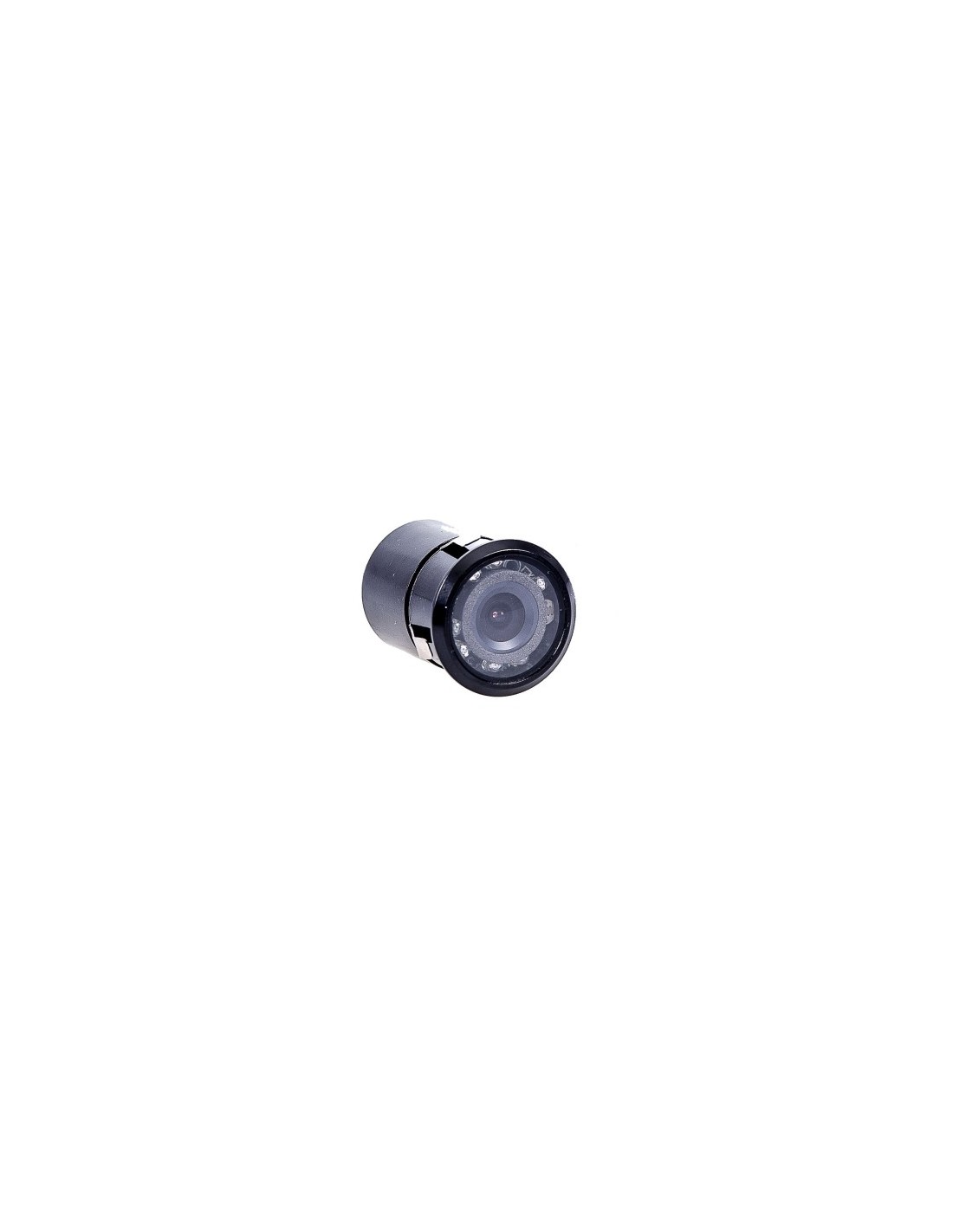

The infrared rearview camera is a device designed to assist in maneuvering the vehicle in tight spaces. This camera provides clear visibility in low light conditions, thanks to its infrared night vision technology. With a viewing angle of 170 degrees, this camera allows for extensive monitoring of the area behind the vehicle. It is equipped with a shock-resistant metal housing and is completely waterproof, having an IP67 protection rating.

Technical Specifications

• TV System: NTSC
• Image Sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Power Supply Voltage: DC 12V
• Operating Temperature: -30 - +70 degrees Celsius
• Water Resistance: IP67
• Shock Resistance
• Viewing Angle: 170 degrees
• Diameter: 26 mm
• Minimum Brightness: 0 Lux
• Color: black
• Design: small and compact
• Installation: simple

In what situations is it used in practice?

Professional Use

• Used in commercial vehicle fleets to facilitate maneuvering in tight spaces.
• Used by transport companies to ensure increased visibility during parking.
• Frequently installed on delivery vehicles to prevent accidents during loading and unloading operations.

Personal Use

• Used by car drivers to avoid obstacles while parking.
• Ideal for family vehicles, providing increased safety during parking maneuvers.
• Used by beginner drivers to boost confidence during reverse maneuvers.

Compatibility

No compatibility information is available.

Compatible Codes

No compatible codes are available.

Instructions for Use

1. Ensure the vehicle is turned off and safely parked before installation.
2. Mount the camera in the desired location, ensuring the viewing angle is respected.
3. Connect the RCA video cable and power cable according to the instructions.
4. If instructions are not included, it is recommended to have the installation done by an authorized service.

What do customers appreciate about this type of product?

Customers generally appreciate the clarity of the image provided by infrared cameras, especially in low light conditions. Additionally, durability and water resistance are highly valued features, ensuring long-term use. The compact design and ease of installation are also positive aspects mentioned by users.

Frequently Asked Questions about this type of product

Question: Does the camera work in rainy conditions?

Answer: Yes, the camera is completely waterproof, with an IP67 protection rating.

Question: Is an external power source required?

Answer: Yes, the camera requires a DC 12V power supply.

Question: What is the viewing angle of the camera?

Answer: The camera has a viewing angle of 170 degrees, providing a wide perspective of the area behind the vehicle.

Applicability and Use

The infrared rearview camera is useful in various parking and maneuvering situations, both in urban environments and in less trafficked areas. It is a valuable tool for drivers who want to avoid accidents and maneuver easily in tight spaces.

Set Contents

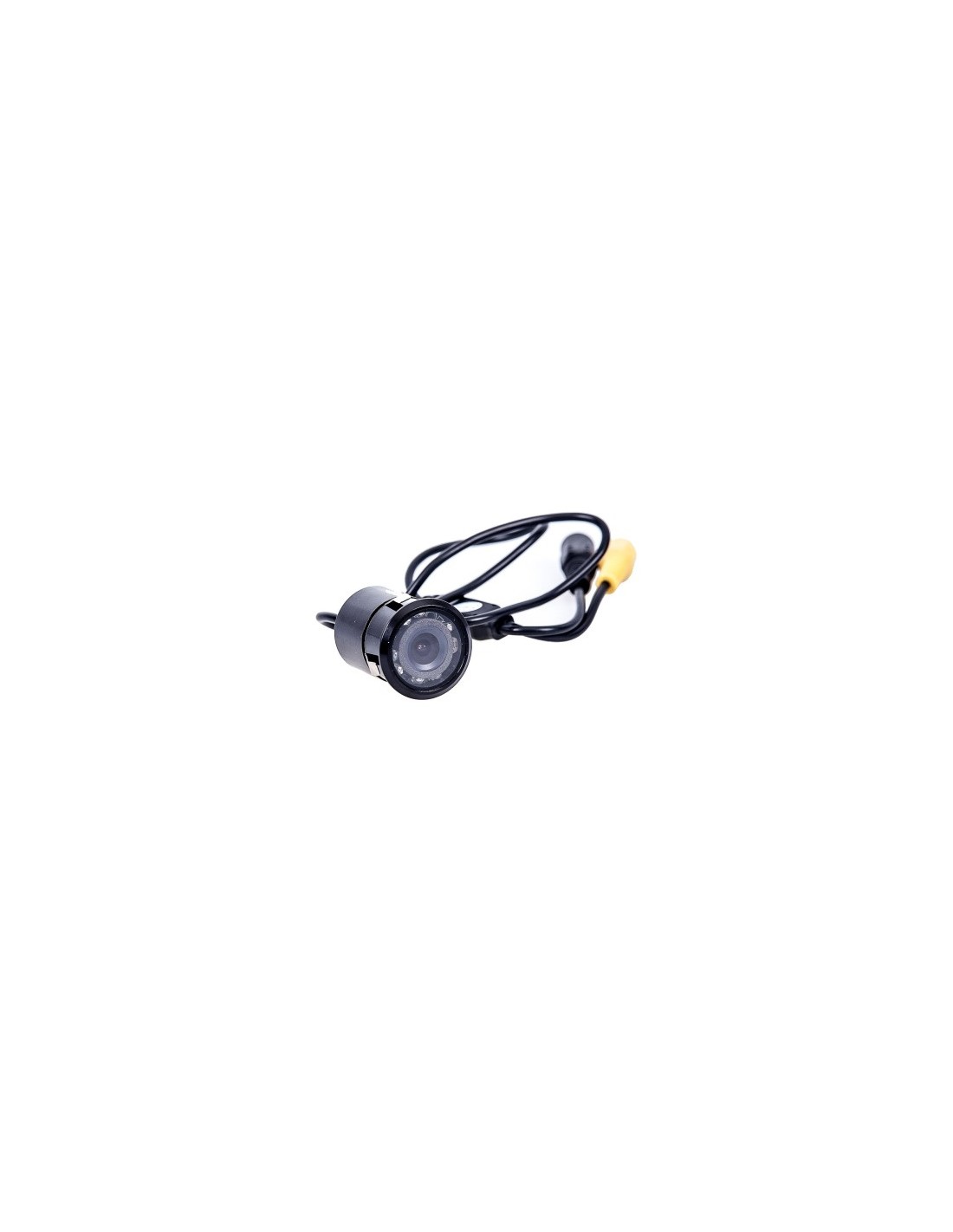

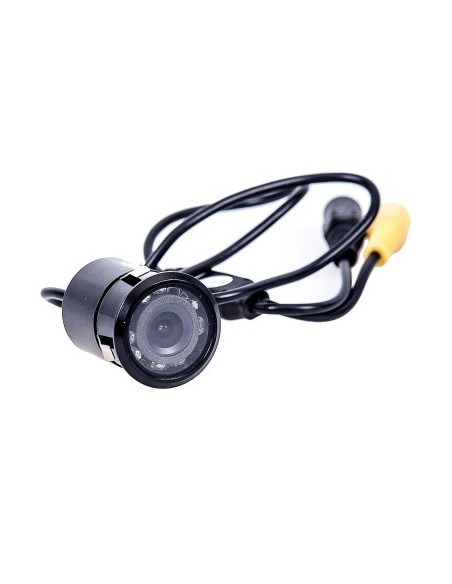

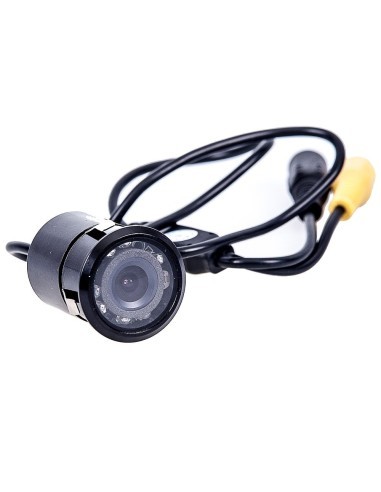

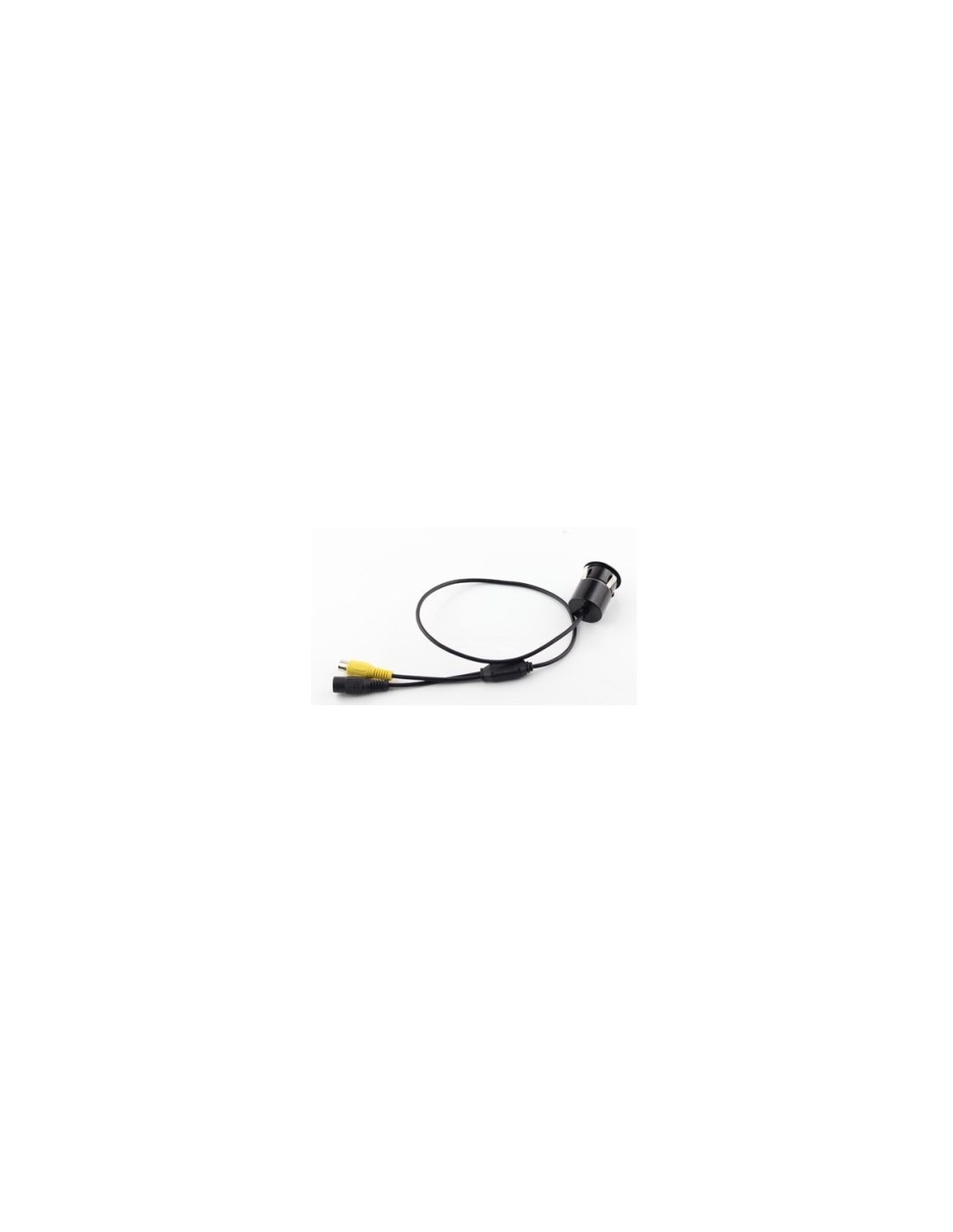

The set contents include: rearview camera, 6-meter RCA video cable, power cable, and a drill bit with a diameter of 26 mm.

Recommendation

It is recommended that the camera installation be performed by a specialist to ensure correct and efficient operation. Periodically check the camera's condition to ensure it operates optimally in all conditions.
