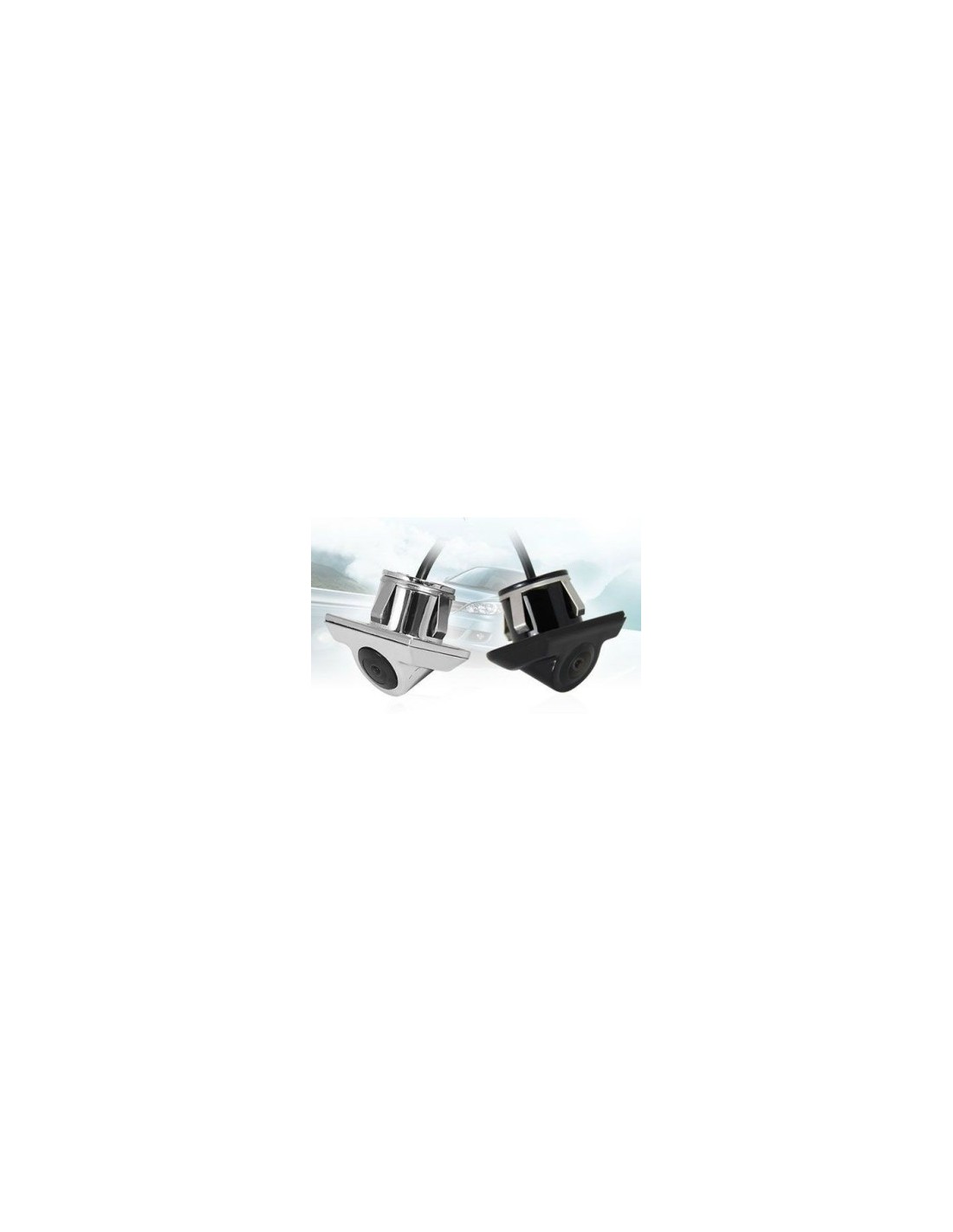

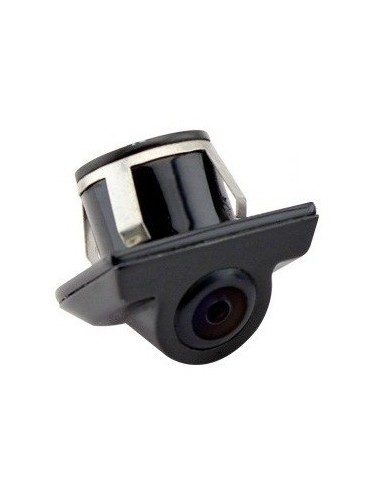

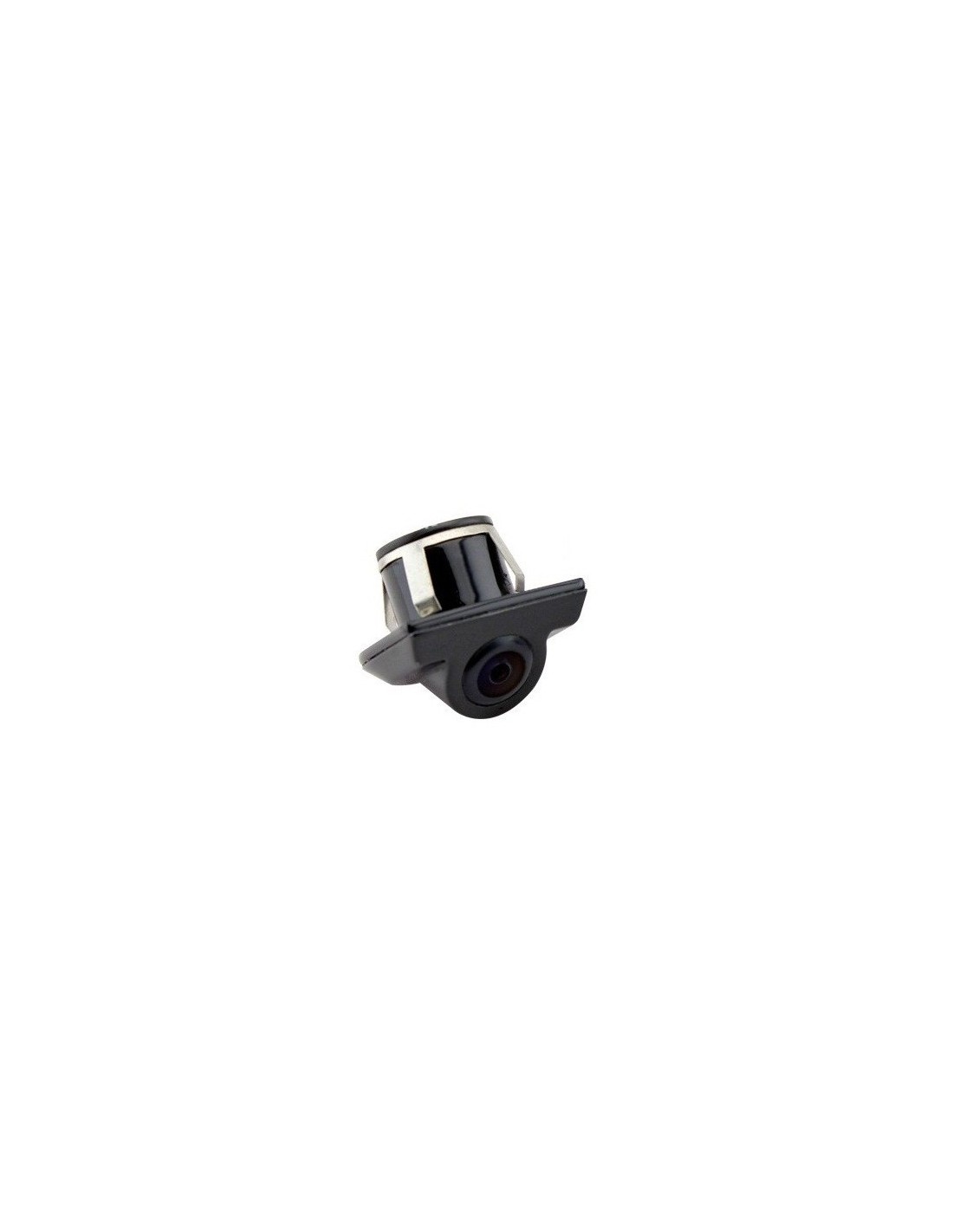

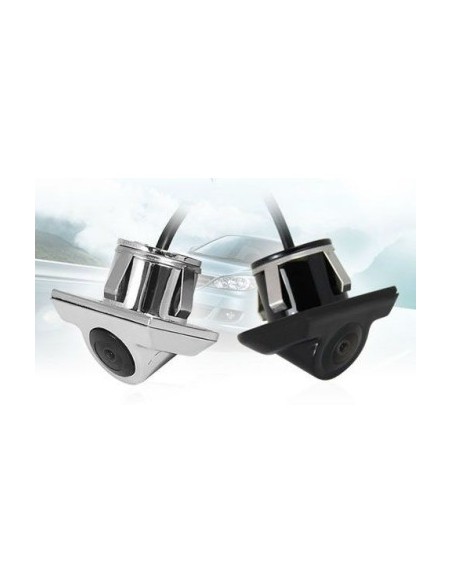

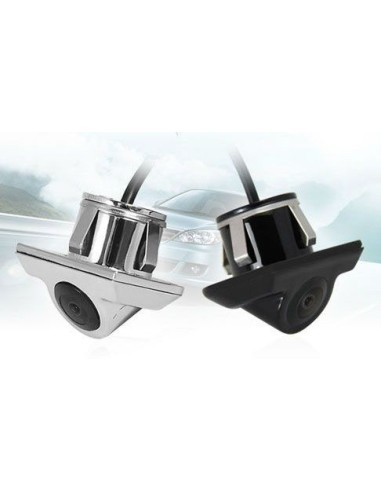

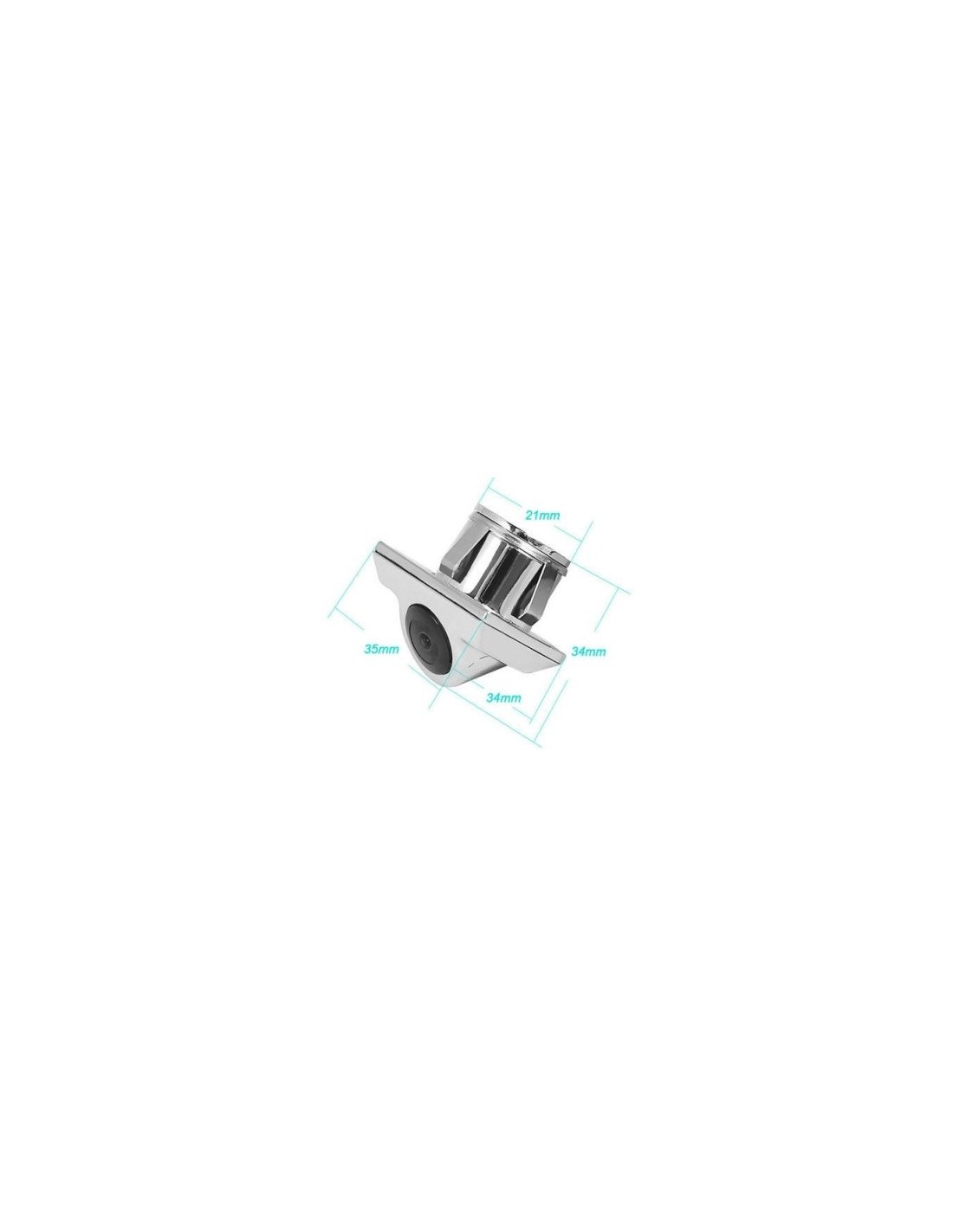

Rear View Camera

What is it and what is it used for?

The rear view camera is a device designed to assist in maneuvering vehicles by providing a clear view of the area behind. This camera offers a viewing angle of 170 degrees, allowing the driver to observe obstacles and avoid accidents. It is completely waterproof, with an IP67 protection class, making it suitable for use in various weather conditions.

Technical Specifications

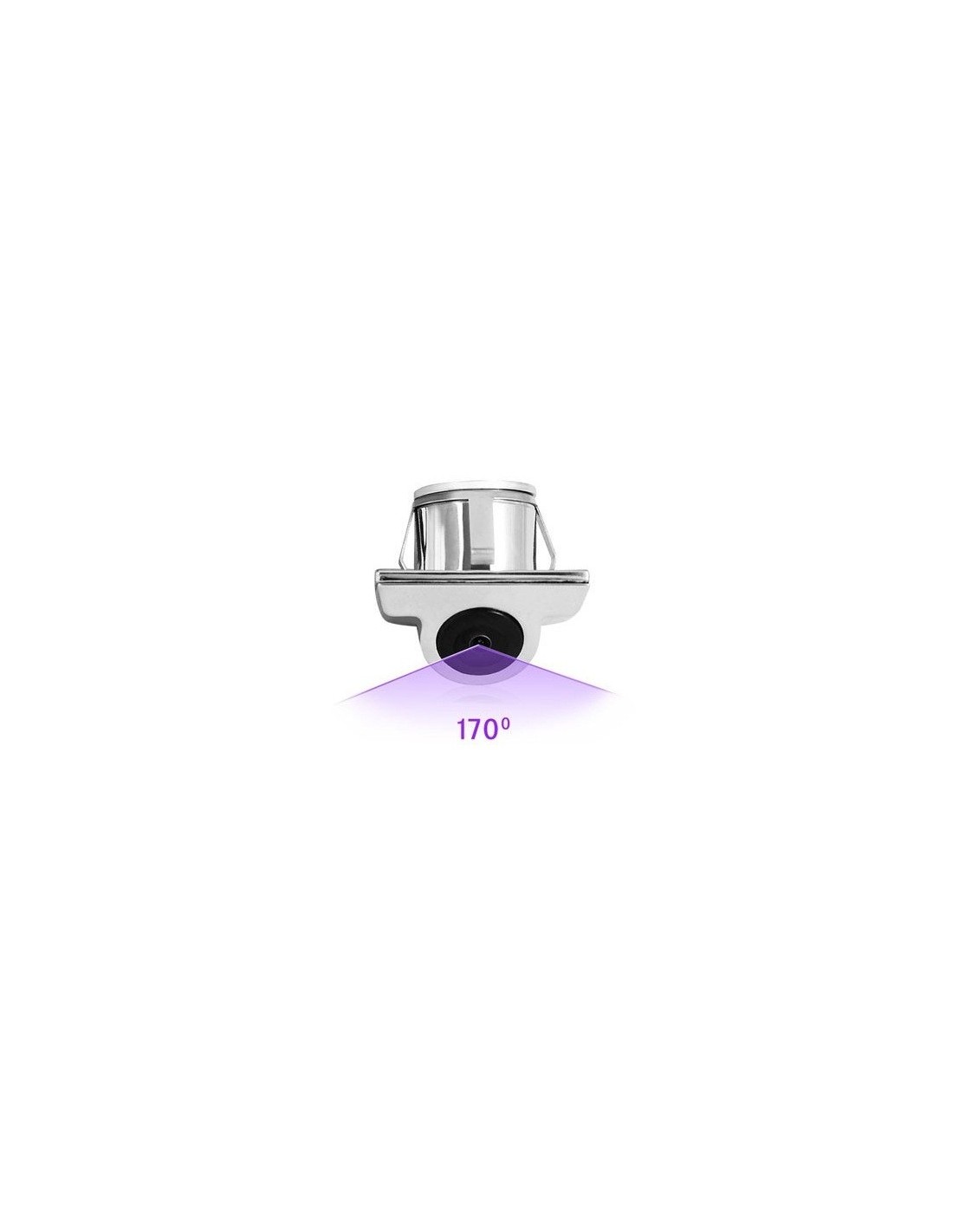

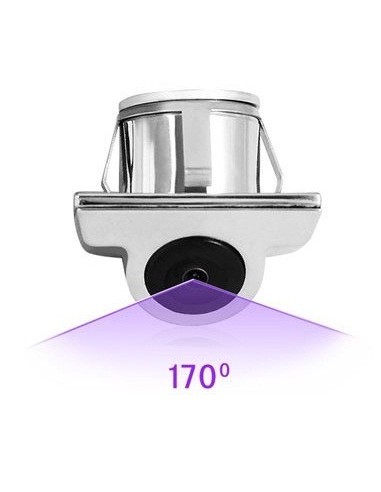

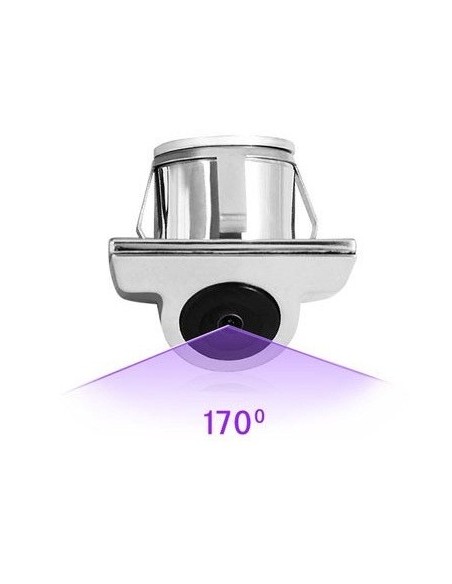

• Viewing angle: 170 degrees
• Shock-resistant casing

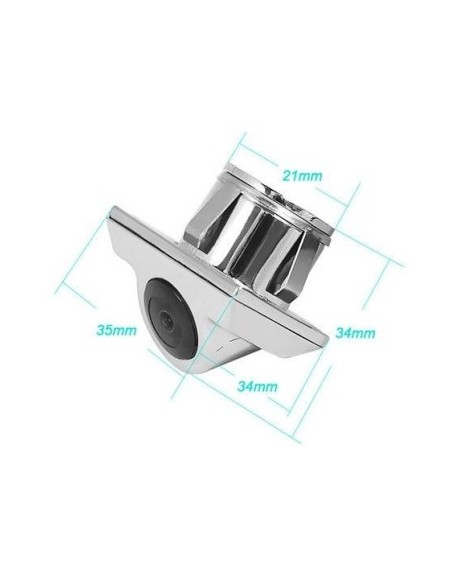

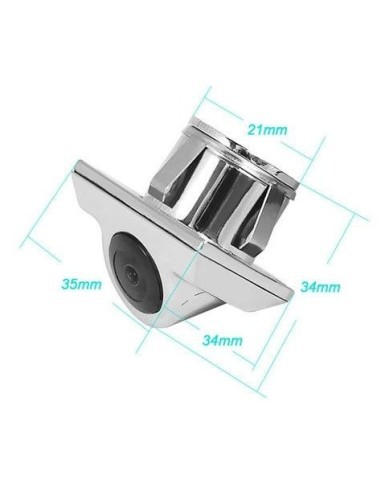

• Small and compact design
• Fully waterproof (IP67 protection class)
• Easy installation

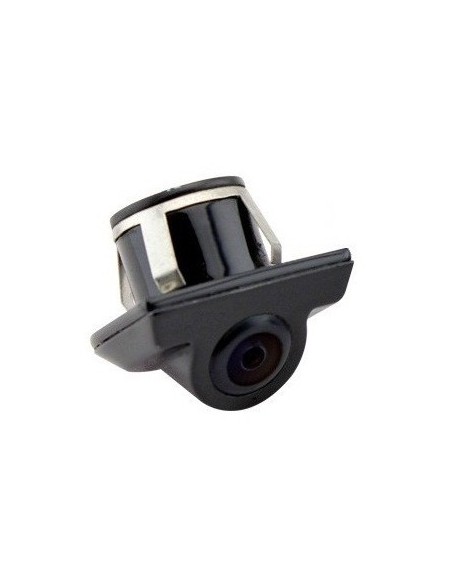

• Color: black
• Minimum brightness: 0.1 Lux
• TV System: NTSC
• Image sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Power supply voltage: DC 12V
• Operating temperature: -30 - +70 degrees Celsius
• Water resistance - IP67, Shock resistance

In what situations is it used in practice?

Professional use

• Used in car fleets for monitoring the rear of the vehicle.
• Frequently installed on commercial vehicles for deliveries and transport.
• Used in parking lots to facilitate maneuvering large vehicles.

Personal use

• Installed on personal cars to assist with parking in tight spaces.
• Used by novice drivers to increase safety while maneuvering.
• Used to observe obstacles while reversing.

Compatibility

No compatibility information is available.

Compatible Codes

No compatible codes are available.

Instructions for Use

1. Ensure you have all the necessary components for installation.
2. Connect the RCA video cable to the camera and to the car monitor.
3. Connect the power cable to the vehicle's power source.
4. Check the camera's functionality before use.
5. If detailed instructions are not included, installation by an authorized service is recommended.

What do customers appreciate about this type of product?

Customers generally appreciate the clarity of the image provided by rear view cameras, which contributes to a safer driving experience. Additionally, water and shock resistance is an important aspect, ensuring functionality in various conditions. Easy installation and compact design are also strong points mentioned by users.

Frequently Asked Questions about this type of product

Question: What is the viewing angle of the camera?

Answer: The camera has a viewing angle of 170 degrees, providing a wide view of the area behind.

Question: Is the camera waterproof?

Answer: Yes, the camera is completely waterproof, with an IP67 protection class.

Question: What voltage does the camera require for operation?

Answer: The camera operates at a voltage of DC 12V.

Applicability and Use

The rear view camera is primarily used to facilitate vehicle maneuvering, both in professional and personal environments. It helps prevent accidents by providing a clear view of the area behind the vehicle.

Contents of the Set

1. Rear view camera
2. RCA video cable with a length of 6 meters
3. Power cable

Recommendation

It is recommended that the installation of the camera be carried out by a specialist to ensure proper and efficient operation. Periodically check the condition of the camera to ensure it is functioning optimally.
