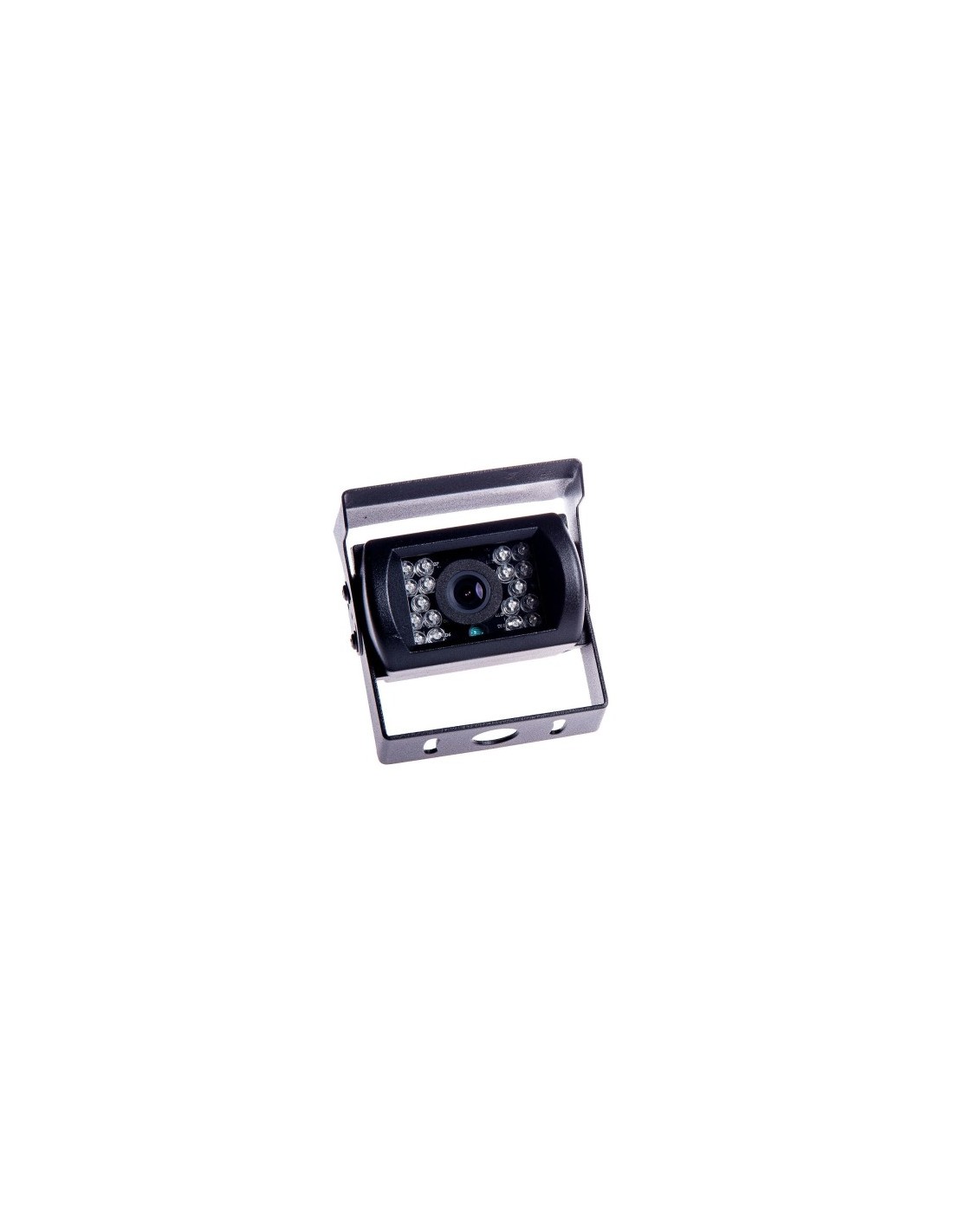

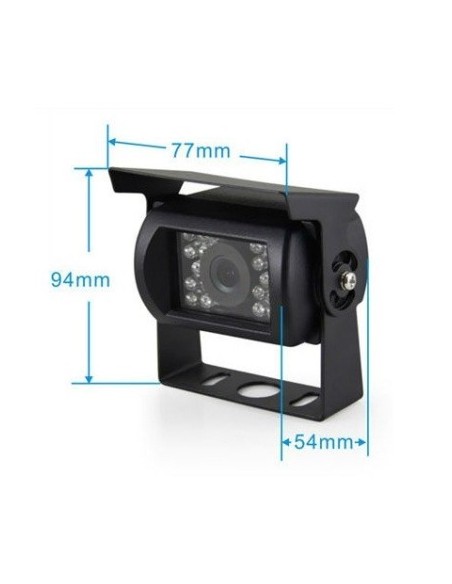

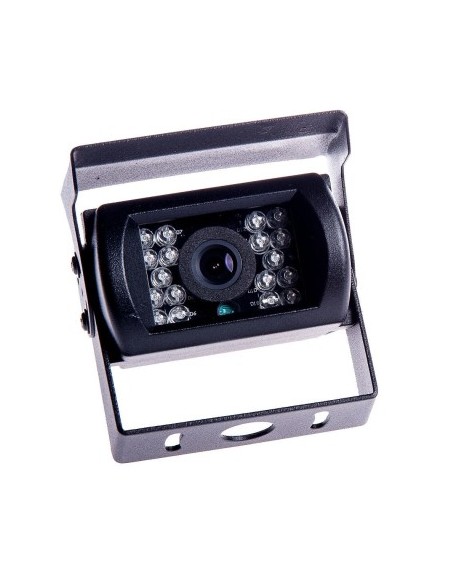

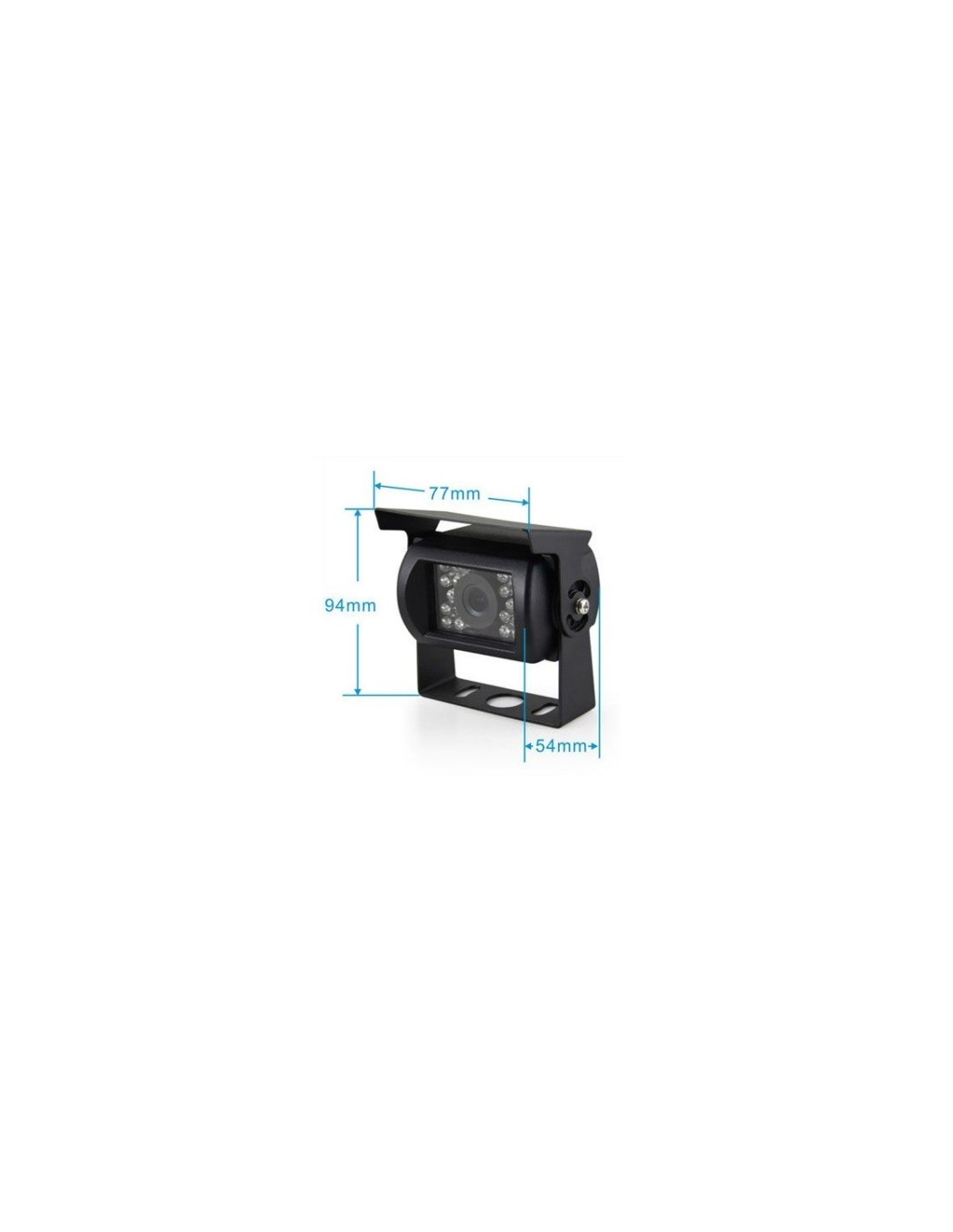

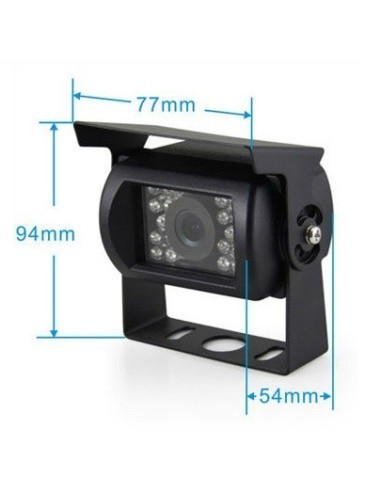

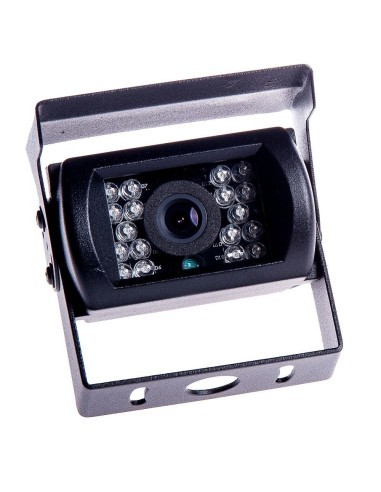

Infrared Reversing Camera 12V - 24V for Trucks, Coaches, Buses

What is it and what is it used for?

The infrared reversing camera is a device designed for large vehicles such as trucks, coaches, and buses. This camera operates at a voltage of 12V-24V and provides excellent visibility in low light conditions due to night vision technology. With a viewing angle of 170 degrees, this camera allows for efficient monitoring of the area behind the vehicle, contributing to safety during parking maneuvers.

Technical Specifications

• TV System: NTSC
• Image Sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Power Supply Voltage: DC 12V-24V
• Operating Temperature: -30 - +70 degrees Celsius

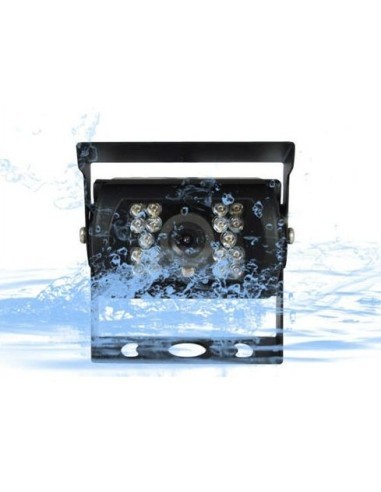

• Water Resistance - IP67
• Shock Resistant
• Viewing Angle: 170 degrees
• Metal housing, shock resistant
• Small and compact design

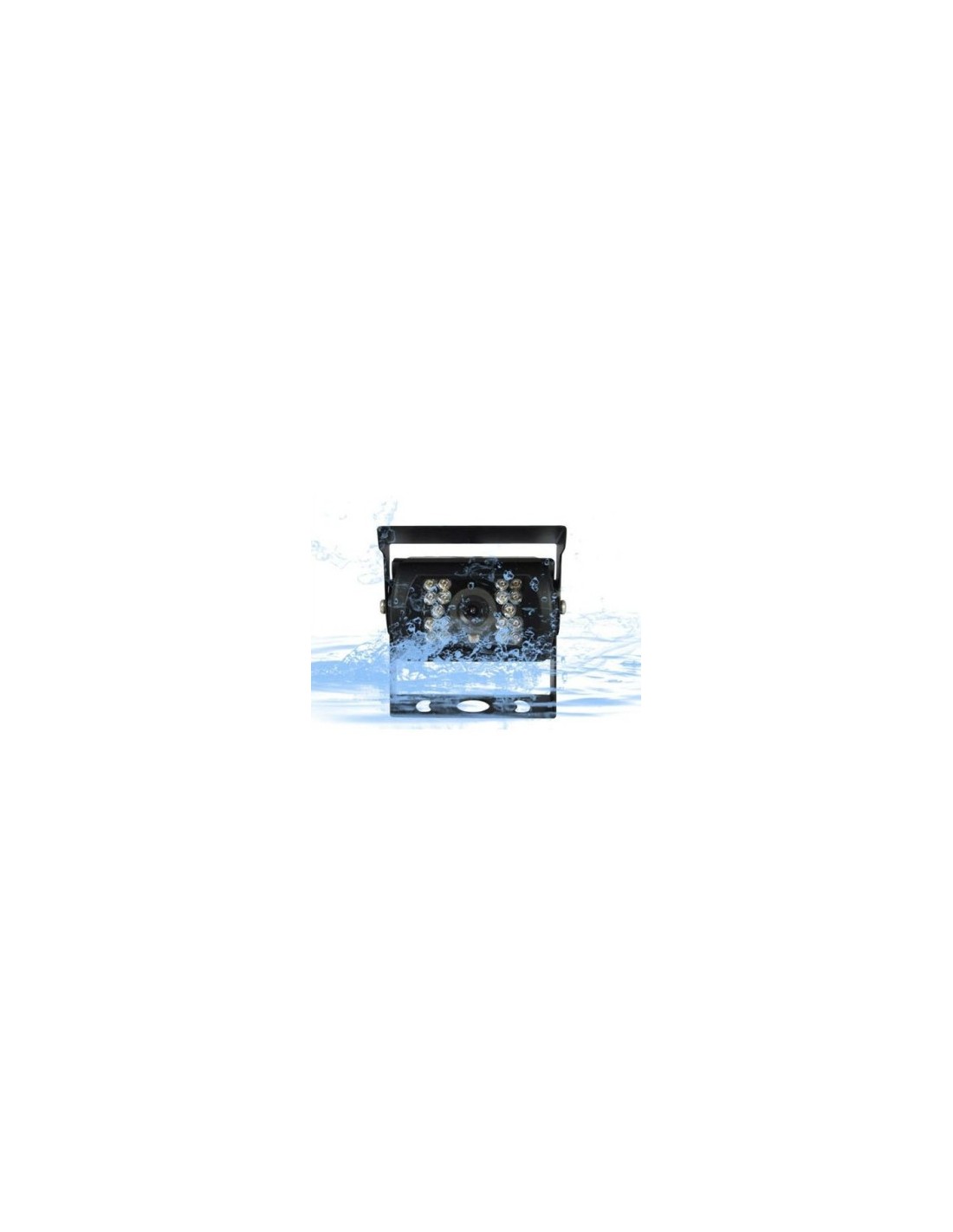

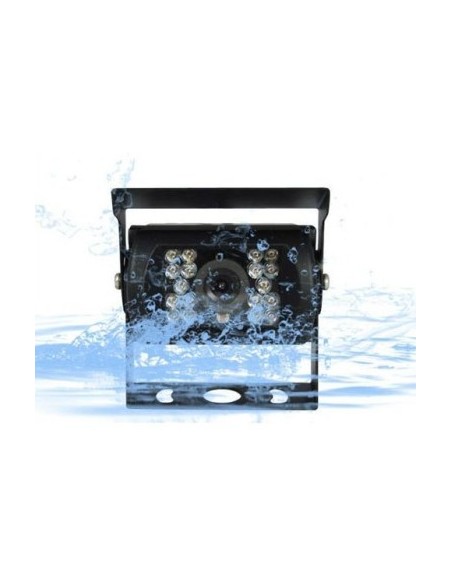

• Fully waterproof (Protection Class IP67)
• Metal mounting bracket
• Easy installation
• Color: black
• Minimum brightness: 0 Lux

In what situations is it used in practice?

Professional Use

• Frequently used in freight transport to ensure safe vehicle handling.
• Ideal for coaches and buses, helping drivers avoid obstacles during parking.
• Used in commercial fleets to monitor and record vehicle activity.

Personal Use

• Can be installed on personal vehicles to facilitate parking in tight spaces.
• Used by taxi drivers to provide better visibility during parking maneuvers.
• Used by owners of heavy-duty vehicles to ensure increased visibility during loading and unloading operations.

Compatibility

No clear compatibility data is available.

Compatible Codes

No compatible codes are available.

Instructions for Use

1. Ensure you have all the necessary components for installation.

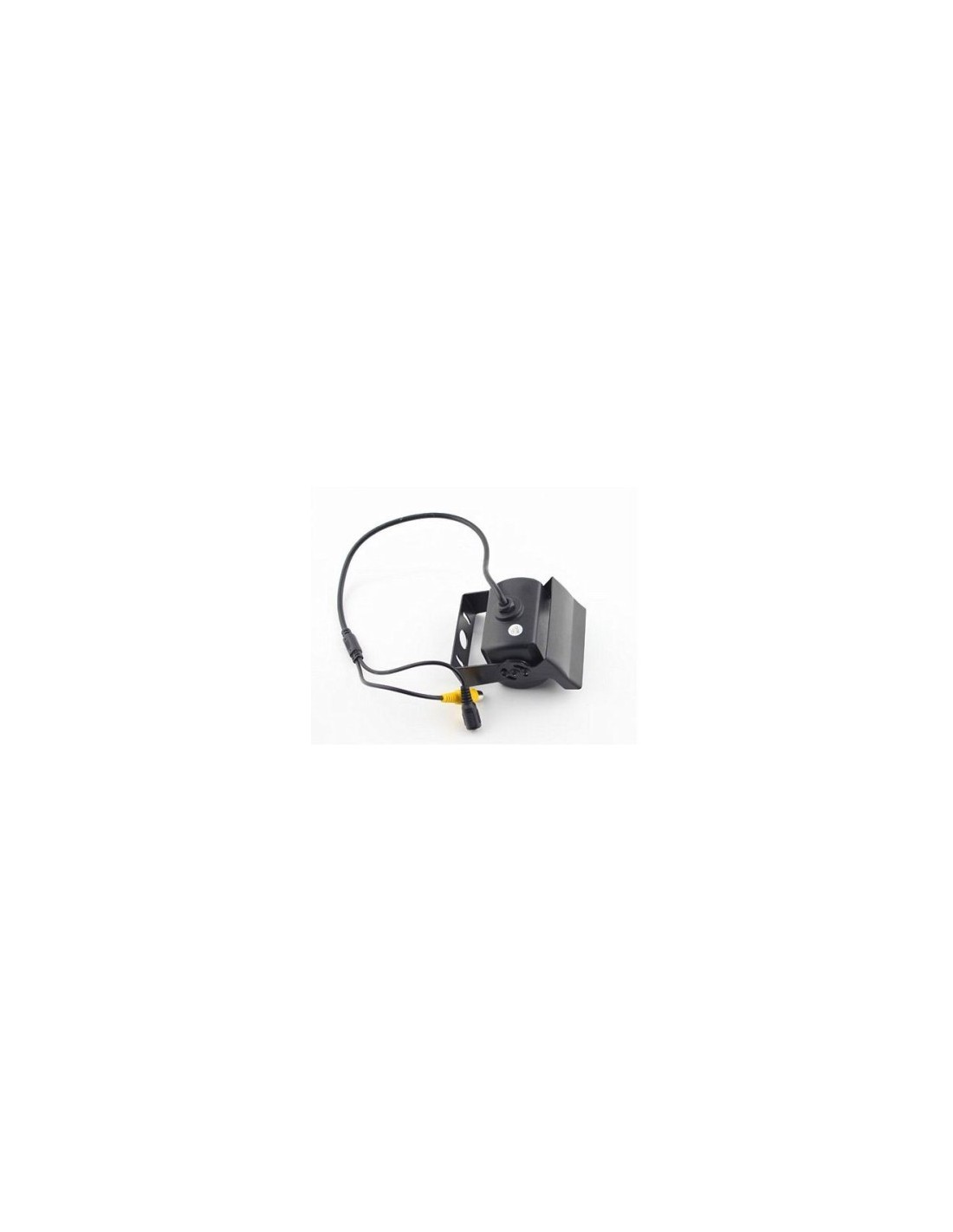

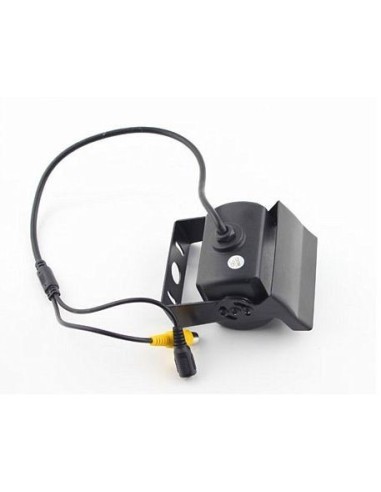

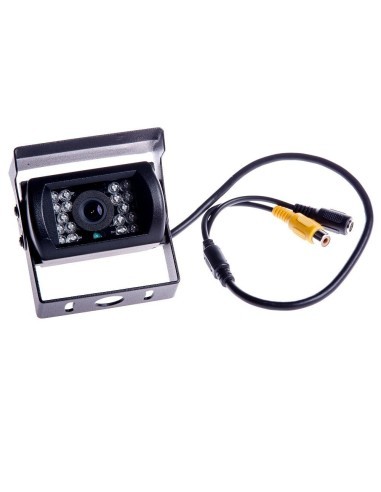

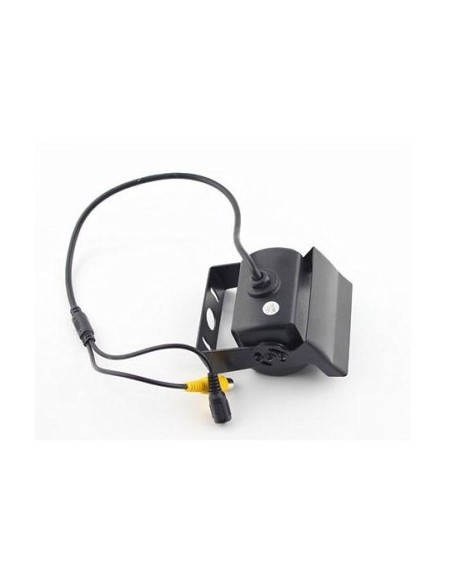

2. Connect the RCA video cable to the camera and the monitor.
3. Connect the power cable to the appropriate power source (12V or 24V).

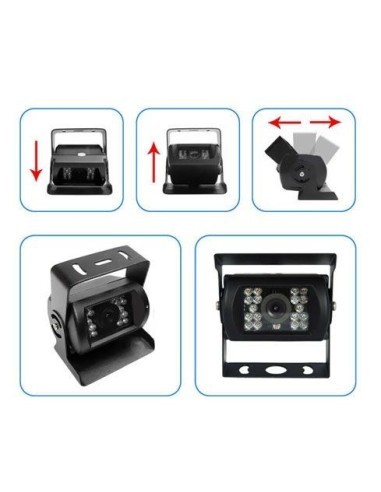

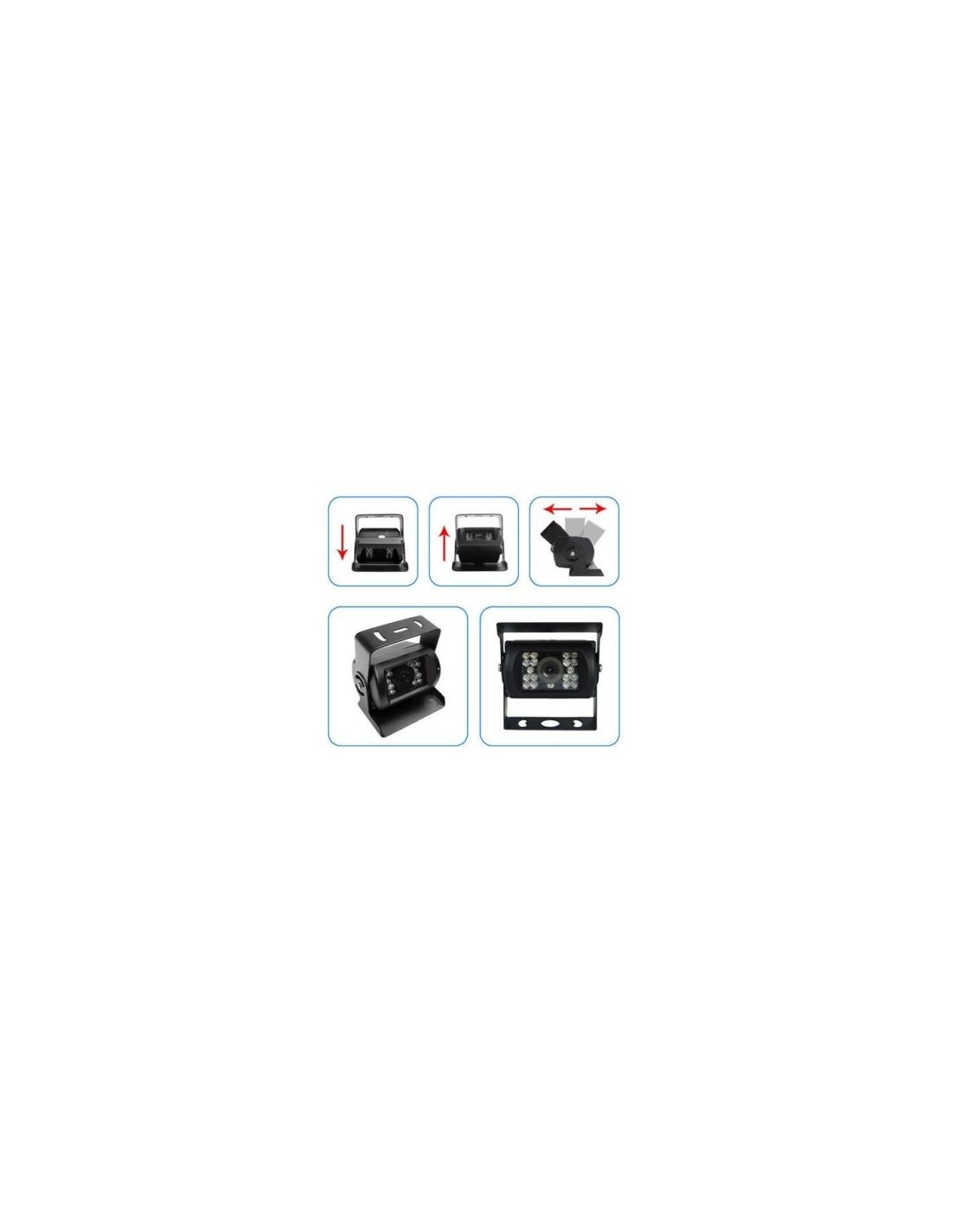

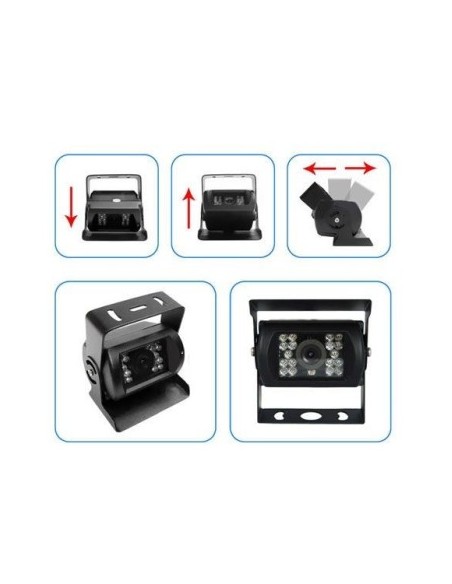

4. Mount the camera in the desired location using the included metal bracket.
5. Check the camera's operation and adjust the viewing angle if necessary.
6. If instructions are not included, it is recommended to have the installation done by an authorized service.

What do customers appreciate about this type of product?

Customers particularly appreciate the image quality provided by the CMOS sensor, which allows for clear visibility in low light conditions. Additionally, water and shock resistance is another important aspect, ensuring the camera's durability in challenging environments. The compact design and ease of installation are also features valued by users.

Frequently Asked Questions about this type of product

Question 1: What is the viewing angle of the camera?

Answer: The camera has a viewing angle of 170 degrees, providing extensive coverage of the area behind the vehicle.

Question 2: Is the camera waterproof?

Answer: Yes, the camera has an IP67 protection class, making it fully waterproof.

Question 3: What voltage does the camera require for operation?

Answer: The camera operates at both 12V and 24V, making it versatile for different types of vehicles.

Applicability and Use

The infrared reversing camera is useful in various transport situations, both in professional and personal environments. It contributes to the safety and efficiency of parking maneuvers, providing increased visibility in low light conditions.

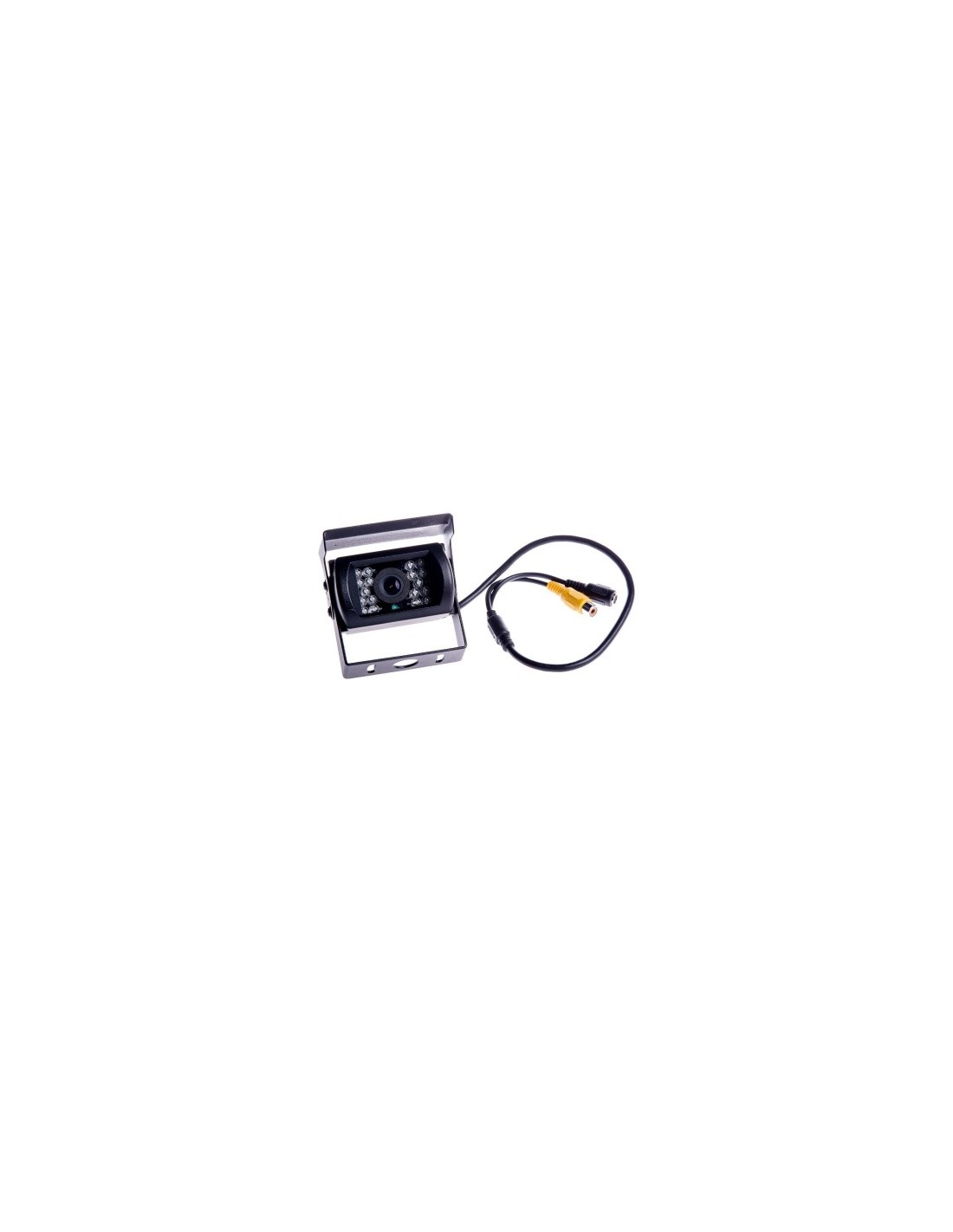

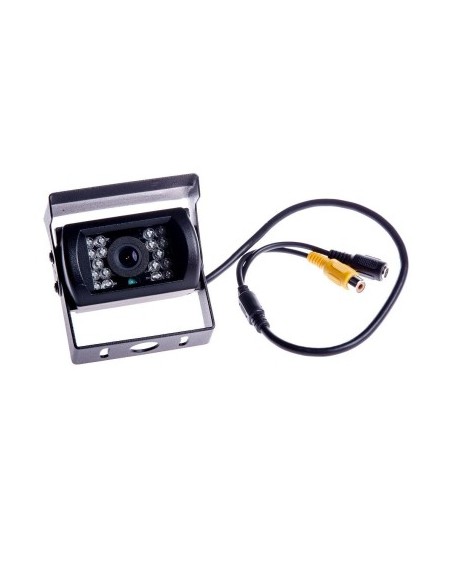

Contents of the Set

• Reversing camera
• 10-meter RCA video cable
• Power cable

Recommendation

It is recommended that the camera installation be performed by a specialist to ensure the correct and safe operation of this device. Periodically check the camera's condition to ensure it operates optimally in any conditions.
