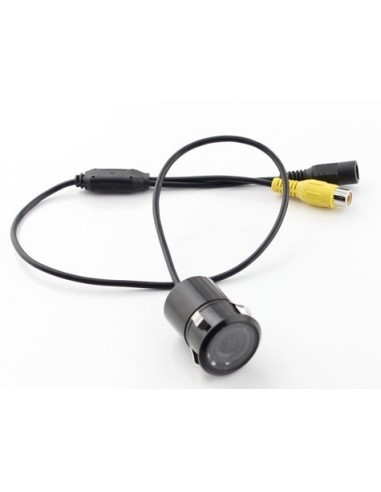

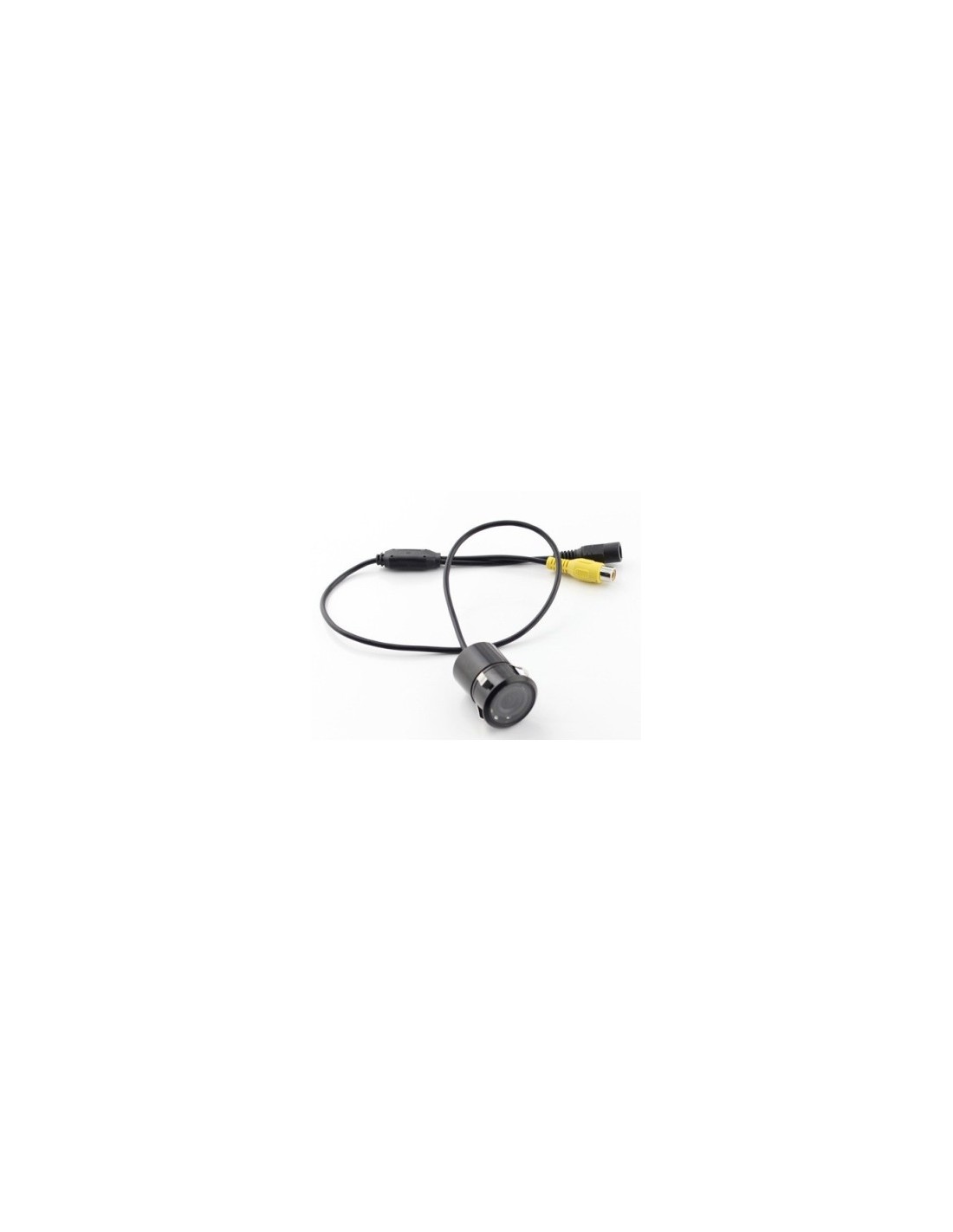

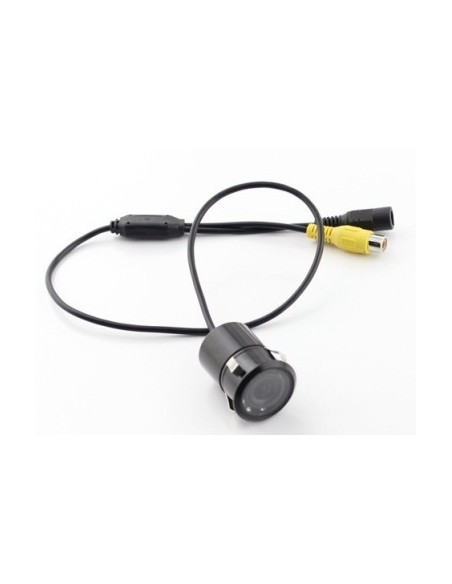

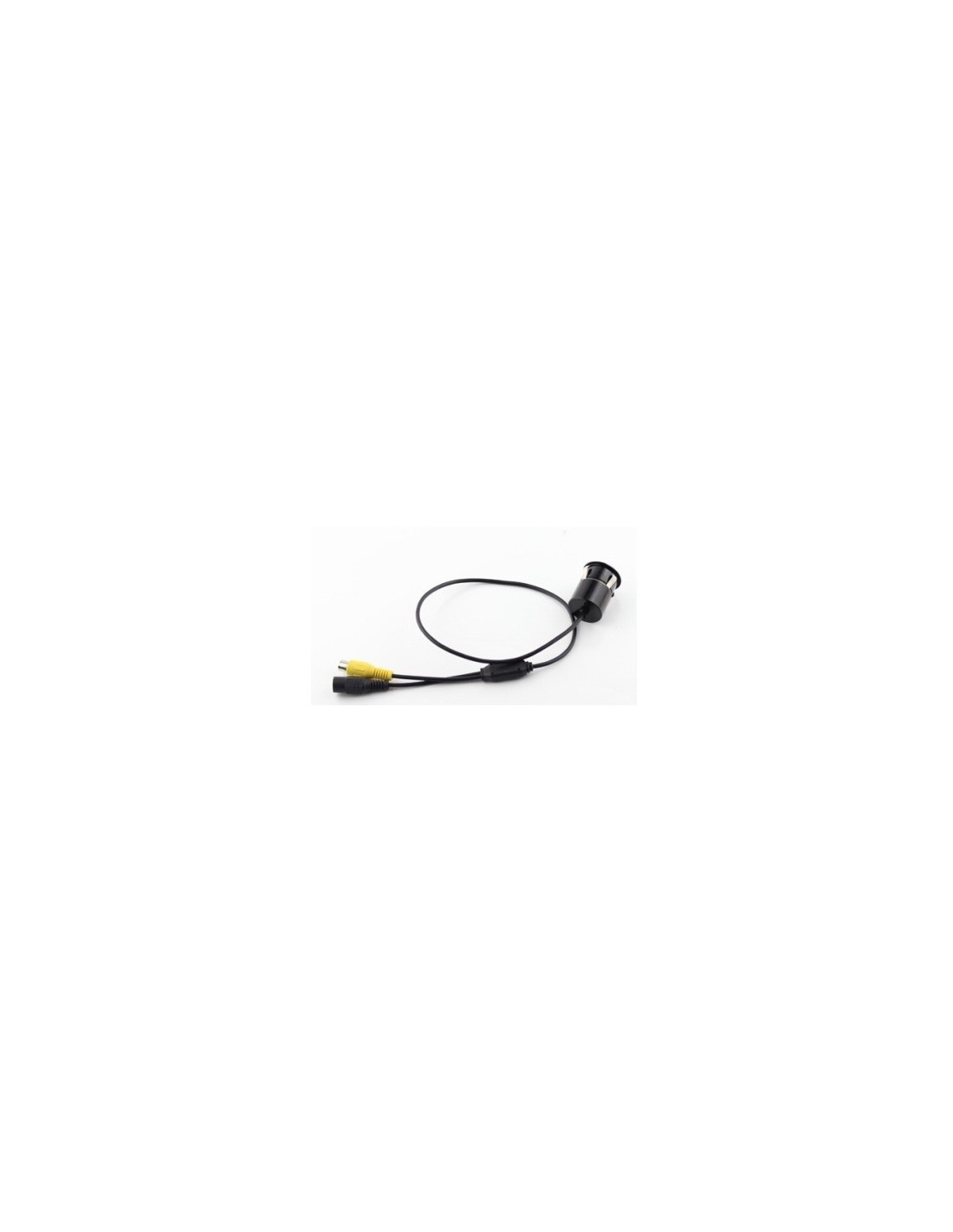

Rearview Camera with Variable Guiding Lines and Infrared

What is it and what is it used for?

The C410-G rearview camera is a device designed to ensure enhanced visibility during parking maneuvers. Thanks to the built-in gyroscopic sensor, this camera has adaptable guiding lines based on the car's turning direction, thus facilitating parking in tight spaces. The curvature of the lines adjusts to the movement of the car, not to the steering wheel's rotation, providing a more intuitive and precise experience.

Technical Specifications

• TV System: NTSC
• Image Sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Power Supply Voltage: DC 12V
• Operating Temperature: -30 - +70 degrees Celsius
• Water Resistance: IP67
• Shock Resistance
• Viewing Angle: 170 degrees
• Diameter: 26 mm
• Minimum Brightness: 0 Lux
• Guiding Lines Adaptable to Car's Turning
• Metal Housing, Shock Resistant
• Small and Compact Design
• Fully Waterproof (Protection Class IP67)
• Easy Installation
• Color: Black

In what situations is it used in practice?

Professional Use

• Used in commercial vehicle fleets to facilitate parking in tight spaces.
• Frequently installed on delivery vehicles to ensure precise maneuvering in crowded areas.

Personal Use

• Ideal for drivers who want to avoid accidents during parking.
• Used on personal cars to provide better visibility during parking maneuvers.

Compatibility

There is no clear data on specific compatibility in the product description.

Compatible Codes

No compatible codes are mentioned in the product description.

Instructions for Use

1. Install the camera in the desired location on the vehicle.
2. Connect the RCA video cable to the car's display system.
3. Connect the power cable to the vehicle's power source.
4. Ensure that all connections are secure and correct.
5. We recommend installation at an authorized service to avoid potential issues.

What do customers appreciate about this type of product?

Customers particularly appreciate the ability to adapt the guiding lines based on the turning direction, which provides a more intuitive parking experience. Additionally, water and shock resistance is another important aspect, ensuring the product's durability in various conditions. The compact dimensions and metal design are also mentioned as significant advantages.

Frequently Asked Questions about this type of product

Question: Is the camera waterproof?

Answer: Yes, the camera has an IP67 protection class, making it completely waterproof.

Question: What is the viewing angle of the camera?

Answer: The camera has a viewing angle of 170 degrees, providing a wide perspective of the area behind the vehicle.

Question: Is it easy to install?

Answer: Yes, installation is simple, but it is recommended to have it done at an authorized service to avoid issues.

Applicability and Use

The C410-G rearview camera is useful in various situations, both for professional and personal use. It can be used on commercial vehicles as well as personal cars, providing an effective solution for parking in tight spaces and turning maneuvers.

Package Contents

The package includes: rearview camera, 6-meter RCA video cable, power cable, and a drilling bit with a diameter of 26 mm.

Recommendation

The C410-G rearview camera is a practical choice for those looking to enhance safety and precision during parking. It is recommended for both professional and personal use, due to its advanced technical features and robust design.
