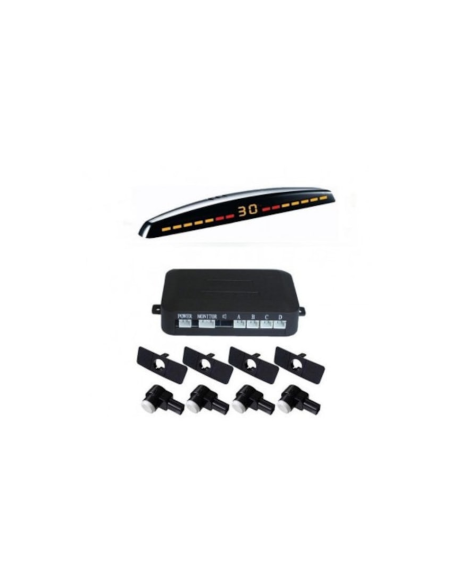

LED Display Parking Sensors S309 OEM Type 16.5mm

What is it and what is it used for?

The S309 parking sensors are a system designed to assist drivers in parking maneuvers. This system is equipped with 4 sensors that detect obstacles in the area they are directed, providing effective coverage of the rear of the vehicle. By using this system, the risk of hitting obstacles while reversing is significantly reduced. The sensors operate automatically in reverse gear, with an alarm distance ranging from 0 to 2 m.

Technical Specifications

• Digital display with LEDs and four parking sensors
• Three colors, 7 light lines for determining the distance to the obstacle
• Light indicator directs left, center, and right
• Ascending acoustic alarm to avoid collision
• Obstacle detection distance: 0 - 2 m
• Distance displayed on the screen: 30 cm - 2 m
• Water, snow, and wind resistant
• Sound warning

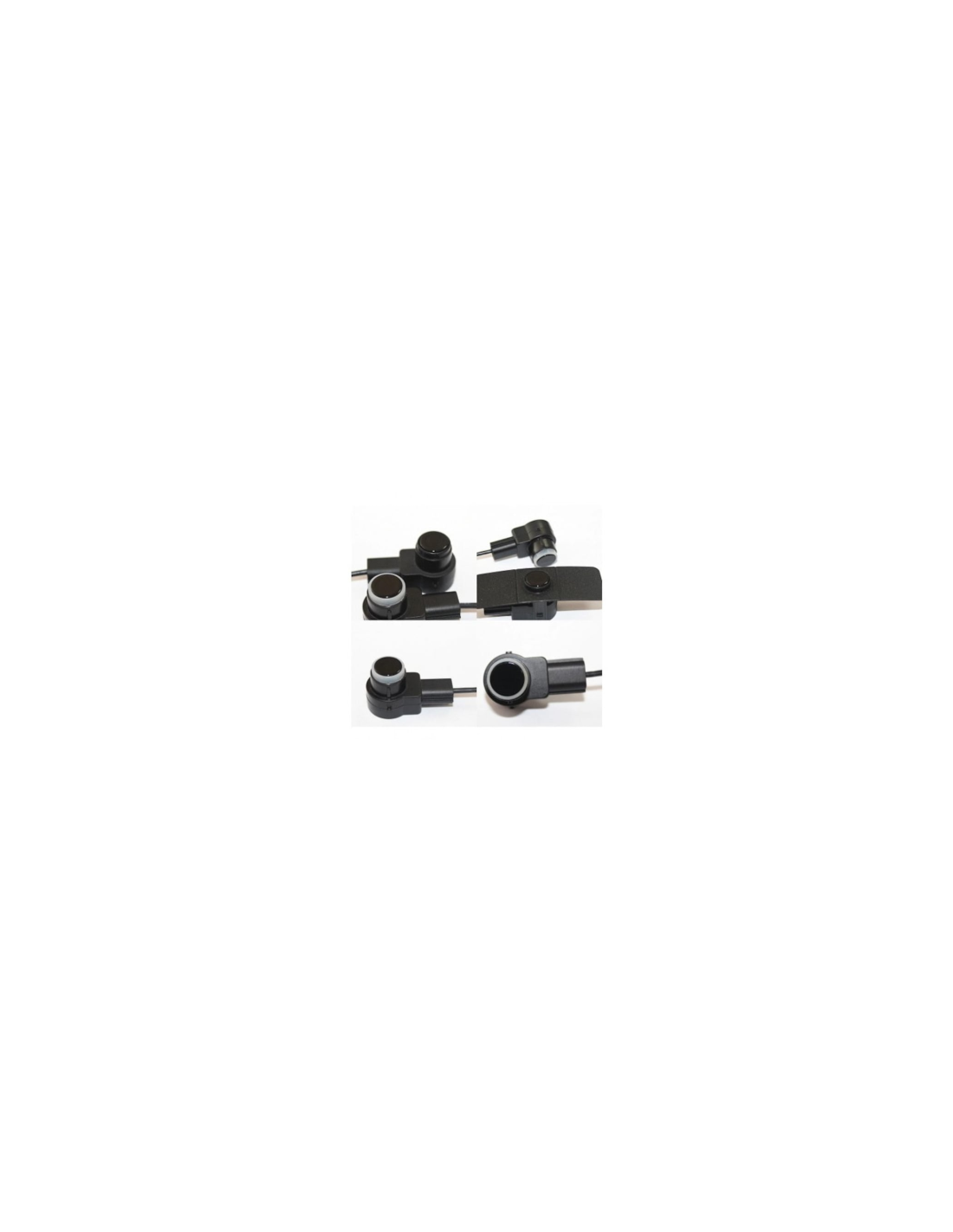

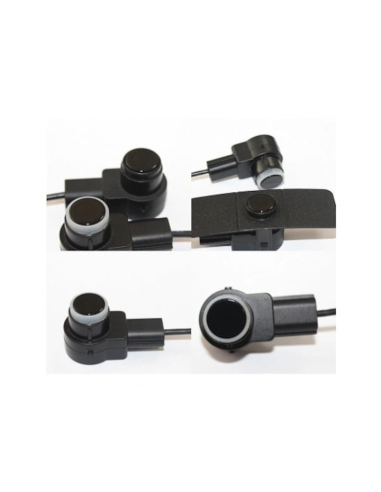

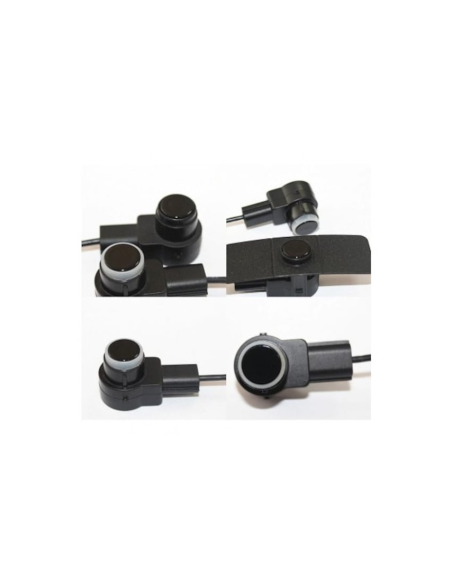

• Sensor diameter: 16.5 mm
• Power supply voltage: 9 - 16 V DC
• Nominal current: 20 mA - 200 mA
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 °C - + 80 °C

In what situations is it used in practice?

Professional Use

• Used in commercial parking lots to ensure safe vehicle maneuvering.
• Ideal for taxi drivers who perform frequent parking maneuvers.
• Used in vehicle fleets to reduce accident risks during parking.

Personal Use

• Used by personal car drivers to facilitate parking in tight spaces.
• Helps drivers in the learning process of parking, providing visual and auditory feedback.
• Used in residential parking to avoid collisions with other vehicles or obstacles.

Instructions for Use

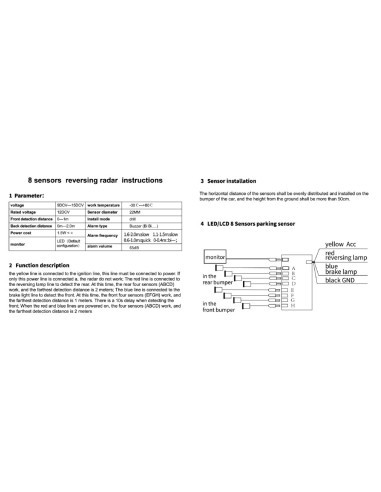

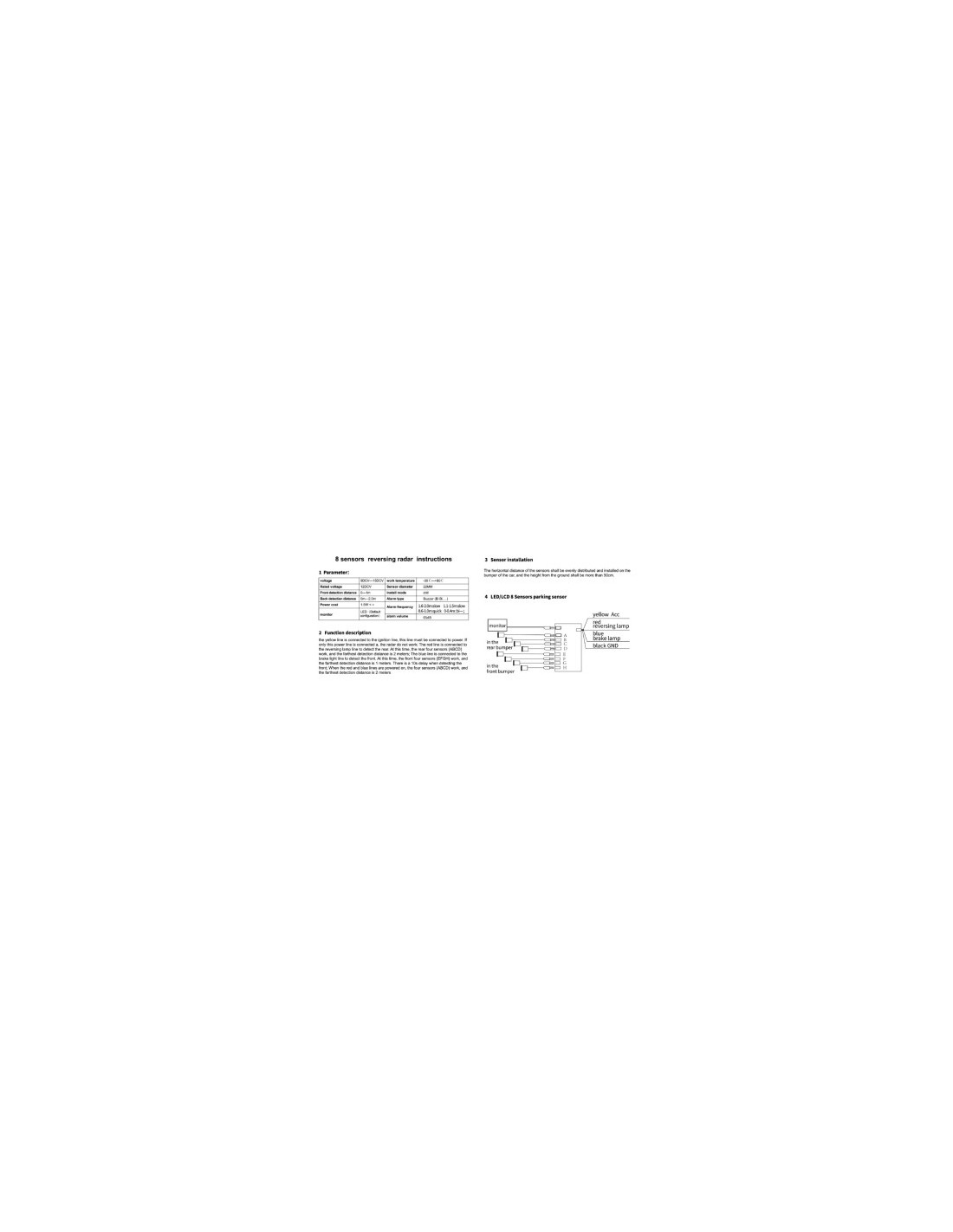

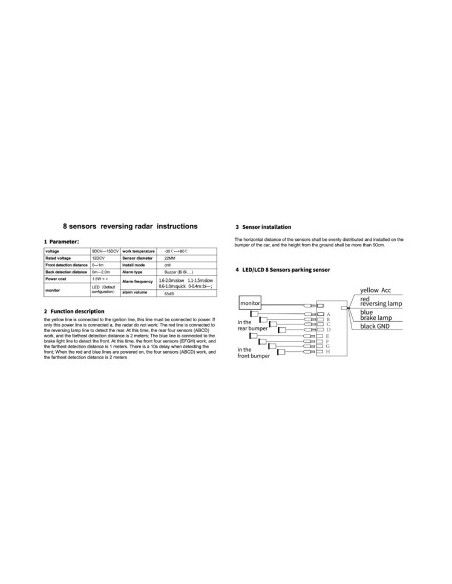

1. Install the sensors in the rear bumper of the car according to the specifications in the product manual.
2. Use the included drill to make holes in the bumper.
3. Secure the central unit in the trunk, in a place protected from moisture.
4. Attach the display to the dashboard of the car with double-sided tape.
5. If instructions are not included, it is recommended to have the installation done at an authorized service.

What do customers appreciate about this type of product?

Customers appreciate the accuracy and reliability of the parking sensor system, which provides a high level of safety during parking maneuvers. Additionally, many users mention the ease of installation and use, as well as the compact design of the sensors. Positive feedback also focuses on the system's efficiency in detecting obstacles, contributing to a more pleasant driving experience.

Frequently Asked Questions about this type of product

Question: How do parking sensors work?

Answer: Parking sensors detect obstacles by emitting ultrasonic waves, which are then reflected by objects, allowing the system to estimate the distance to them.

Question: Is professional installation necessary?

Answer: Although the system is easy to install, it is recommended to have it installed at an authorized service to ensure proper operation.

Question: What type of vehicles are compatible with this system?

Answer: The system is universal and can be used on most vehicles, but it is recommended to check the specifications to ensure compatibility.

Applicability and Use

Parking sensors are applicable in various situations, being useful in residential, commercial, and industrial parking. This system can be used by drivers of all experience levels, helping them avoid collisions and maneuver vehicles in tight spaces.

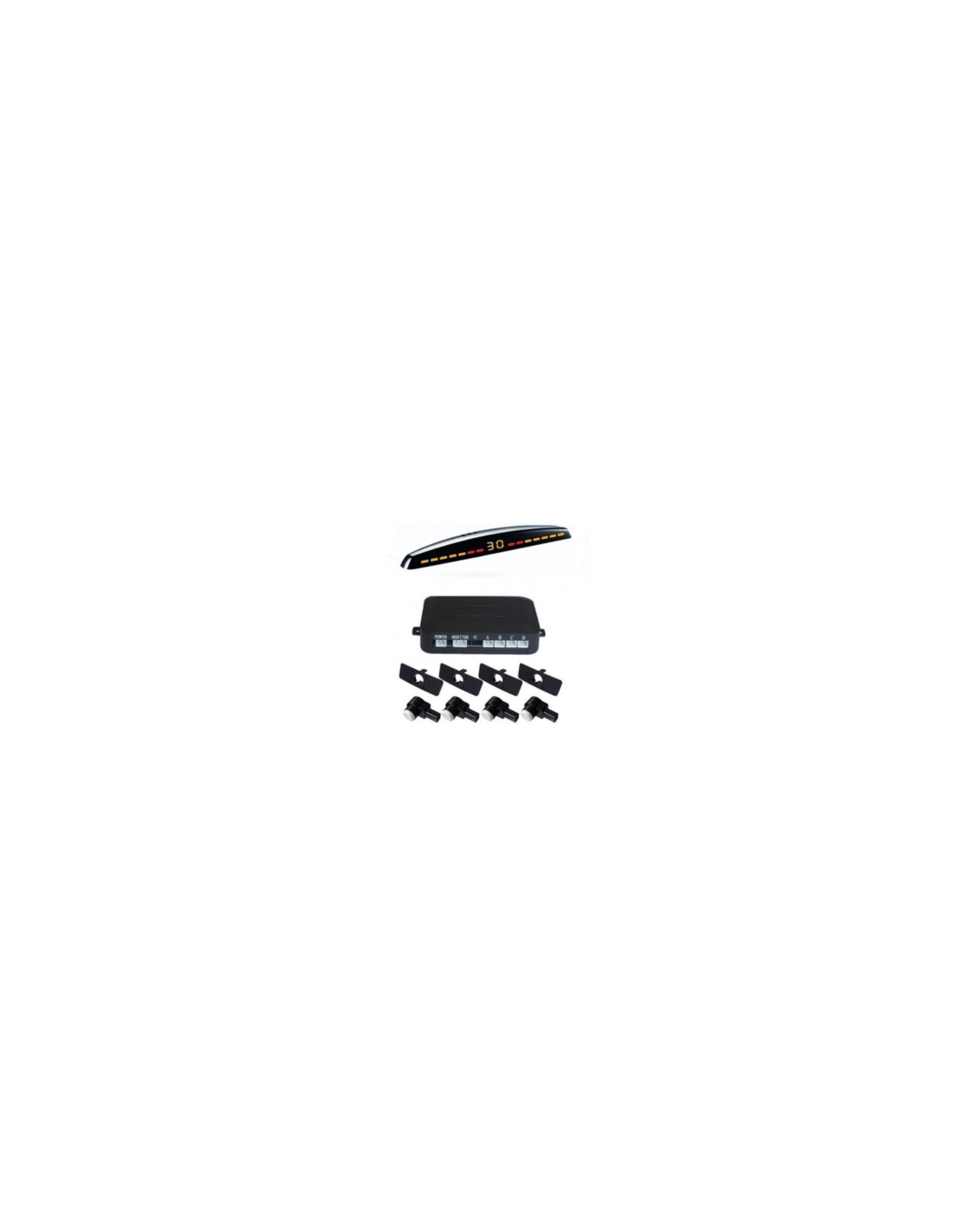

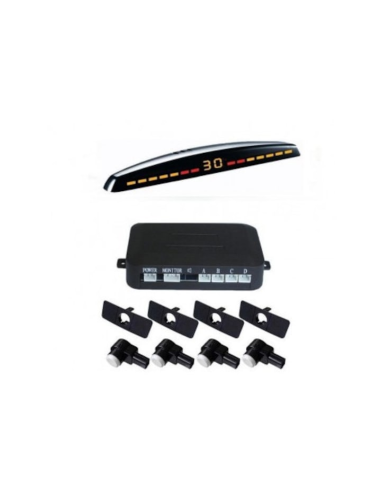

Contents of the Set

• Central unit
• Parking sensors
• Power cable
• Drill for bumper holes
• LED display
• Installation instructions

Recommendation

This parking sensor system is an effective solution for any driver looking to improve their parking skills and reduce accident risks. It is a robust product designed to withstand various weather conditions, making it suitable for long-term use.
