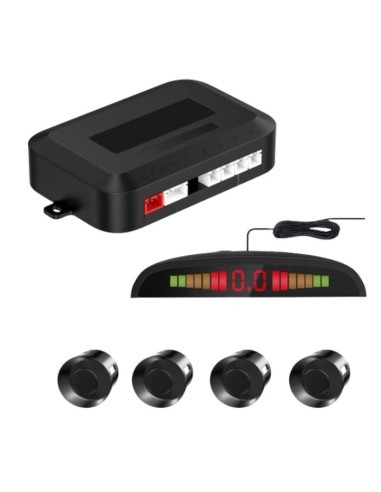

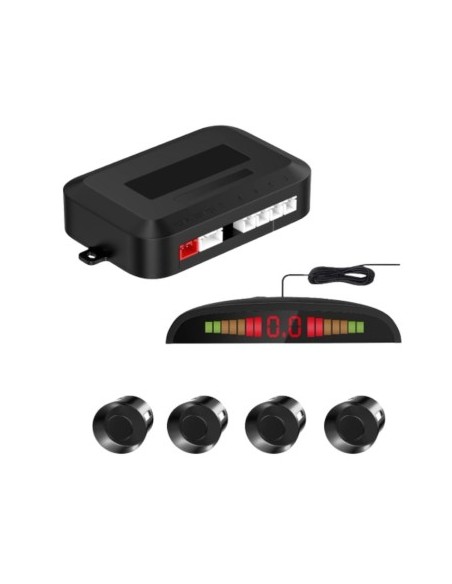

Parking Sensors with LED Display 112

What is it and what is it used for?

The parking system with LED display 112 is equipped with 4 sensors that detect obstacles in the area they are directed. This system provides effective coverage of the rear of the vehicle when it is in reverse, reducing the risk of collision with various obstacles. The sensors are automatically activated when the reverse gear is engaged, with a detection range of 0 - 2 m, and the information is displayed on a digital display.

Technical Specifications

• Digital display with LEDs
• 4 parking sensors
• Three colors, 7 light lines for determining the distance to the obstacle
• Light indicator for left, center, and right direction
• Ascending acoustic alarm to avoid collision
• Automatic obstacle detection in reverse
• Alarm distance: 0 - 2 m
• Distance displayed on the screen: 30 cm - 2 m
• Water, snow, and wind resistant
• Sound warning
• Sensor diameter: 22 mm
• Power supply voltage: 9 - 16 V DC
• Nominal current: 20 mA - 200 mA
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 °C - +80 °C

In what situations is it used in practice?

Professional Use

• Used in commercial parking lots to help drivers avoid obstacles.
• Ideal for vehicle fleets that require parking assistance.

Personal Use

• Used by drivers in residential parking to prevent accidents.
• Facilitates parking in tight spaces, providing additional safety.

Compatibility

No compatibility information is available.

Compatible Codes

No compatible codes are available.

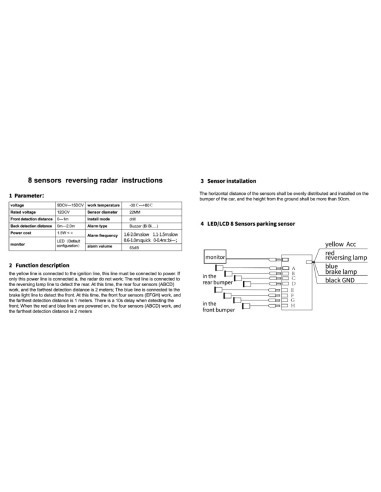

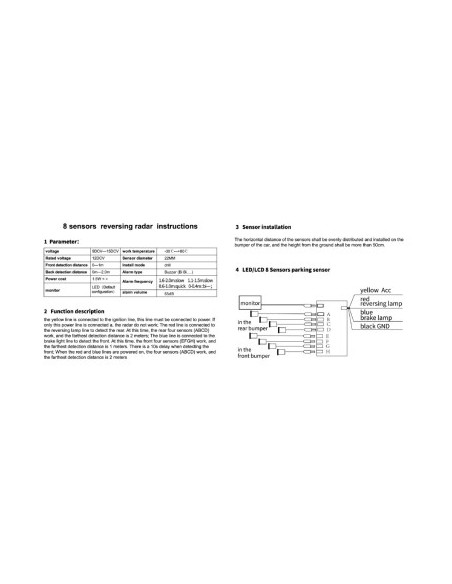

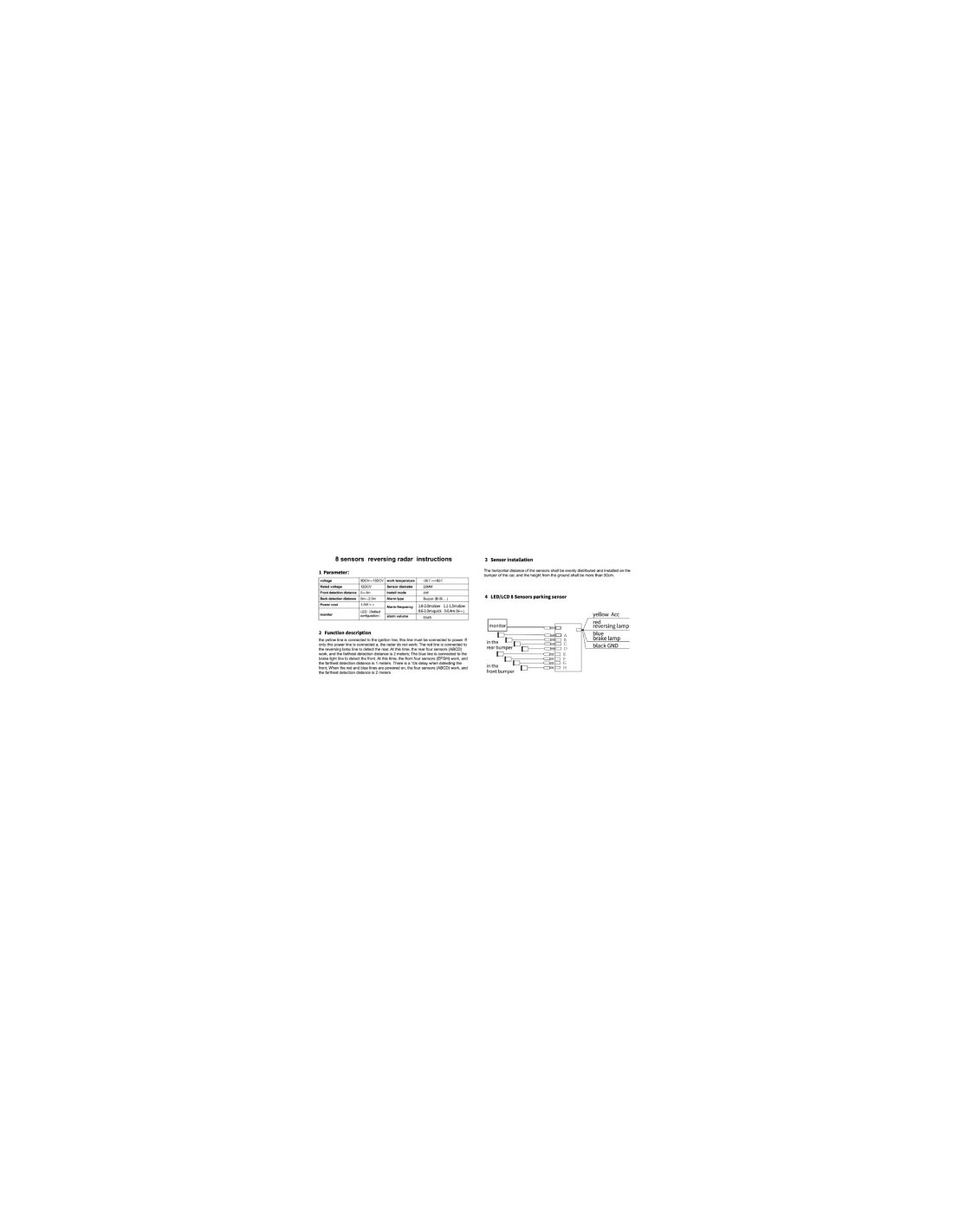

Instructions for Use

1. The product comes with a complete installation kit.
2. The sensors are fixed in the rear bumper of the vehicle according to the specifications in the manual.
3. A drill included in the kit is used to mount the sensors.
4. The central unit is fixed in the trunk, protected from moisture.
5. The display is mounted on the dashboard of the vehicle with double-sided adhesive tape.

What do customers appreciate about this type of product?

Customers generally appreciate parking sensor systems for their ease of use and the safety they provide. These products are especially useful in crowded areas where parking spaces are limited. Additionally, many users mention the effectiveness of the sound alarms that warn of approaching obstacles.

Frequently Asked Questions about this type of product

Question: How do parking sensors work?

Answer: The sensors detect obstacles by emitting ultrasonic waves and display the distance to them on the LED display.

Question: Is it easy to install?

Answer: Yes, the product comes with a complete installation kit and detailed instructions.

Question: What happens if the sensors do not work correctly?

Answer: It is recommended to check the connections and, if the problem persists, consult a specialist.

Applicability and Use

Parking sensors are widely used in the automotive industry, being an effective solution for preventing accidents during parking. This type of system is ideal for drivers who want to have better visibility of the space around the vehicle.

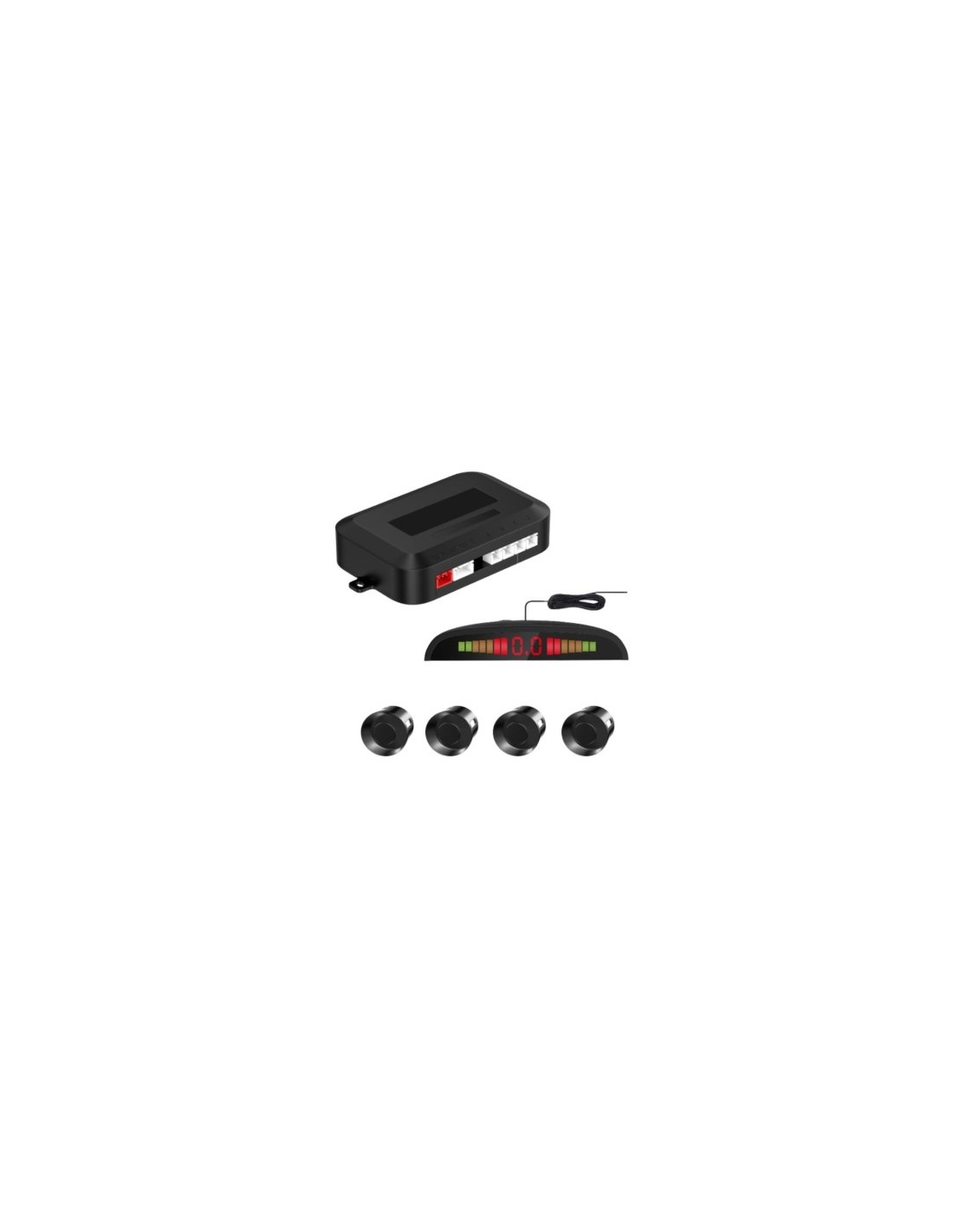

Contents of the Set

The set includes: central unit, parking sensors, power cable, drill for bumper, LED display, installation instructions.

Recommendation

It is recommended that the installation be carried out by a specialist to ensure the correct functioning of the system. This will contribute to efficient use and prevent potential technical problems.
