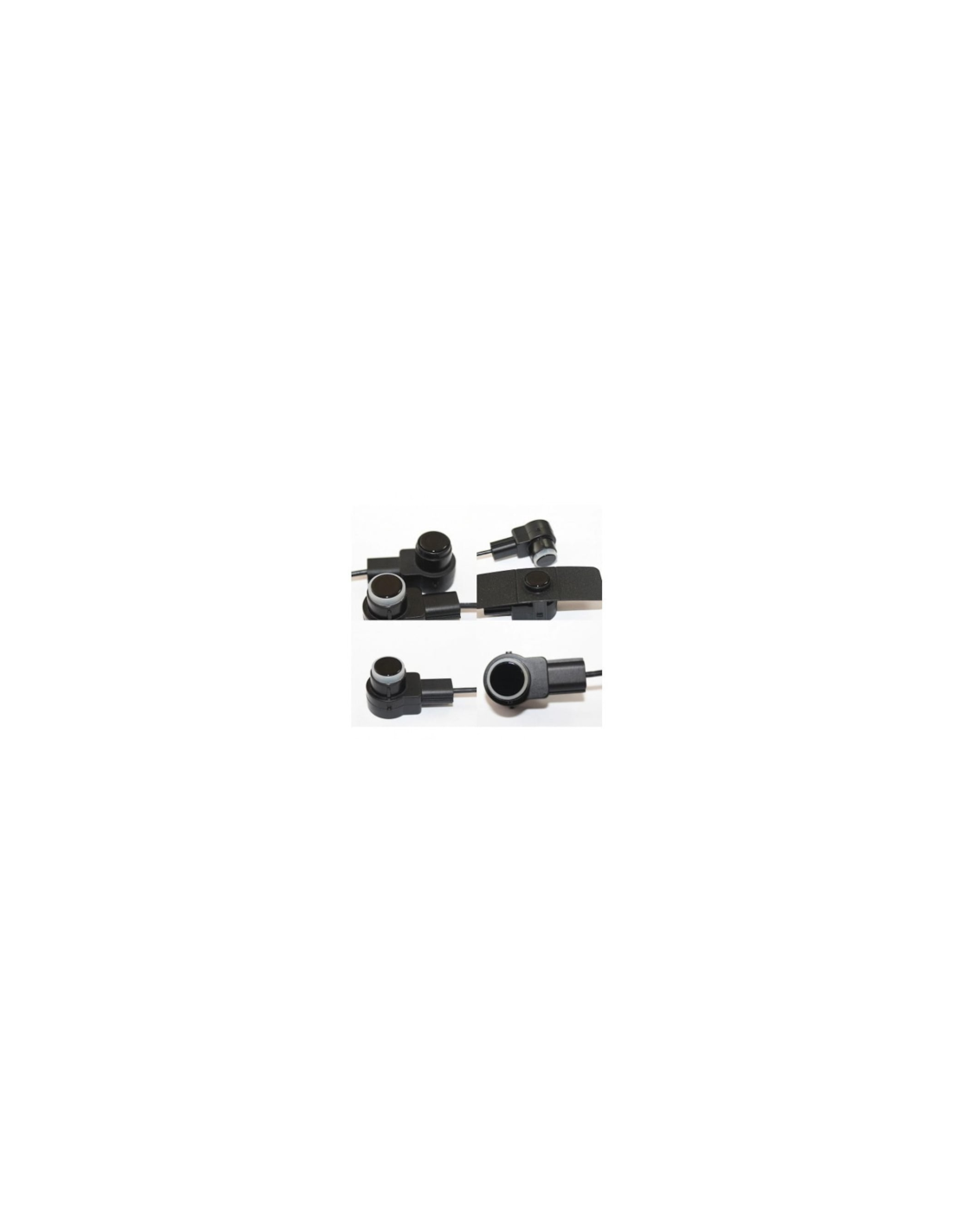

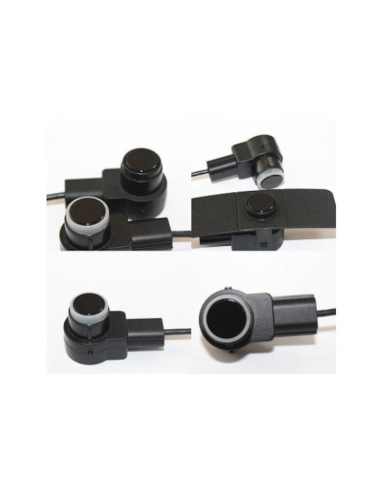

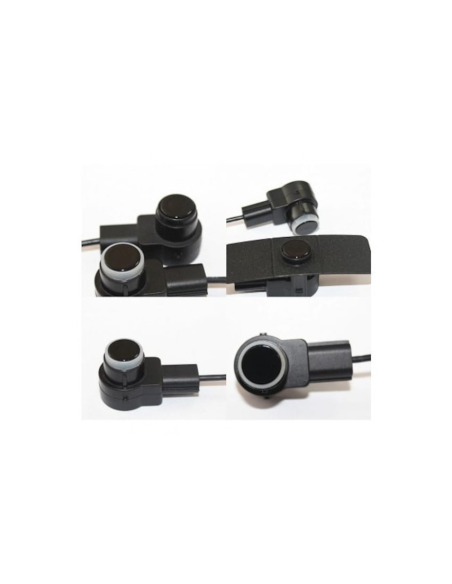

Front and rear parking sensors with 8 sensors and LCD display S500-8 OEM type 16.5mm

What is it and what is it used for?

The S500-8 parking system is equipped with 8 sensors that detect obstacles in the area they are directed. This system provides extensive coverage for both the front and rear of the vehicle, reducing the risk of collisions. With a digital LCD display mounted on the rearview mirror, users can view information about the distance to obstacles. The power supply voltage is 9 - 16 V DC, and the nominal current varies between 20 mA and 200 mA.

Technical specifications

• Digital LCD display on the rearview mirror
• 8 parking sensors
• Light indicator for left, center, and right direction
• Ascending acoustic alarm to avoid collision
• Automatic obstacle detection in reverse
• Alarm distance: 0 - 2 m for rear, 0 - 1 m for front
• Obstacle detection distance: 0 - 2 m for rear, 0 - 1 m for front
• Distance displayed on the screen: 30 cm - 2 m
• Water, snow, and wind resistant
• Sound warning
• Sensor diameter: 16.5 mm
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 °C - +80 °C

In what situations is it used in practice?

Professional use

• Used in commercial parking lots to prevent collisions.
• Ideal for car fleets that require constant monitoring of parking space.
• Used in auto services to assist in parking vehicles.

Personal use

• Facilitates parking in tight spaces, reducing the risk of damage.
• Provides additional safety for drivers and passengers during parking maneuvers.
• Allows users to avoid invisible obstacles, such as other vehicles or static objects.

Compatibility

• Brand - Series - Model - Year range (month/year - month/year)

Compatible Codes

• 3201406
• 7427030027884

Instructions for use

1. Install the central unit in the trunk, protected from moisture.
2. Fix the sensors in the front and rear bumper according to the manual.
3. Use the included drill to make holes in the bumper.
4. Attach the display to the car's rearview mirror.
5. Ensure that the system is correctly connected to the power supply voltage.

What do customers appreciate about this type of product?

Customers appreciate parking sensor systems for their accuracy and efficiency in detecting obstacles. These products are considered especially useful in crowded areas where parking spaces are limited. Additionally, users note the ease of installation and the intuitive functionality of the LCD display.

Frequently asked questions about this type of product

Question: What type of obstacles can the sensors detect?

Answer: The sensors can detect both static and mobile obstacles near the vehicle.

Question: Is professional installation required?

Answer: Although the product comes with instructions, it is recommended to have it installed at an authorized service to ensure proper functioning.

Question: What warranty does this product offer?

Answer: The product comes with a 12-month warranty.

Applicability and use

The parking sensor system is suitable for any type of vehicle, providing an effective solution for parking maneuvers. It is used in both urban environments and residential areas where parking spaces are often limited.

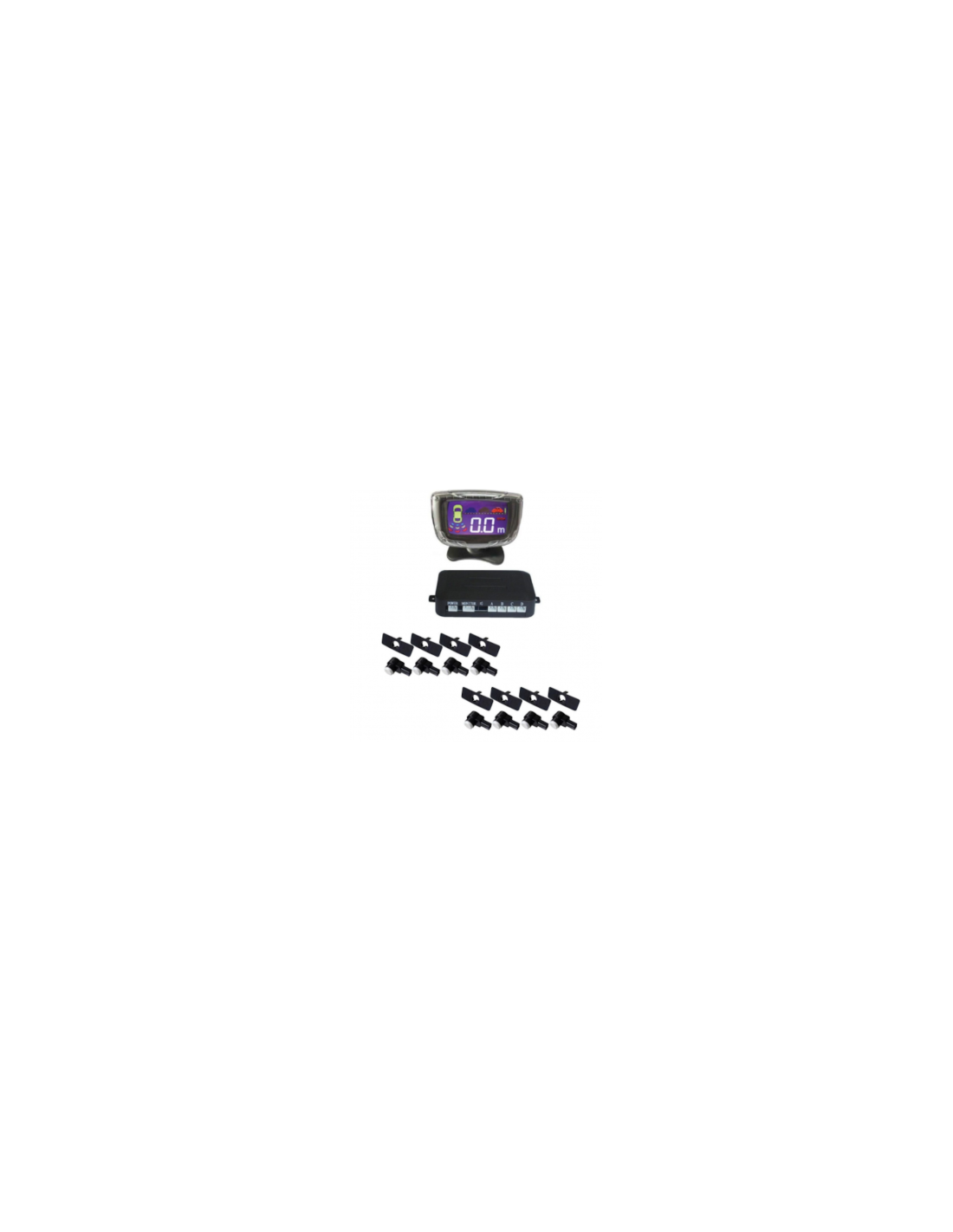

Contents of the set

The set includes the central unit, parking sensors, power cable, drill for bumper holes, and the LCD display, as well as installation instructions.

Recommendation

This parking system is recommended for drivers who want to avoid collisions and facilitate parking. It is a useful product for any vehicle, providing a practical and effective solution for safety during parking maneuvers.
