Parking sensors with video camera and 7" LCD display in mirror T24 OEM type 16.5mm

Product Description
The parking system is equipped with 4 high-performance sensors that detect obstacles in the area they are directed. The number of 4 parking sensors allows for very good coverage of the rear part of the car when reversing, thus eliminating the risk of hitting obstacles.

Features
-Digital LCD display with four parking sensors
-The light indicator directs left, center, and right
-Ascending acoustic alarm to avoid collisions
-In reverse, the sensors automatically detect obstacles
-Alarm distance: 0 – 2 m

How to Install
-Easy to install, the product comes with a complete installation kit
-The sensors are fixed in the rear bumper of the car according to the specifications in the product manual, drilling the bumper with the special drill included in the kit
-The central unit is fixed in the trunk in a place protected from moisture

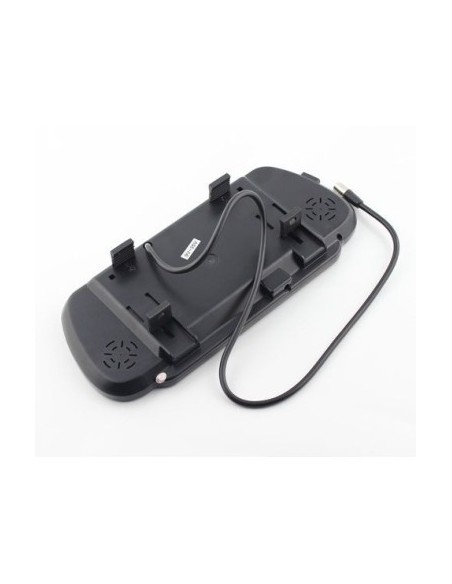

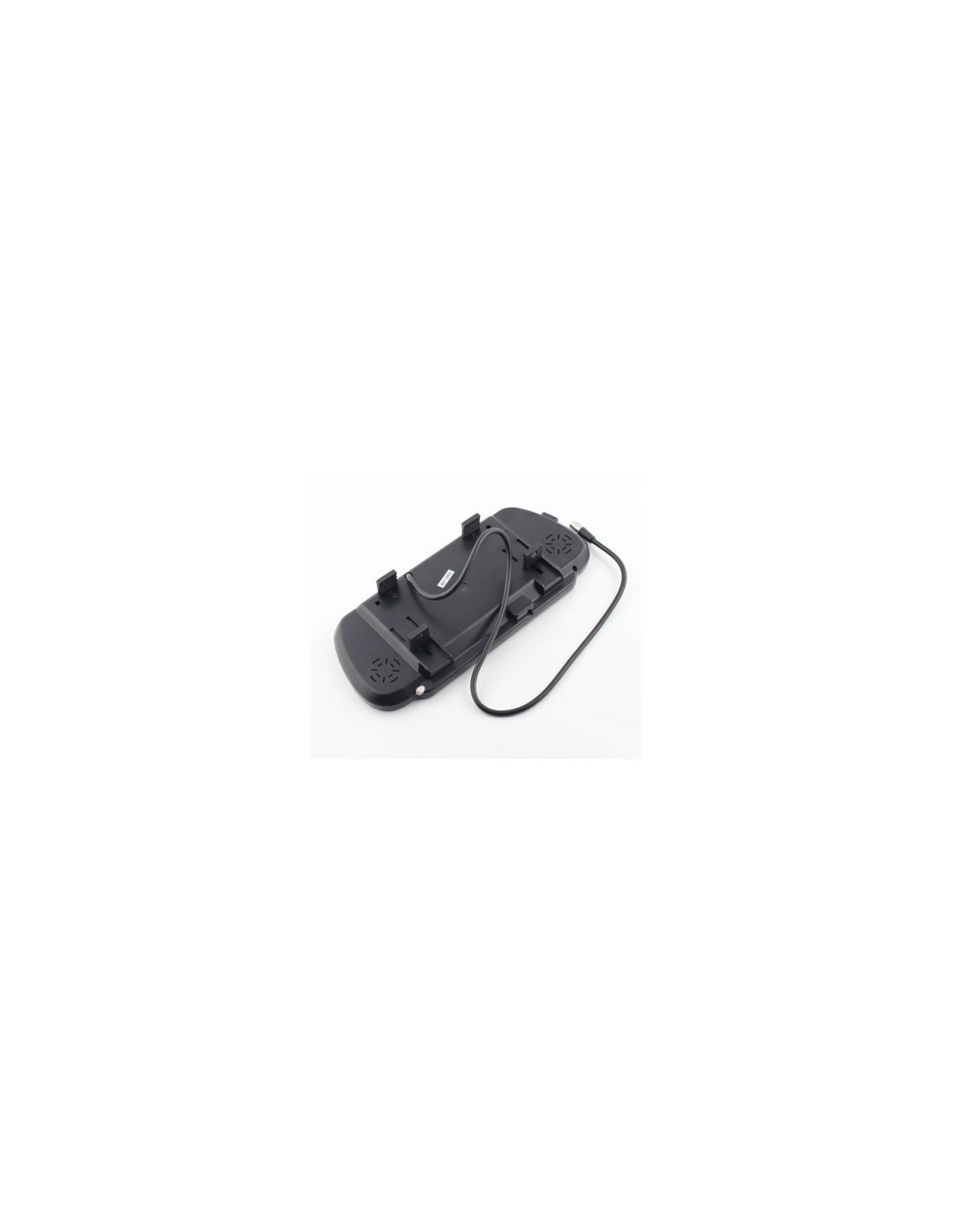

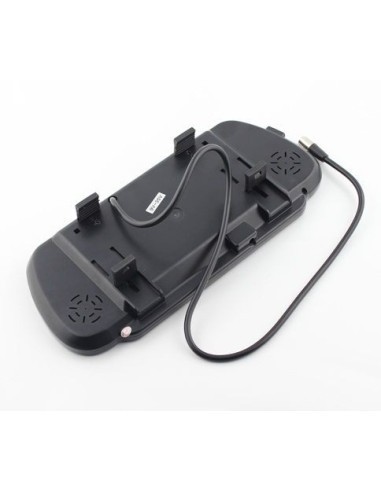

-The display is fixed over the rearview mirror of the car

Technical Specifications of Parking Sensors

– Automatically connects with reverse gear

– Obstacle detection distance: 0 – 2 m

– Distance displayed on the screen: 30 cm – 2 m

– Water, snow, and wind resistant

– Sound warning

– Sensor diameter: 22 mm

Display Technical Parameters

Power supply: DC12V
Display size: 7″
Format: 16:9 (4:3)
Resolution: 480 x 272
PAL/NTSC
Video inputs: 2 (camera input + secondary input)
Contrast: 300:1
Operating temperature:-30~+70

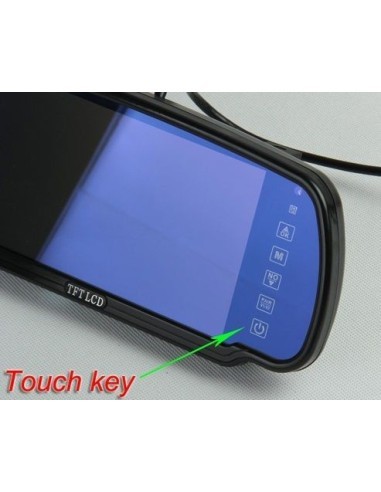

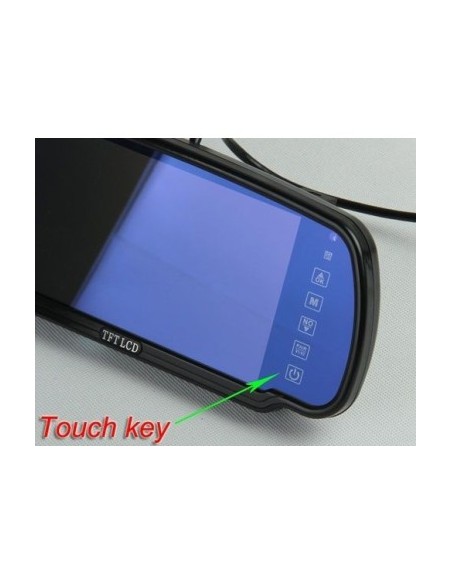

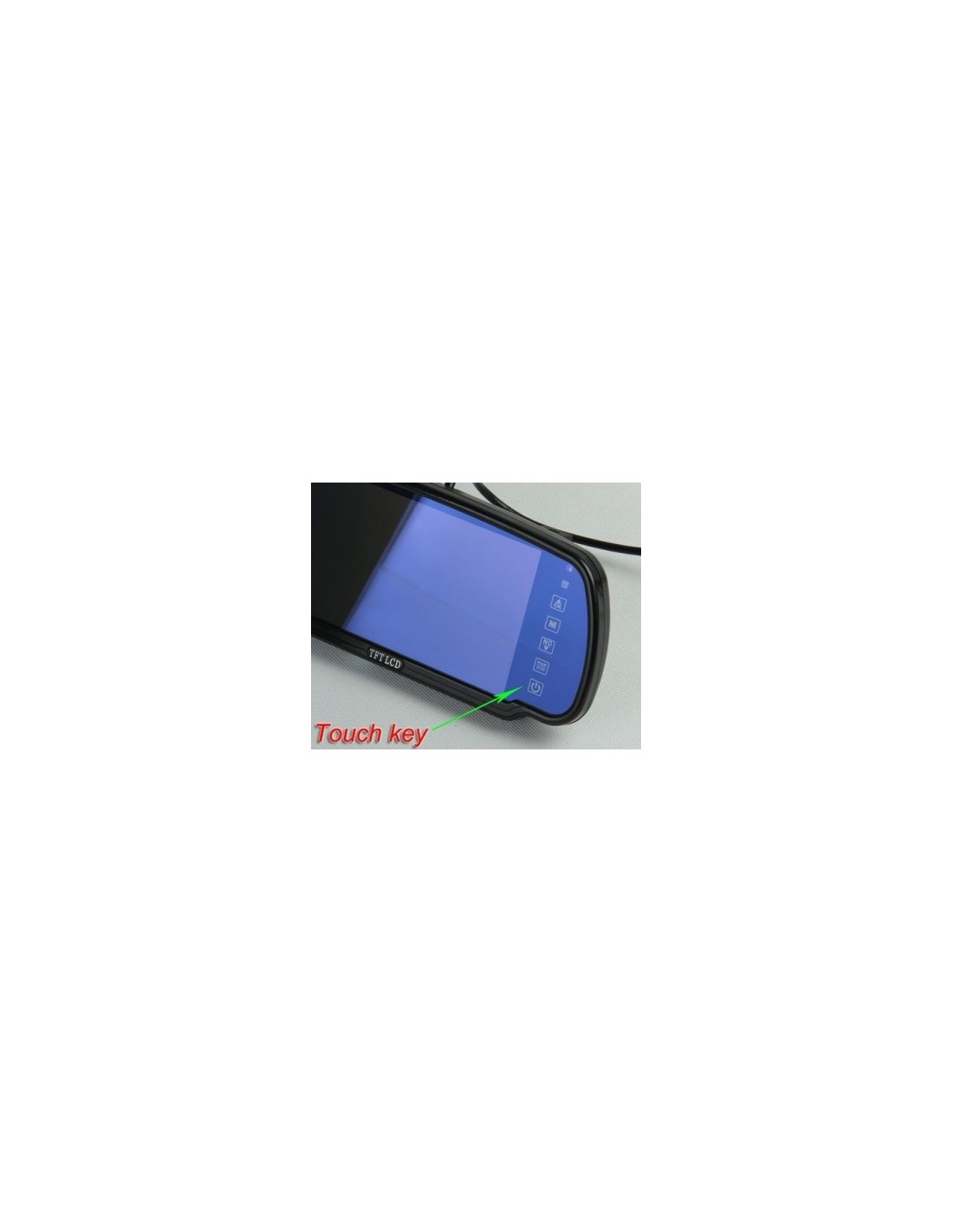

Touchscreen

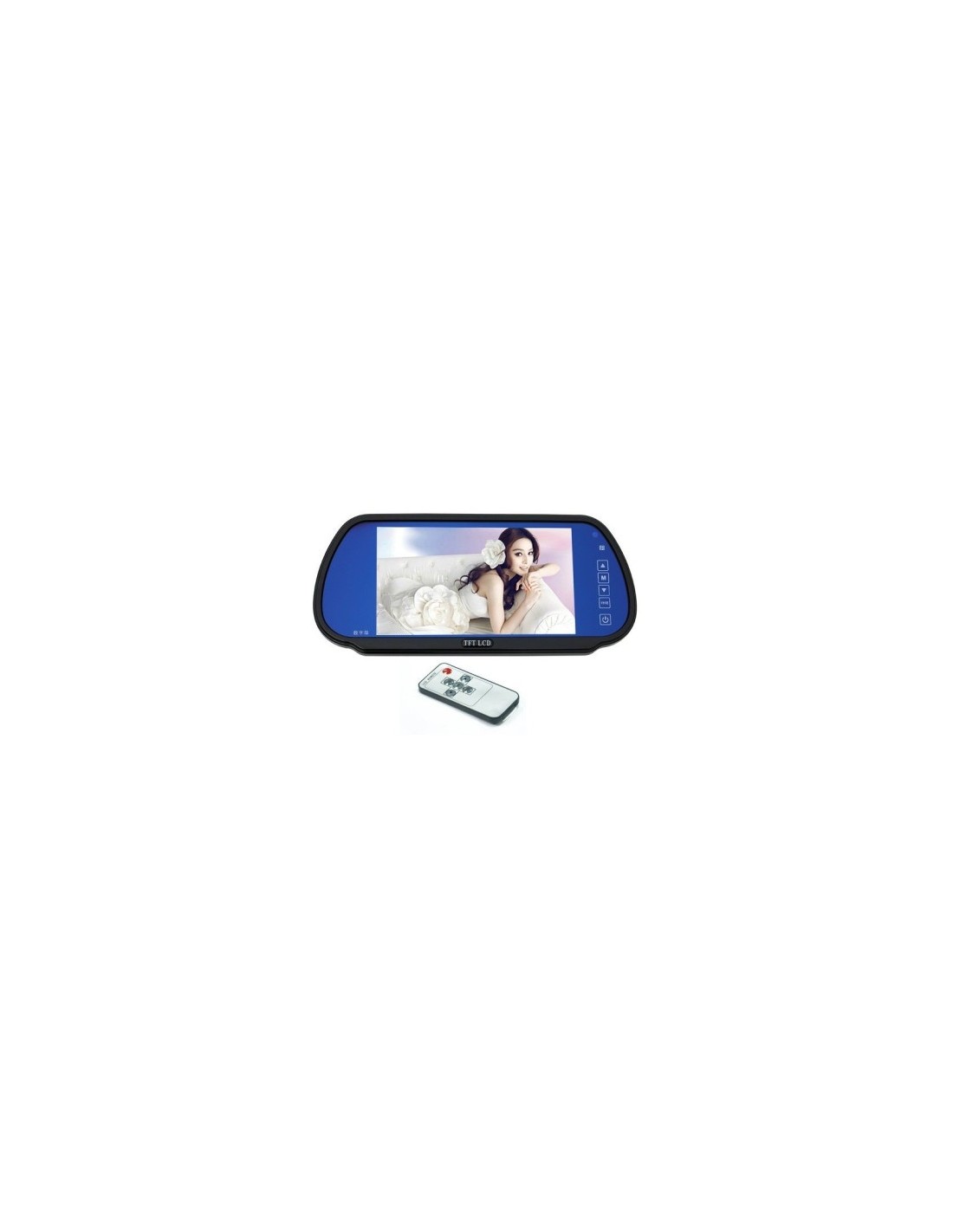

Remote control

Rear Camera Features

1. 170-degree viewing angle
2. Metal housing, shock-resistant
3. Small and compact design
4. Completely waterproof (IP67 protection class)
5. Simple installation
6. Color: black

Rear Camera Technical Specifications

1. TV System: NTSC
2. Image sensor: Color CMOS
3. Pixels: 688×488
4. Resolution: 420 TV Lines
5. Power supply: DC 12V
6. Operating temperature: -30 – +70 degrees Celsius
7. Waterproof – IP67, Shock resistant

Parking Sensors Technical Parameters

Power supply: 9 – 16 V DC
Nominal current: 20 mA – 200 mA

Ultrasonic frequency: 40 KHz
Operating temperature: -30 ° C – + 80 ° C

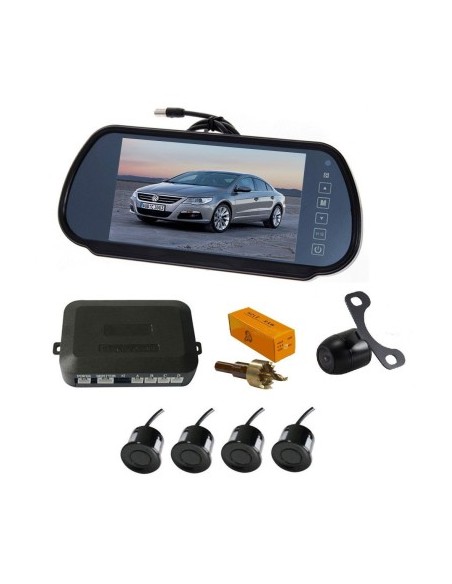

Package Contents

Central unit

Parking sensors

Power cables

Drill for bumper drilling

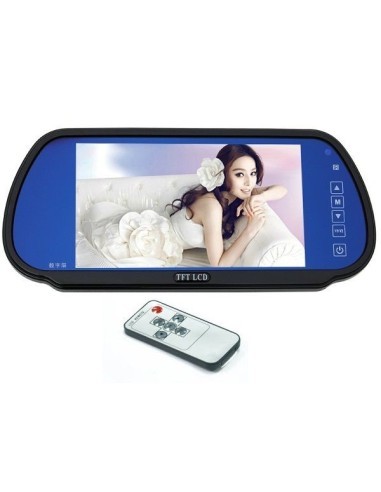

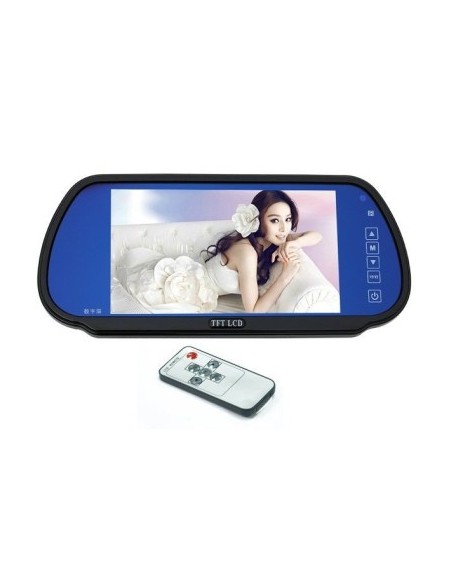

Rearview mirror with 7″ LCD Display

Rear camera

6m RCA cable

Installation instructions

Available colors*: White, Silver, Dark Gray, Red, Black, Matte Black, Blue

*The sensors can be painted by the buyer in the original color of the car

12 months warranty
