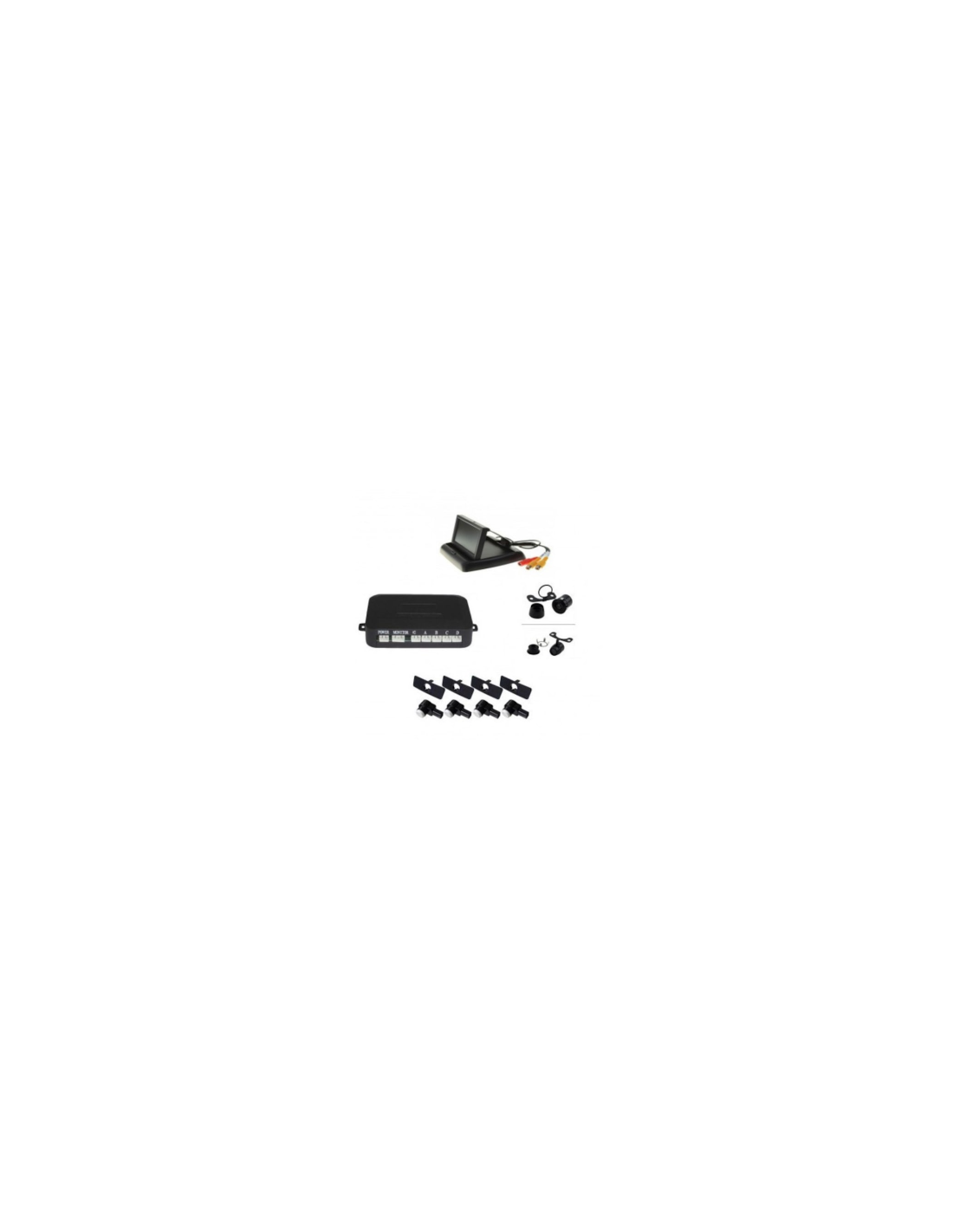

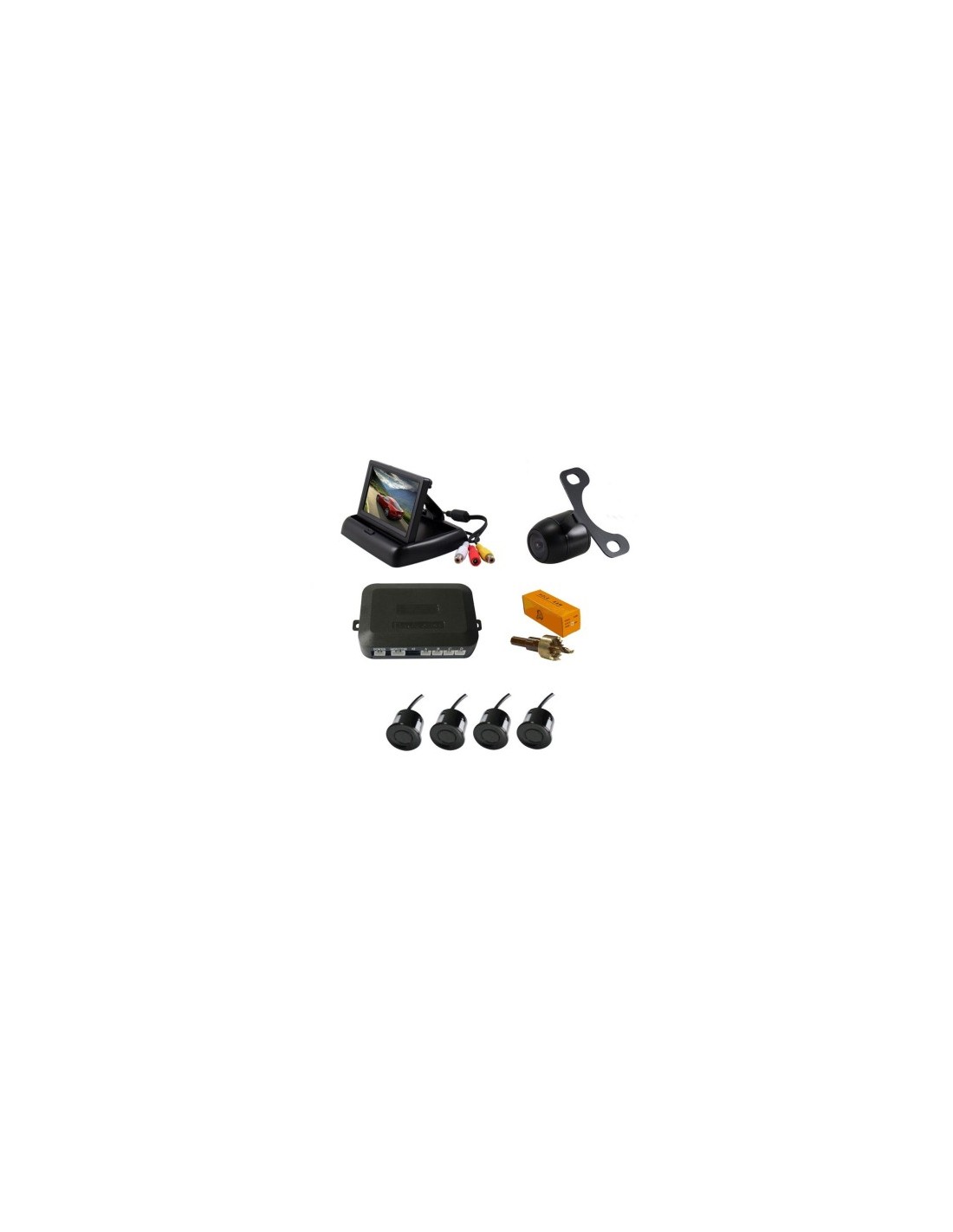

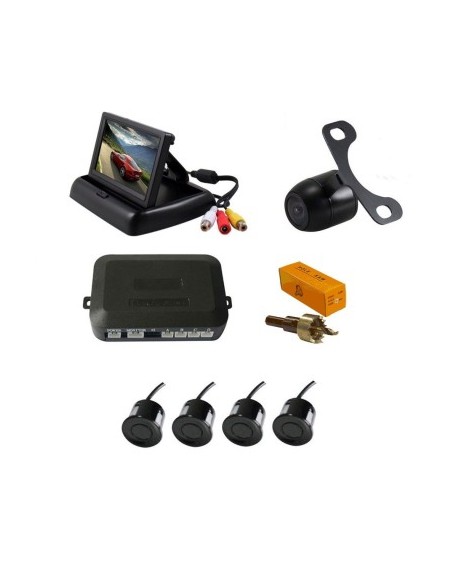

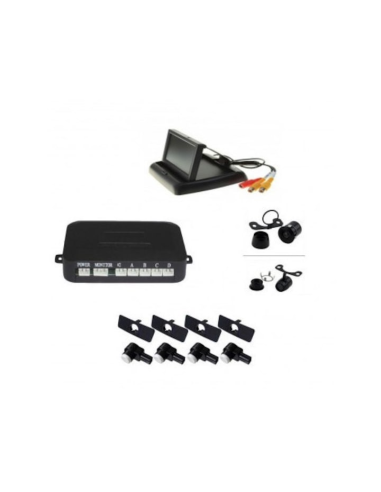

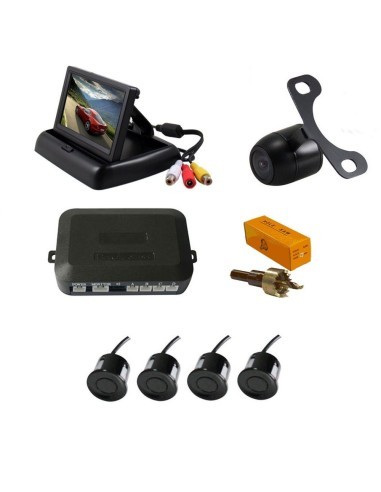

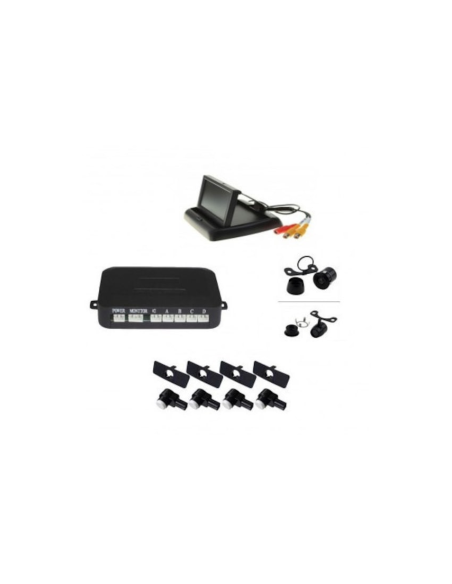

Parking sensors with video camera and 4.3" foldable LCD display S612-P OEM type 16.5mm

What is it and what is it used for?

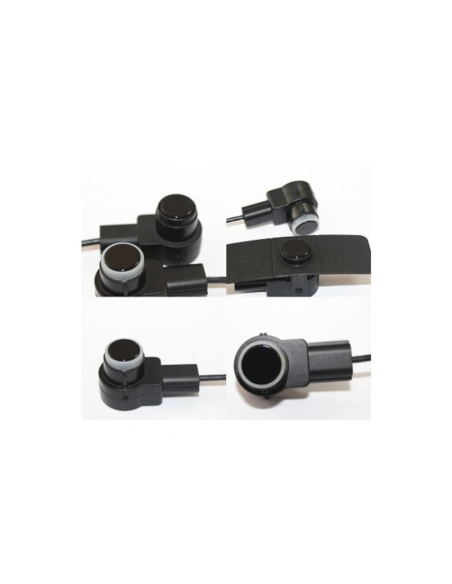

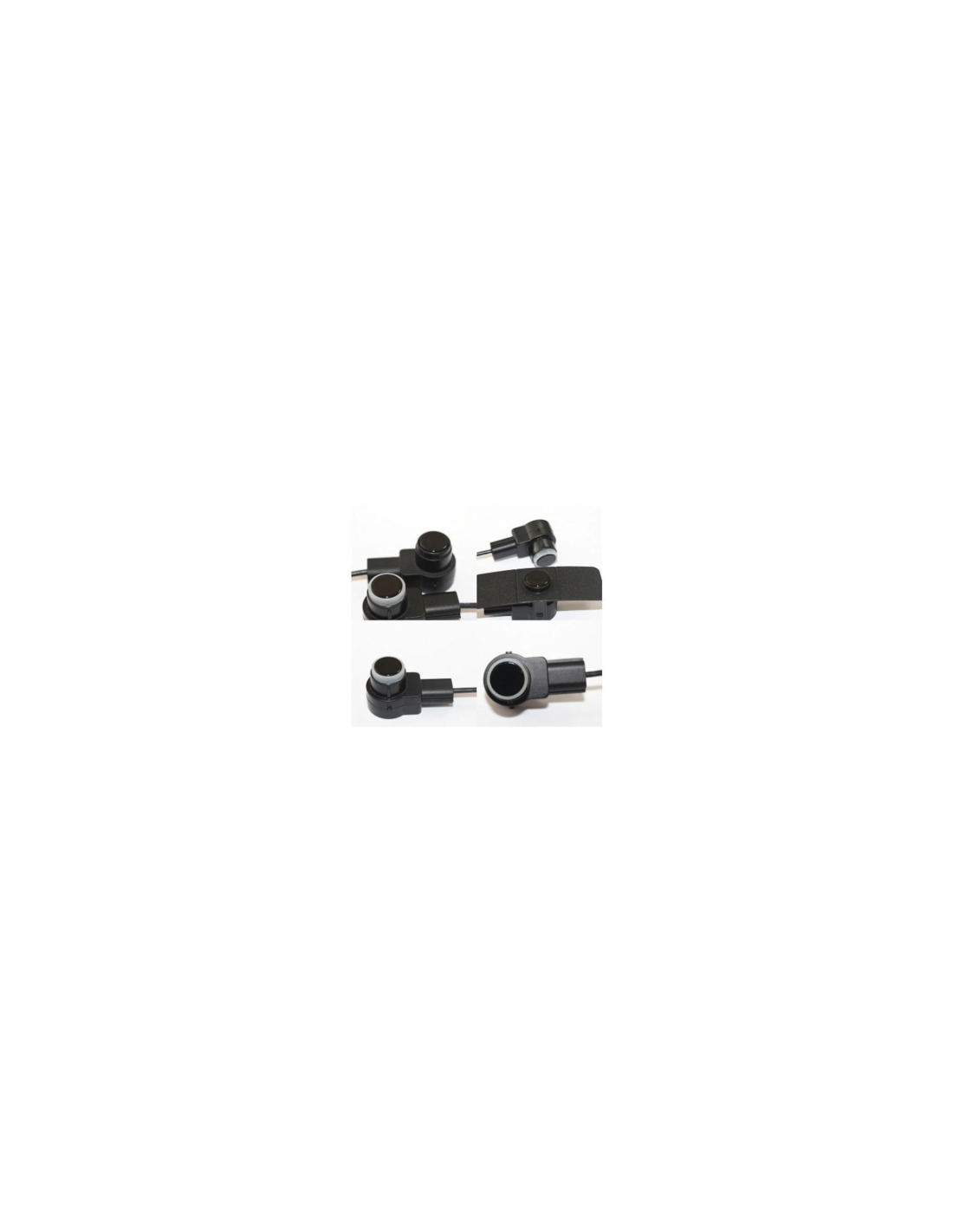

The parking system is equipped with 4 high-performance sensors that detect obstacles in the area they are directed. The number of 4 parking sensors allows for very good coverage of the rear of the car when reversing, thus eliminating the risk of hitting obstacles.

Technical specifications

• Digital display with LCD and four parking sensors
• Light indicator directs left, center, and right
• Ascending acoustic alarm to avoid collision
• In reverse, the sensors automatically detect obstacles
• Alarm distance: 0 - 2 m
• Automatically activates with reverse gear
• Obstacle detection distance: 0 – 2 m
• Distance displayed on the screen: 30 cm – 2 m
• Water, snow, and wind resistant
• Sound warning

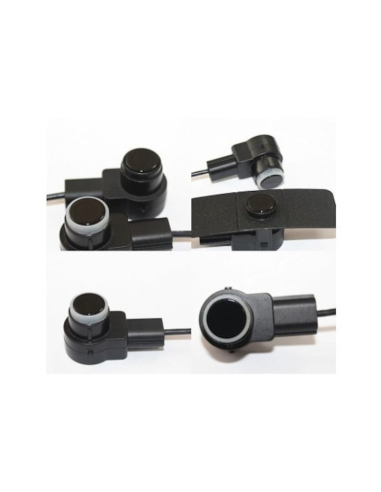

• Sensor diameter: 16.5 mm
• Power supply: DC12V

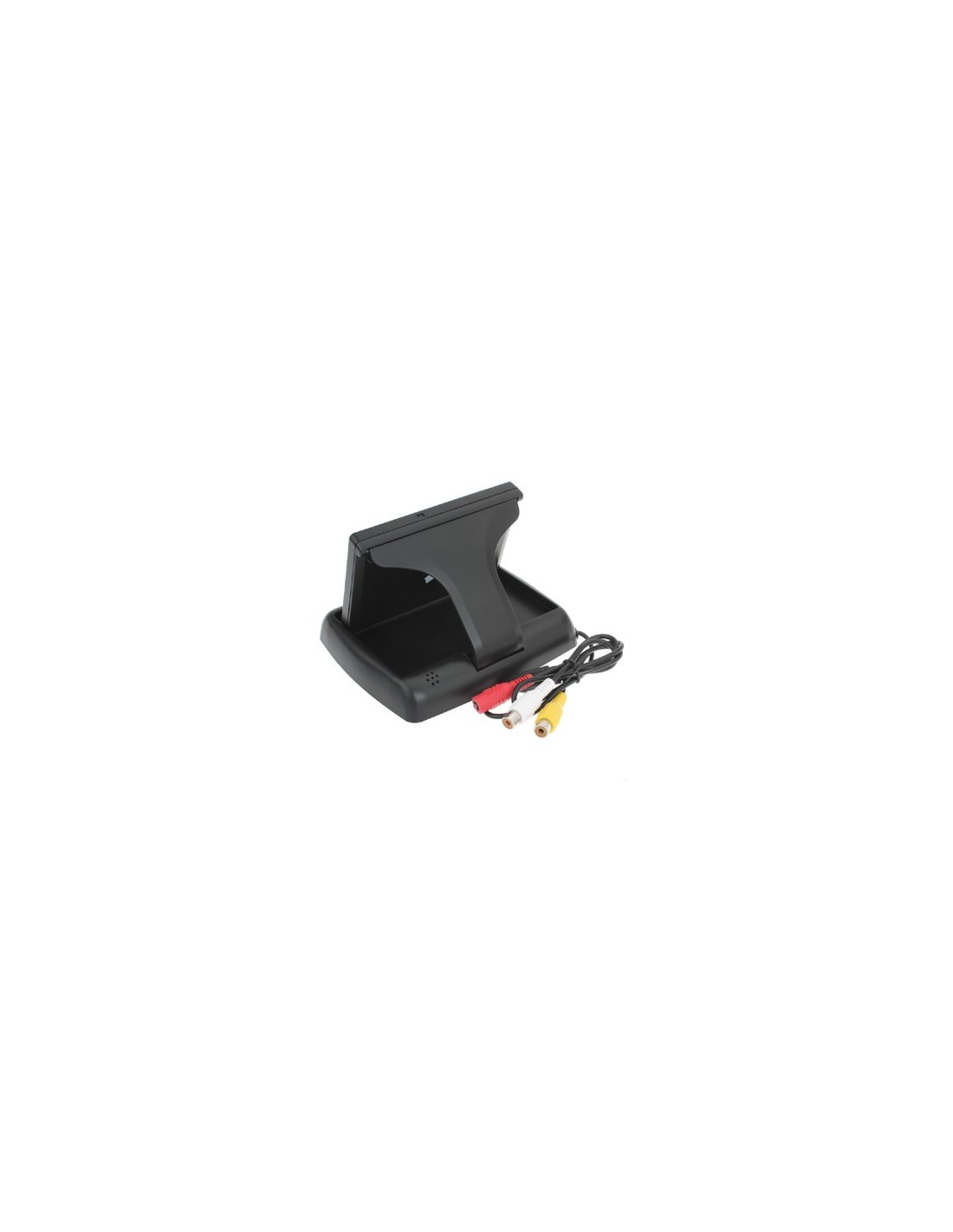

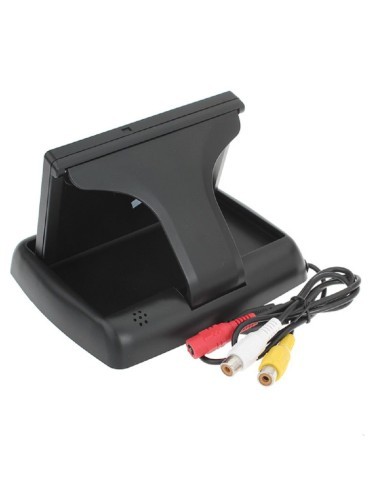

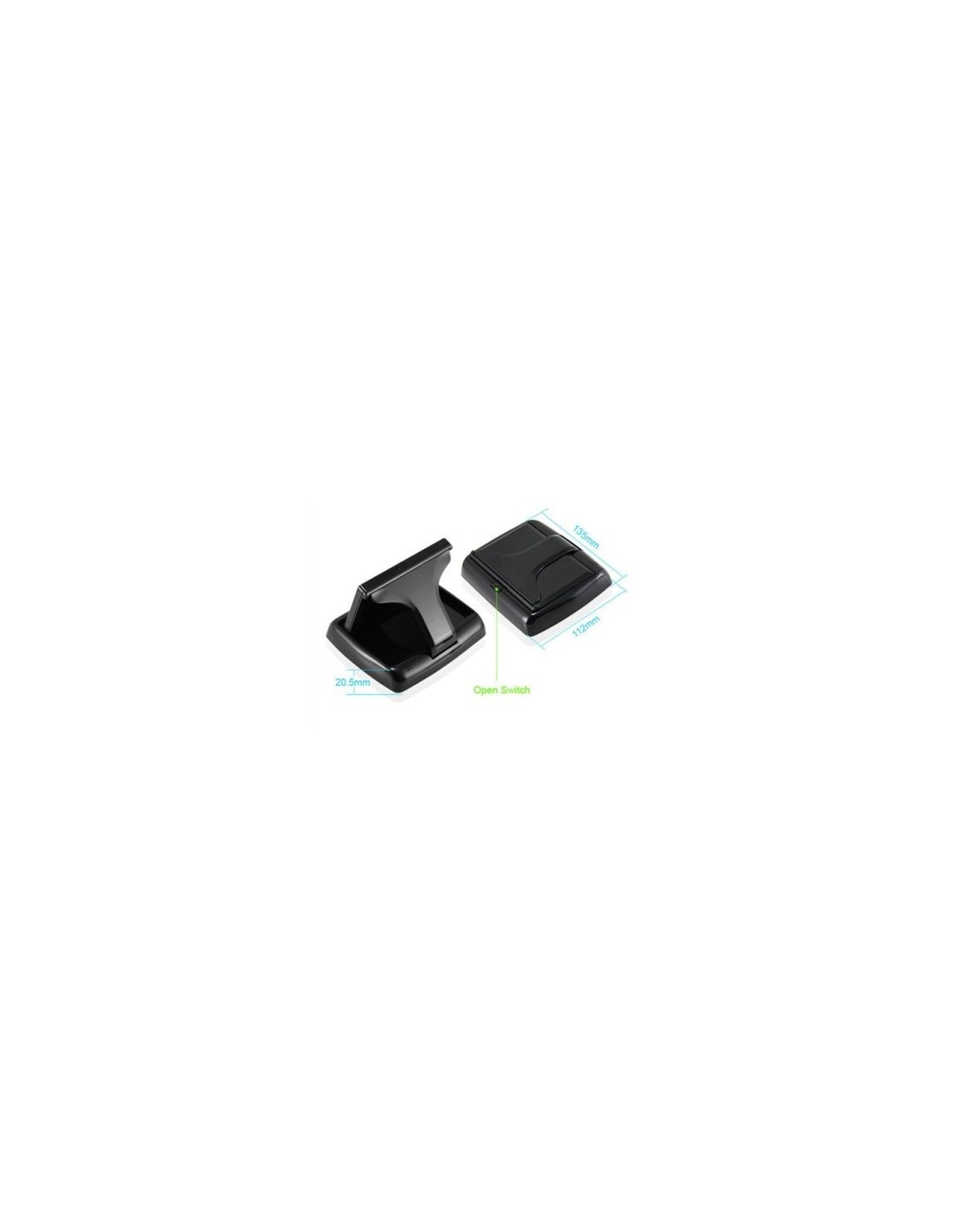

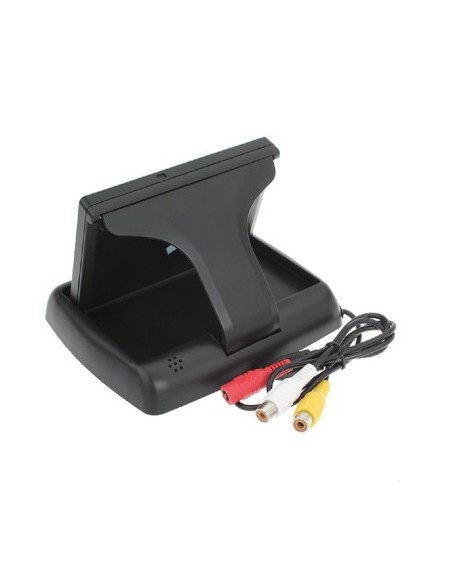

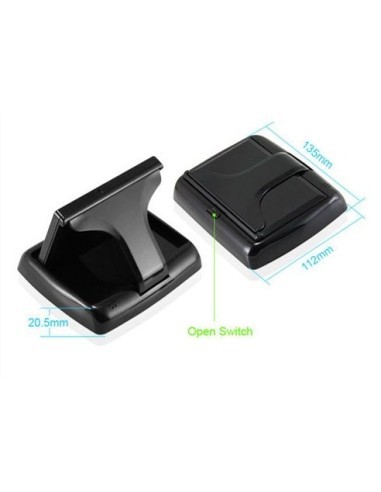

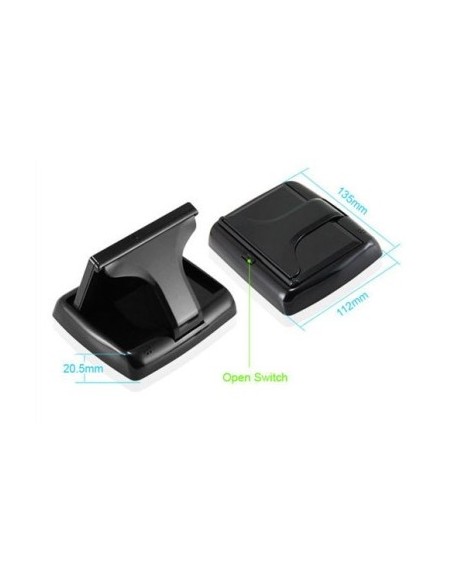

• Display size: 4.3"
• Format: 16:9 (4:3)
• Resolution: 480 x 272
• PAL/NTSC
• Video inputs: 2 (camera input + secondary input)
• Contrast: 300:1
• Operating temperature: -30~+70
• Viewing angle of 170 degrees
• Metal housing, shock resistant
• Small and compact design
• Completely waterproof (Protection Class IP67)
• Easy installation
• Color: black
• Camera with two mounting systems: mounting in the bar by drilling or mounting with the help of a butterfly-type metal bracket
• TV System: NTSC
• Image sensor: Color CMOS
• Pixels: 688x488
• Resolution: 420 TV Lines
• Power supply voltage: DC 12V
• Operating temperature: -30 - +70 degrees Celsius
• Water resistance - IP67, Shock resistance
• Power supply voltage: 9 - 16 V DC
• Nominal current: 20 mA - 200 mA
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 °C - +80 °C

In what situations is it used in practice?

Professional use

• Used in commercial parking lots to avoid collisions.
• Frequently used in car fleets for monitoring parking space.

Personal use

• Ideal for drivers who have difficulty maneuvering the car in tight spaces.
• Used by drivers to prevent accidents while parking.

Instructions for use

1. Fix the sensors in the rear bar of the car according to the specifications in the manual.
2. Use the included drilling tool in the kit to mount the sensors.
3. Secure the central unit in the trunk in a place protected from moisture.
4. Mount the display over the car's rearview mirror.

What do customers appreciate about this type of product?

Customers appreciate parking systems for their efficiency in detecting obstacles and ease of use. Many also mention the usefulness of sound alarms that warn of proximity to an obstacle. The compact design and weather resistance are also positive aspects noted by users.

Frequently asked questions about this type of product

Question: What distance do the sensors detect?

Answer: The sensors can detect obstacles at a distance of 0 - 2 m.

Question: Is the system waterproof?

Answer: Yes, the system is waterproof, snow, and wind resistant.

Question: How is the display mounted?

Answer: The display is fixed over the car's rearview mirror.

Applicability and use

The parking sensor system is used in various situations, both in public and private parking. It is a useful tool for drivers, helping them avoid collisions and maneuver more easily in tight spaces.
