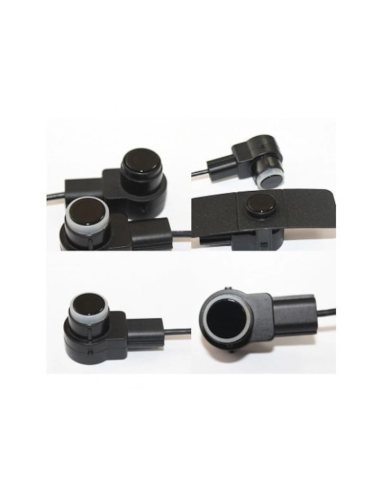

OEM Type S502 Parking Sensors with Mirror Display 16.5mm

What is it and what is it used for?

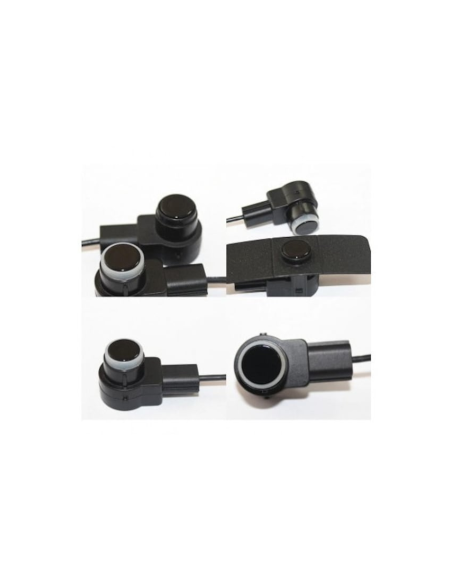

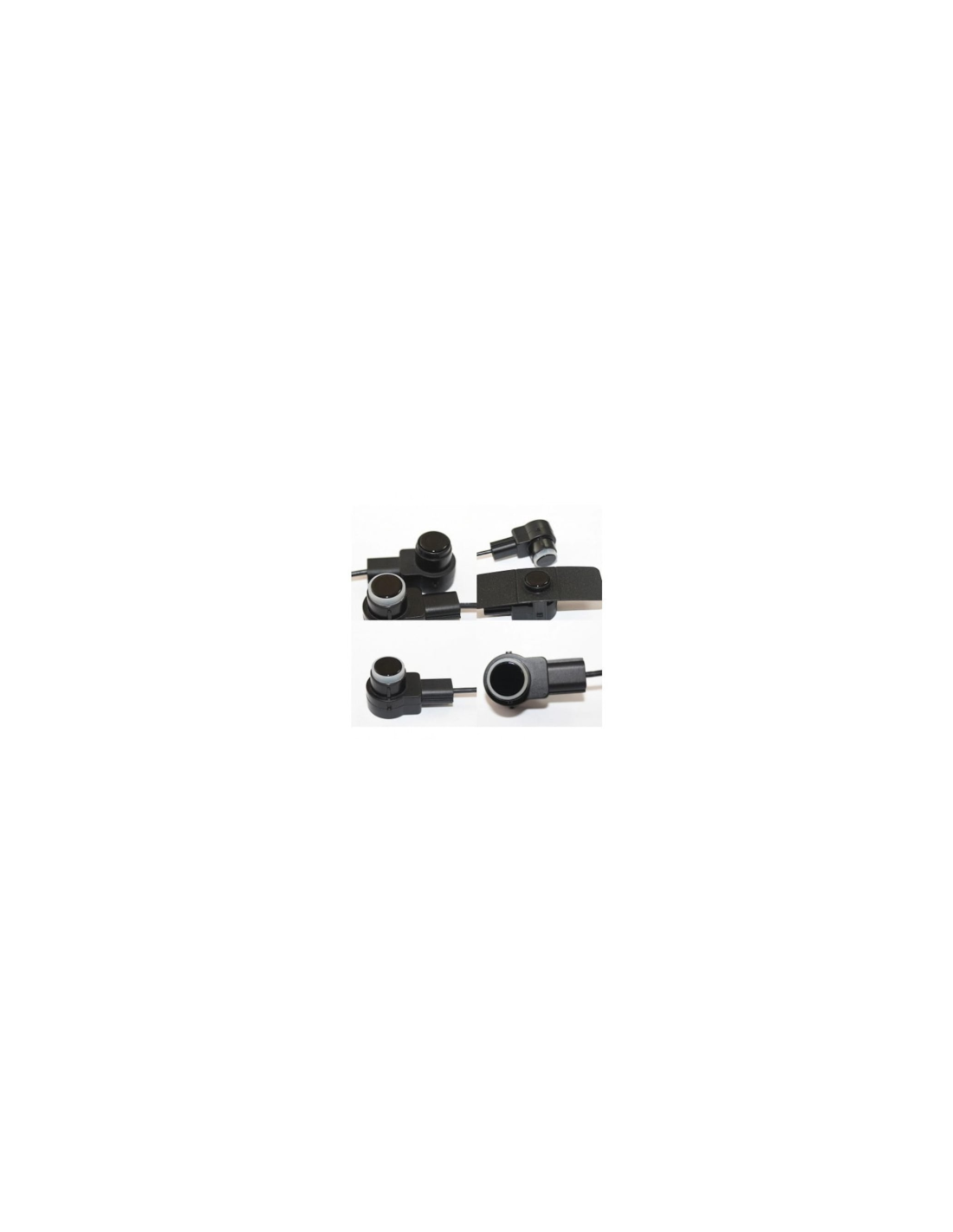

The parking system is equipped with 4 high-performance sensors that detect obstacles in the area they are directed. The number of 4 parking sensors allows for very good coverage of the rear of the vehicle when reversing, thus eliminating the risk of hitting obstacles.

Technical Specifications

• Automatically activates with reverse gear
• Obstacle detection distance: 0 – 2 m
• Distance displayed on the screen: 30 cm – 2 m
• Water, snow, and wind resistant
• Audible warning
• Sensor diameter: 16.5 mm
• Power supply voltage: 9 - 16 V DC
• Nominal current: 20 mA - 200 mA
• Ultrasonic frequency: 40 KHz
• Operating temperature: -30 °C - + 80 °C

In what situations is it used in practice?

Professional Use

• Used in auto services for installation in vehicles.
• Allows for easier maneuvering of vehicles in tight spaces.

Personal Use

• Helps avoid accidents during parking.
• Facilitates parking in narrow spaces.

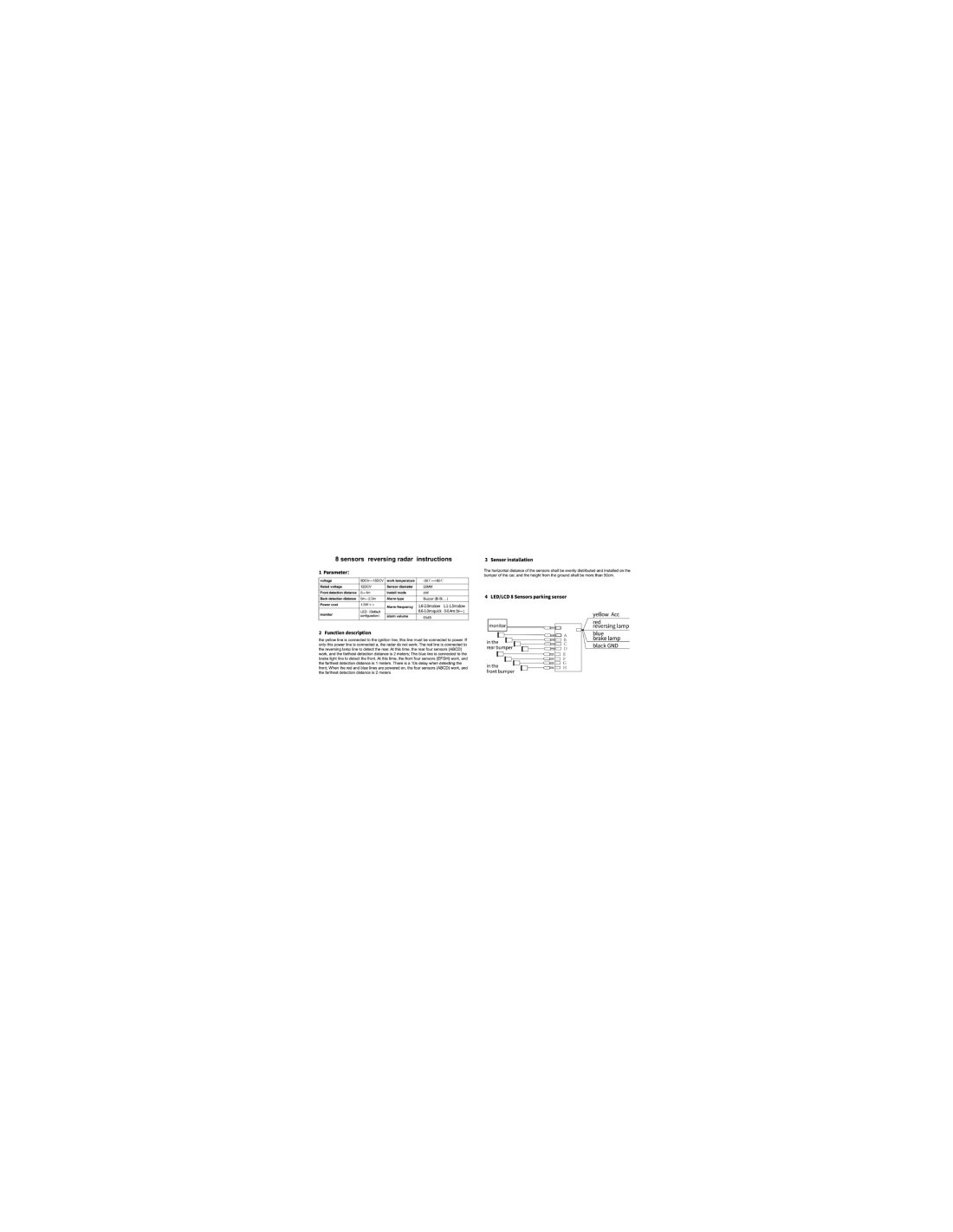

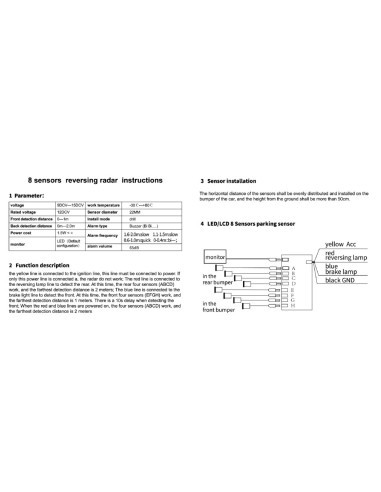

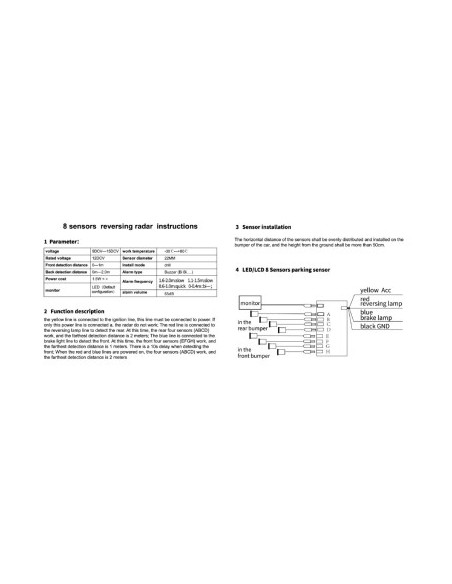

Instructions for Use

1. Install the central unit in the trunk, protected from moisture.
2. Fix the sensors in the rear bumper according to the manual.
3. Use the included drill to make holes in the bumper.
4. Attach the display to the rearview mirror.

What do customers appreciate about this type of product?

Customers appreciate the accuracy of the sensors in detecting obstacles. Additionally, the integrated design of the display on the rearview mirror is considered useful. Ease of installation and automatic operation in reverse gear are other positive aspects mentioned.

Frequently Asked Questions about this type of product

Question: Is it easy to install?

Answer: Yes, the product comes with a complete installation kit.

Question: What distance do the sensors detect?

Answer: The sensors can detect obstacles at a distance of 0 – 2 m.

Question: Is it weather-resistant?

Answer: Yes, the system is resistant to water, snow, and wind.

Applicability and Use

The parking sensors are primarily used to help drivers avoid collisions during parking maneuvers. This system is useful both in urban environments and in private parking lots.

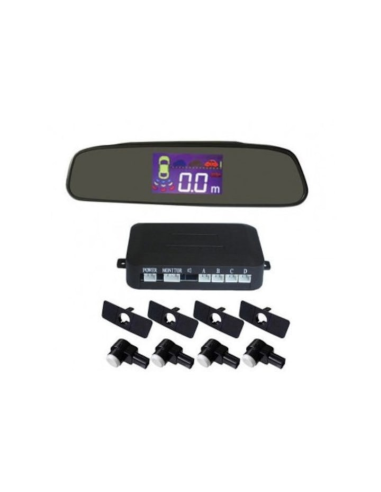

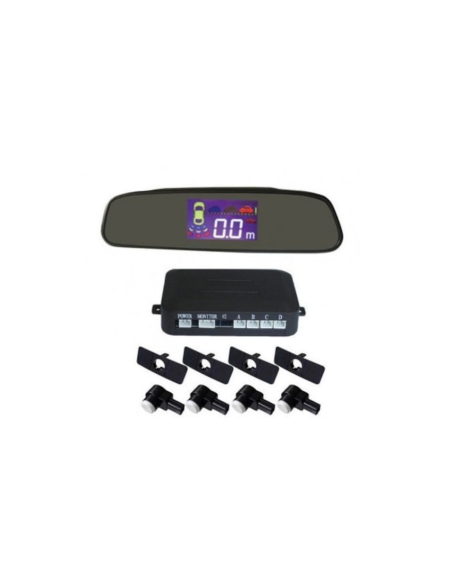

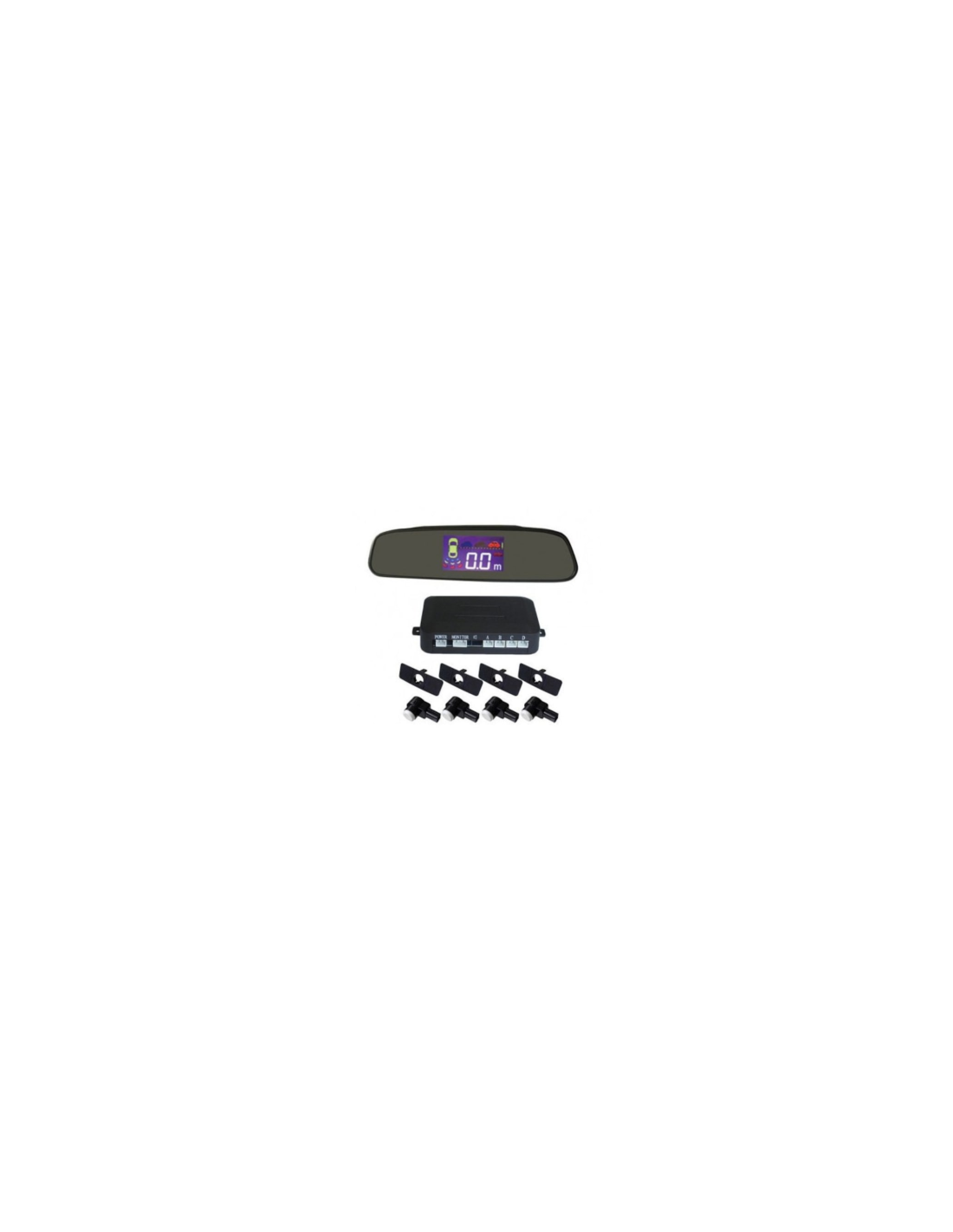

Contents of the Set

• Central unit
• Parking sensors
• Power cable
• Drill for bumper holes
• Rearview mirror with LCD display
• Installation instructions

Recommendation

It is recommended that the installation be carried out by a specialist to ensure the correct functioning of the system. This product can significantly contribute to safety during parking.
