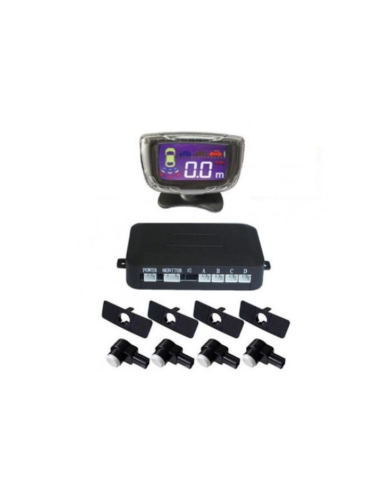

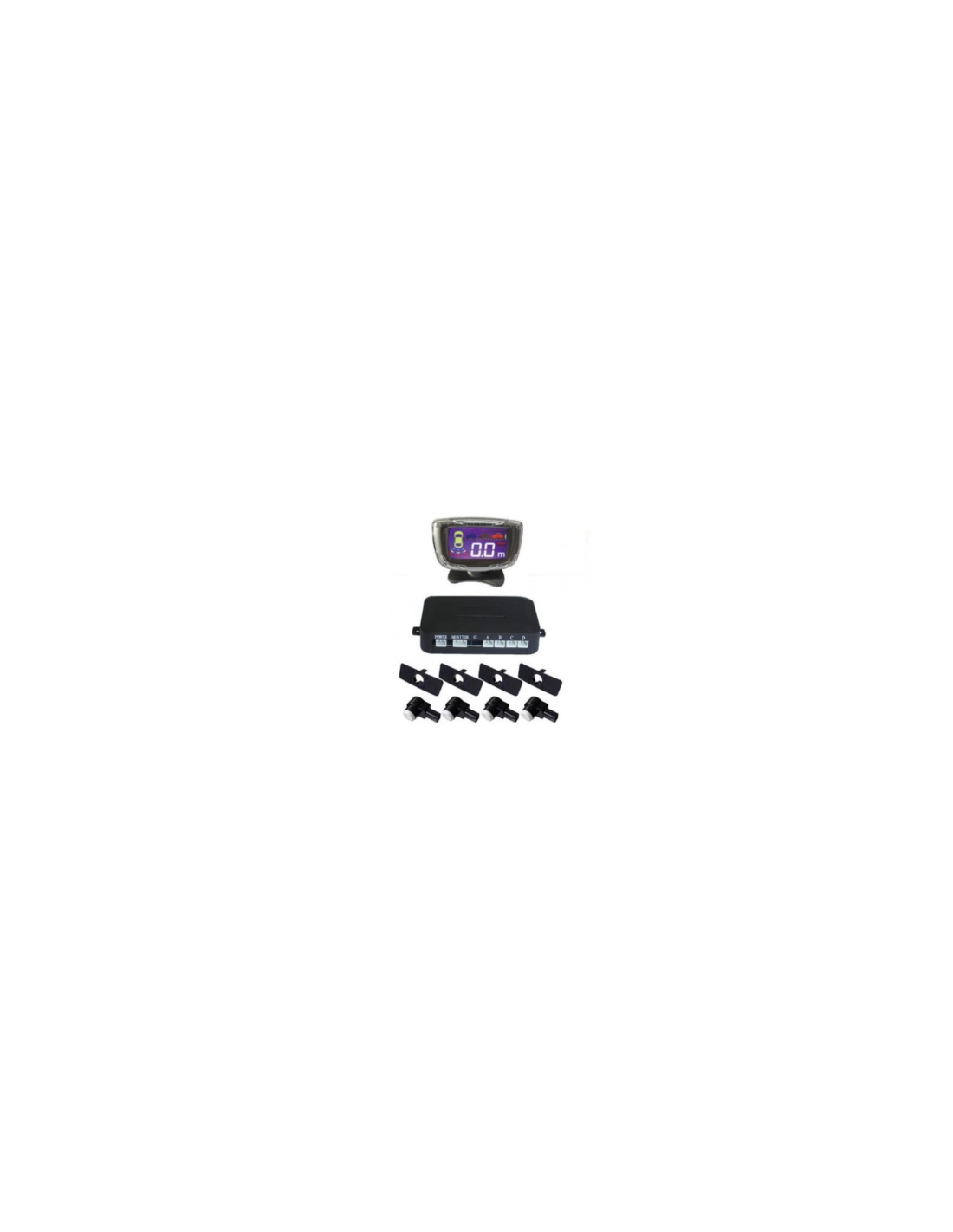

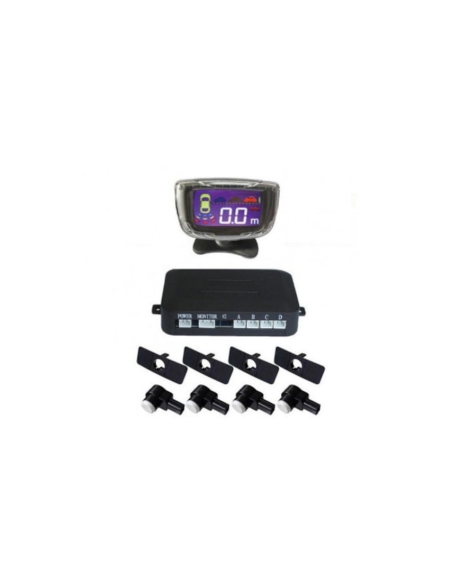

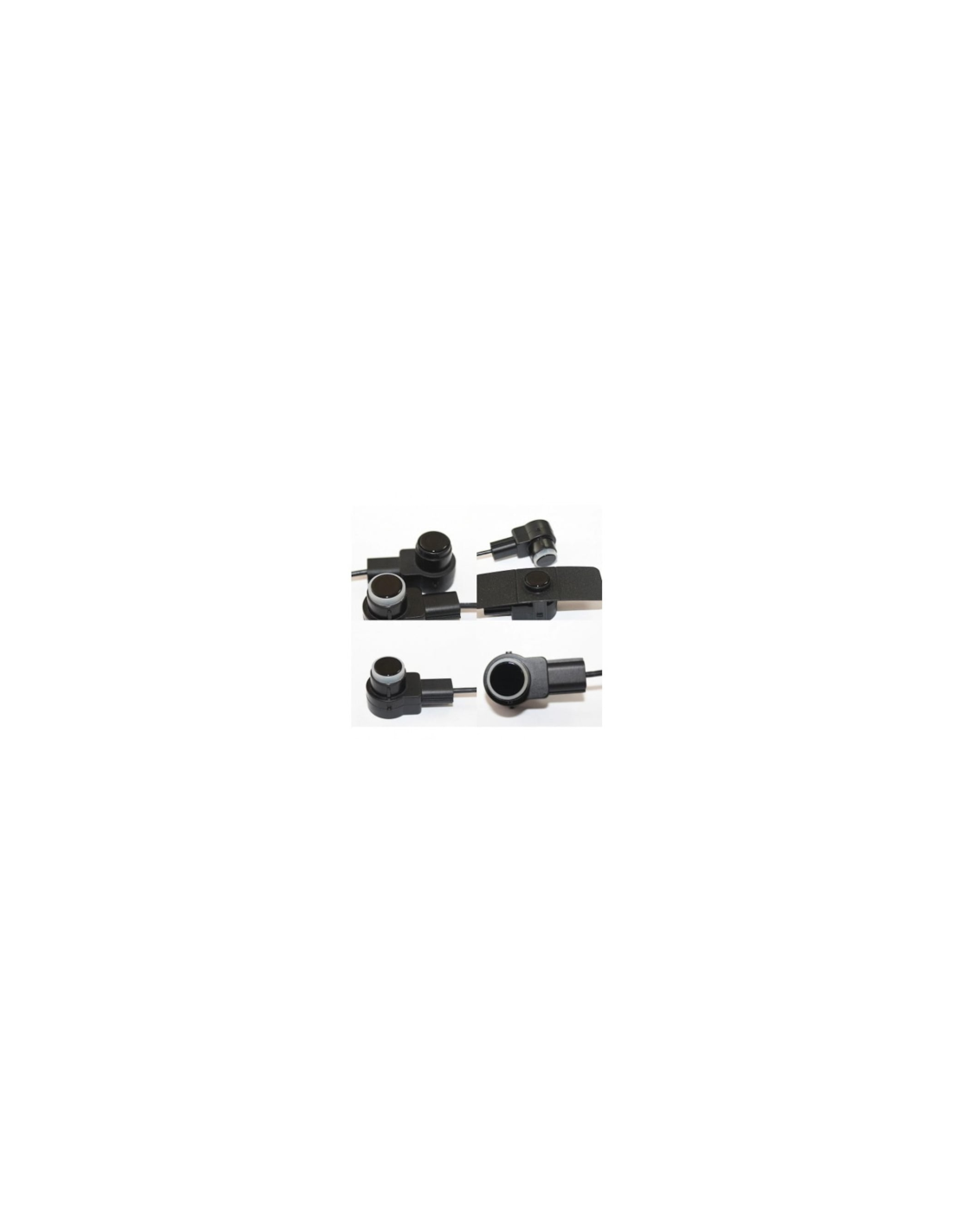

S500 OEM Type Parking Sensors with LED Display 16.5mm

Product description
The parking system is equipped with 4 high-performance sensors that detect obstacles in the area they are directed. The number of 4 parking sensors allows for very good coverage of the rear of the car when reversing, thus eliminating the risk of hitting obstacles.

Features
-Digital display with LEDs and four parking sensors
-Three colors, 7 bright lines for determining the distance to the obstacle
-The light indicator directs left, center, and right
-Ascending acoustic alarm to avoid collision
-In reverse, the sensors automatically detect obstacles
-Alarm distance: 0 - 2 m

How to install
-Easy to install, the product comes with a complete installation kit
-The sensors are fixed in the rear bumper of the car according to the specifications in the product manual, drilling the bumper with the special drill bit included in the kit
-The central unit is fixed in the trunk in a place protected from moisture
-The display is fixed anywhere on the car dashboard with double-sided tape

Technical specifications

- Automatically activates with reverse gear

- Obstacle detection distance: 0 – 2 m

- Distance displayed on the display: 30 cm – 2 m

- Water, snow, and wind resistant

- Sound warning

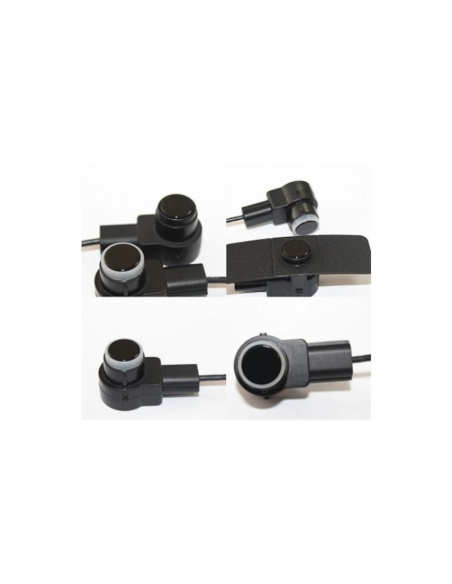

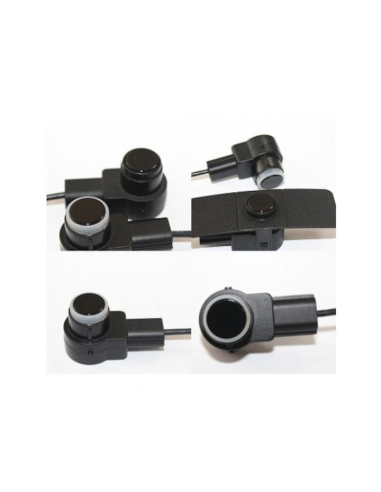

- Sensor diameter: 16.5 mm

Technical Parameters

Power supply voltage: 9 - 16 V DC
Nominal current: 20 mA - 200 mA

Ultrasonic frequency: 40 KHz
Operating temperature: -30 ° C - + 80 ° C

Package contents

Central unit

Parking sensors

Power cable

Drill bit for bumper

LED display

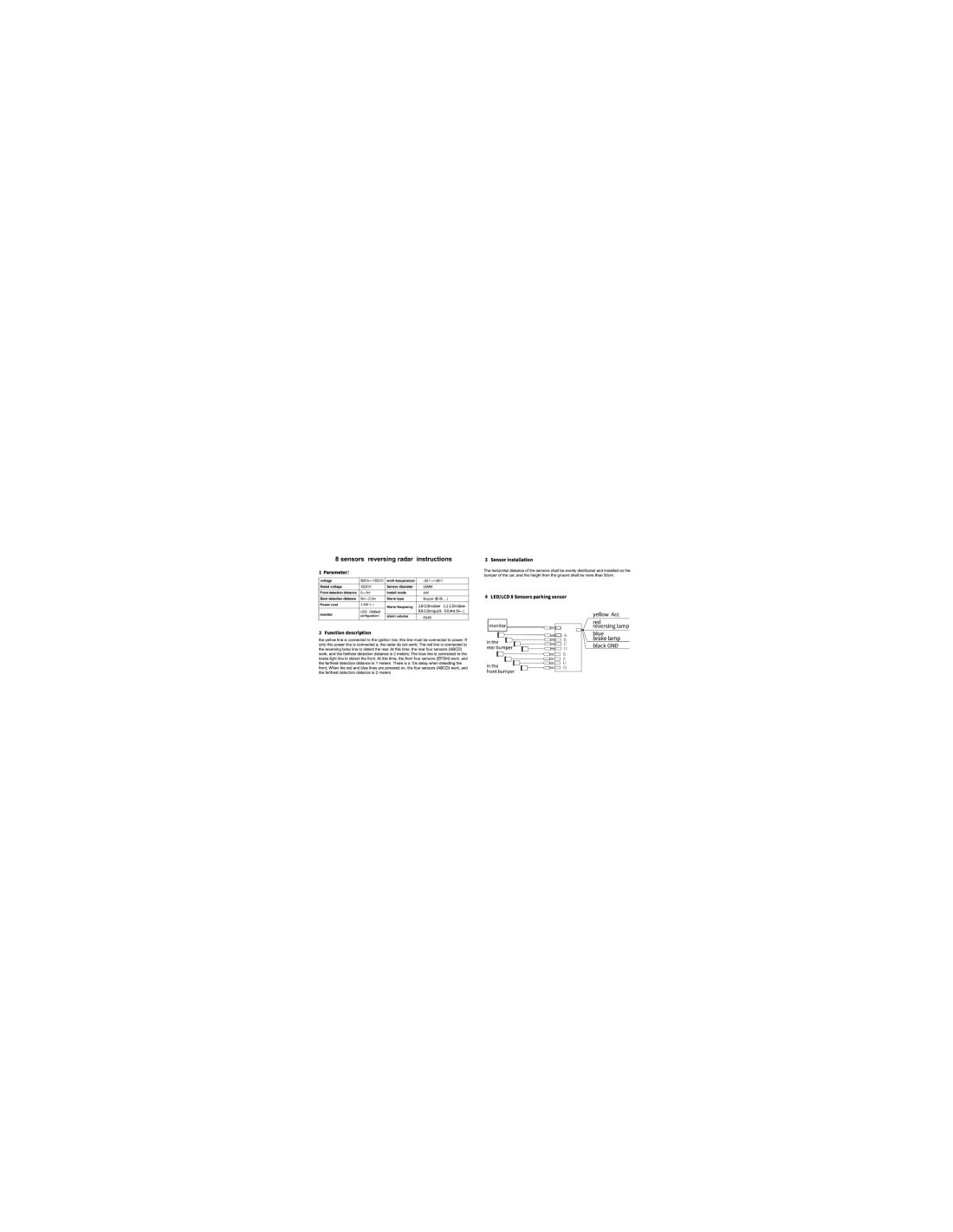

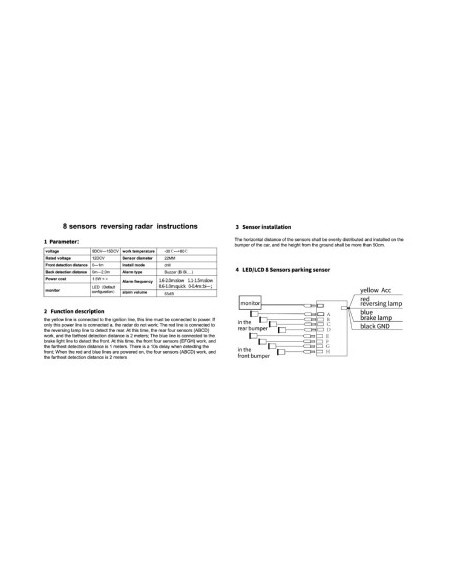

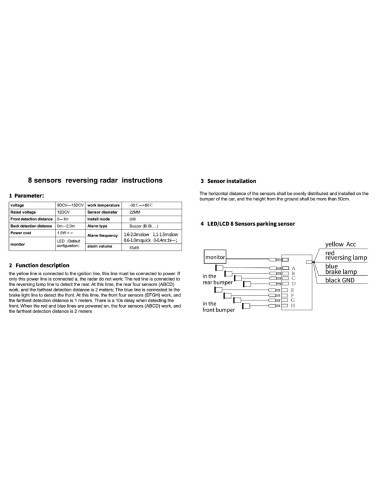

Installation instructions

Available colors*: White, Silver, Black,

*The sensors can be painted by the buyer in the original color of the car

12-month warranty
