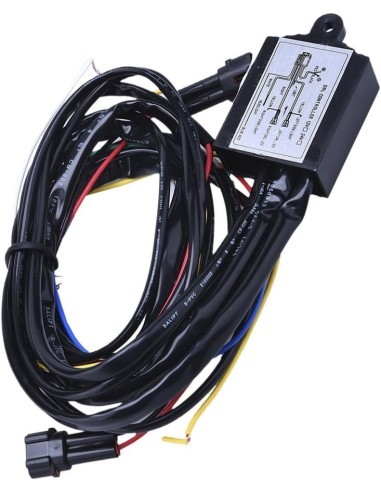

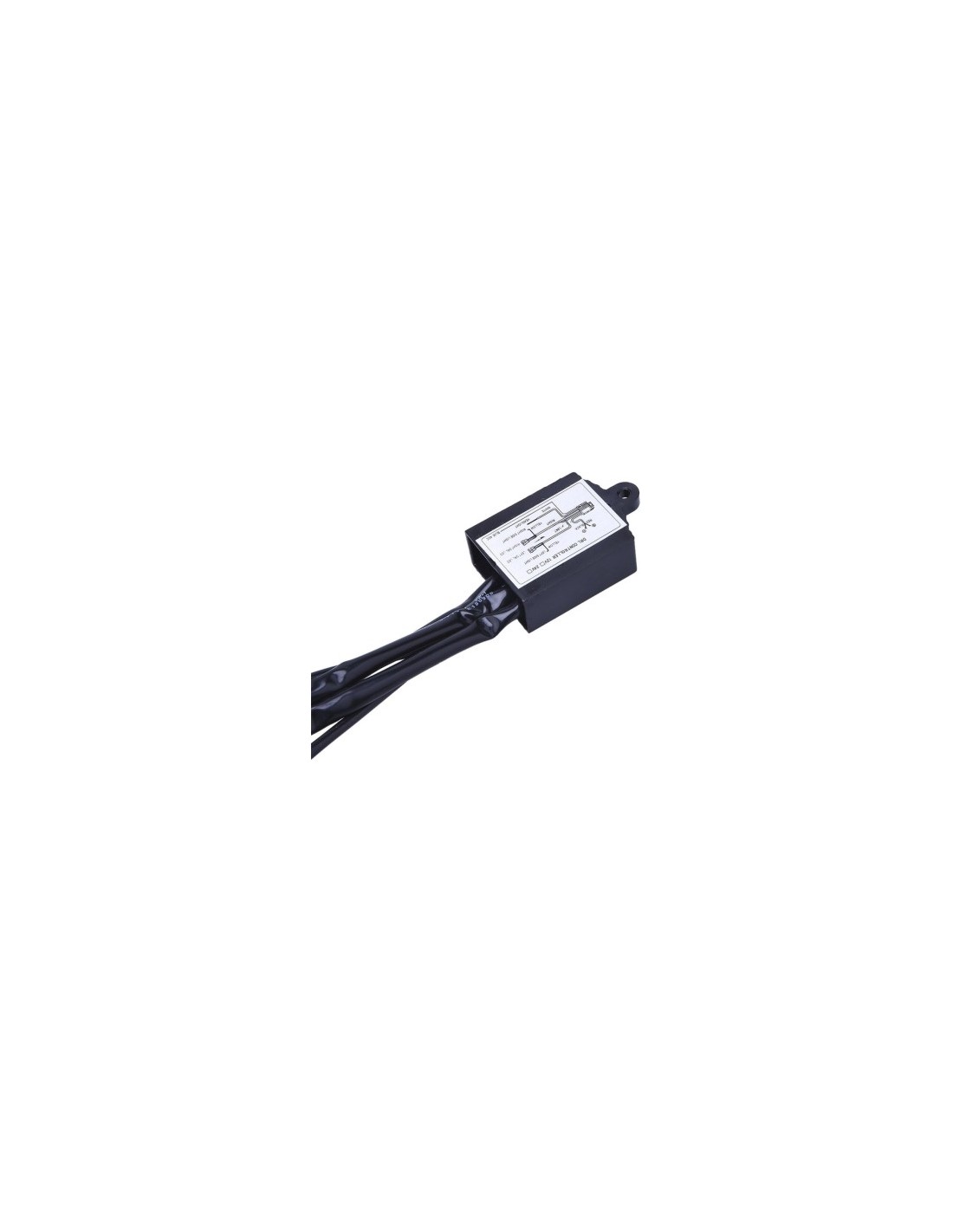

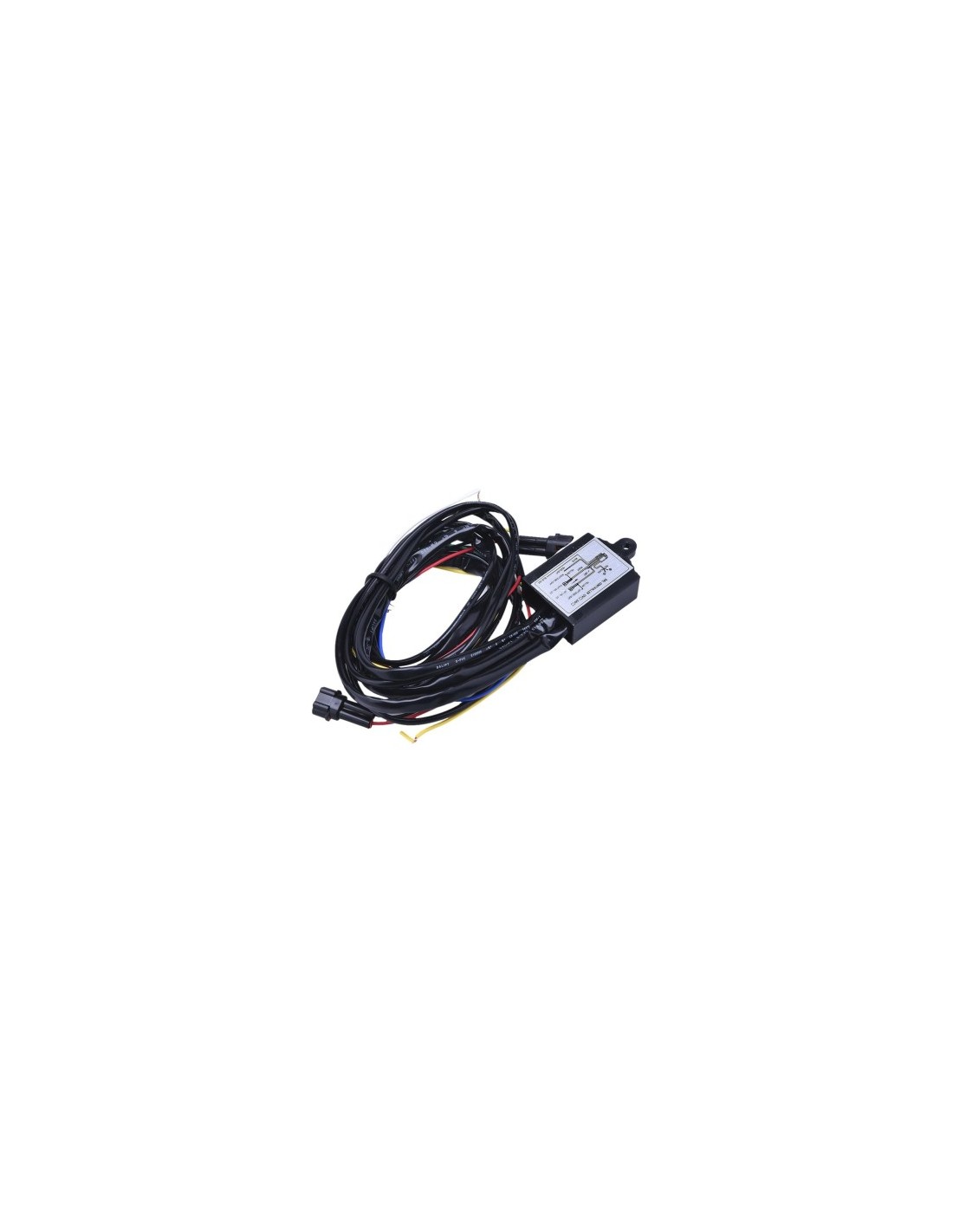

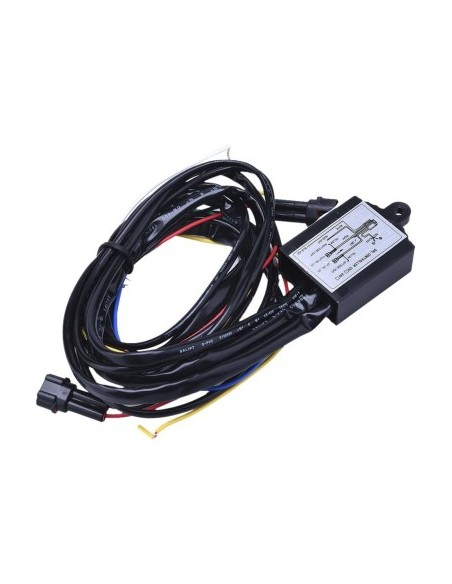

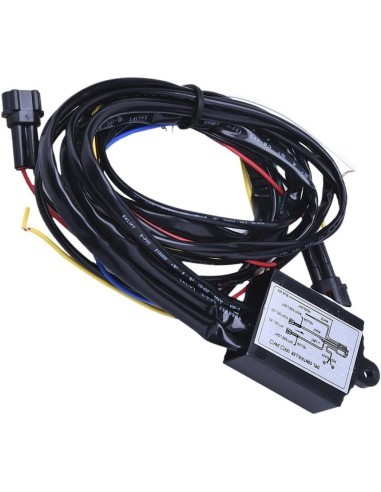

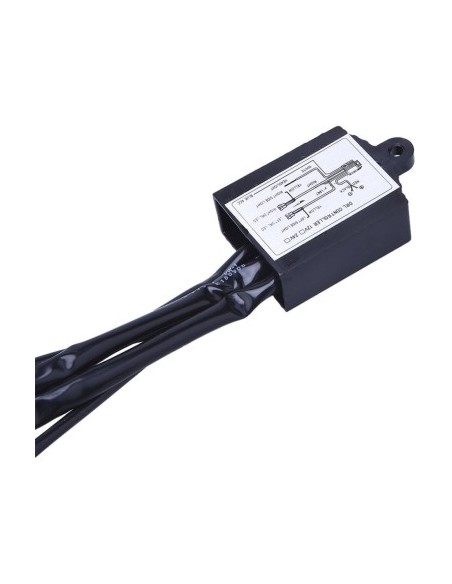

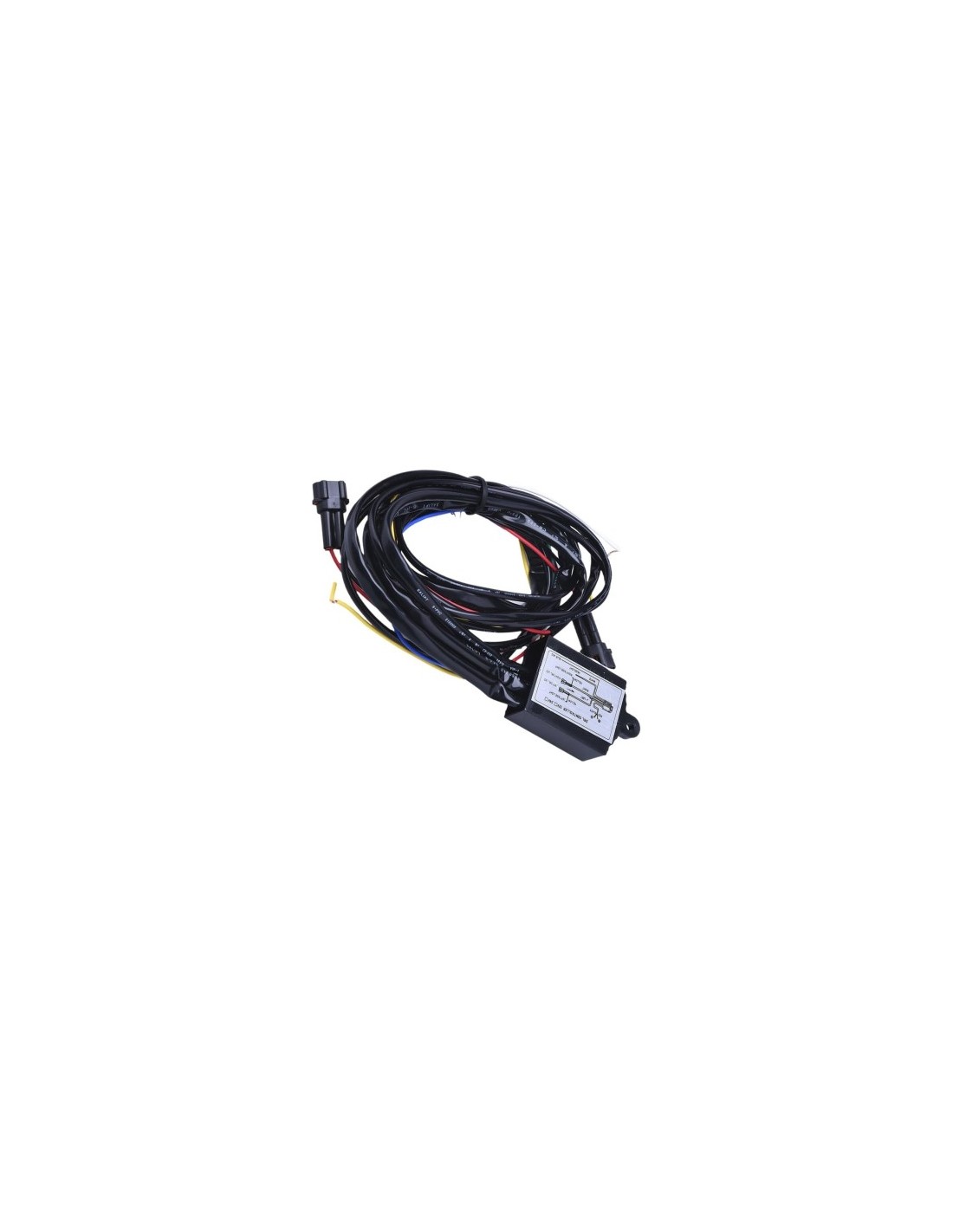

Daytime Running Light Module DRL with 4 functions, universal 12V

What is it and what is it used for?

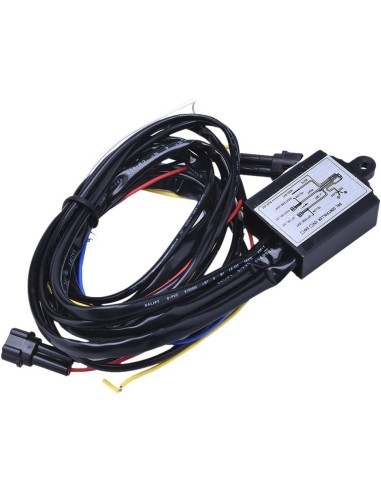

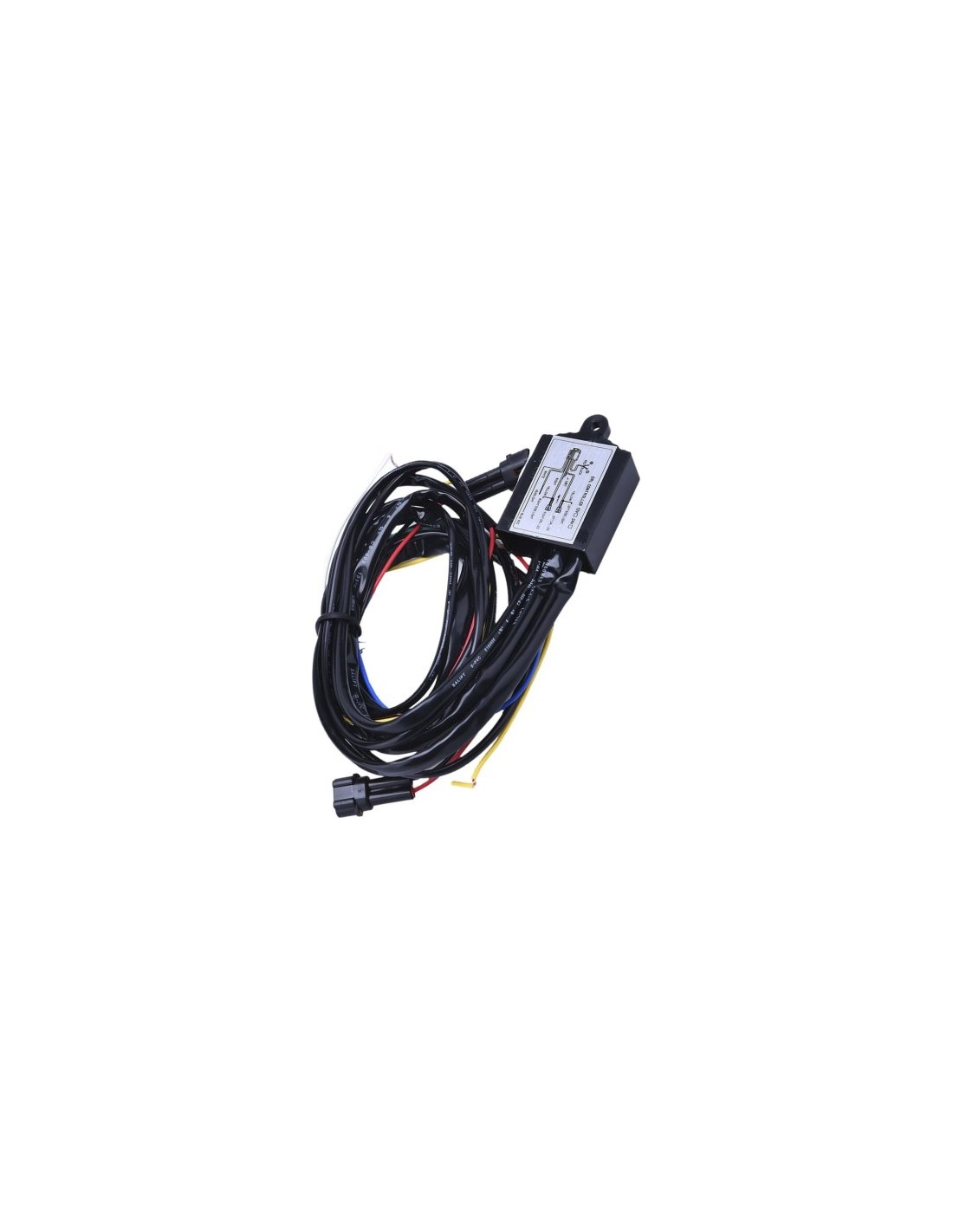

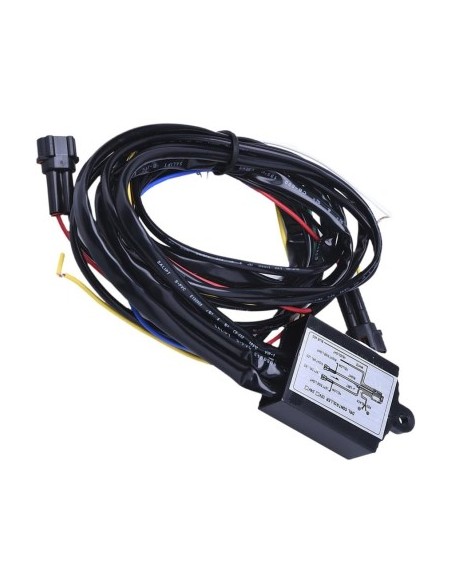

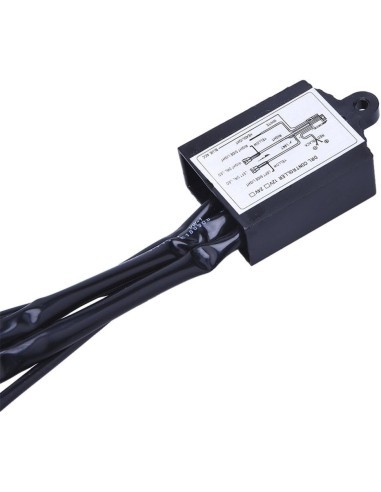

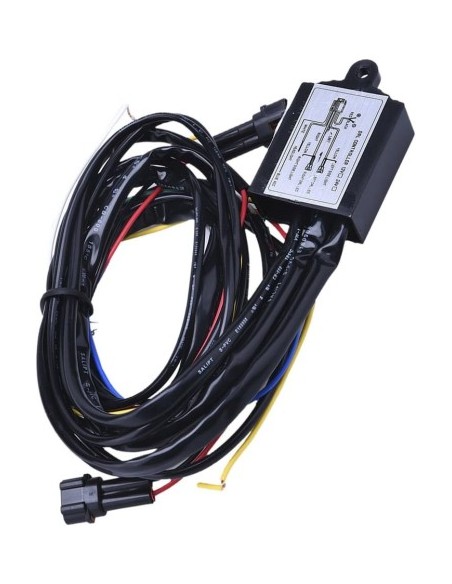

The universal 12V daytime running light module is a device designed for installation on any car. It operates at a voltage of 12V and is designed to provide efficient and safe lighting during the day. The module features four functions: signaling, flash, off-delay, and dimming, making it versatile in use.

Technical specifications

• Power supply: 12V
• 4 functions: signaling, flash, off-delay, dimming (for nighttime driving)
• The lights turn on automatically when the engine starts
• Compatible with 12V vehicles
• Works with lamps that consume a maximum of 30W combined

In what situations is it used in practice?

Professional use

• Installation on commercial vehicles to ensure increased visibility in traffic.
• Use in vehicle fleets to standardize daytime lighting.

Personal use

• Installation on personal cars to enhance safety in traffic.
• Provides an efficient lighting solution for drivers who frequently drive during the day.

Compatibility

No clear data is available regarding compatibility with specific car brands or models.

Compatible Codes

No compatible codes are available.

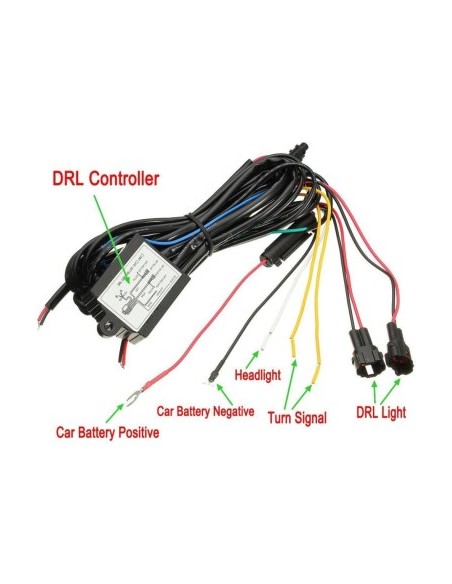

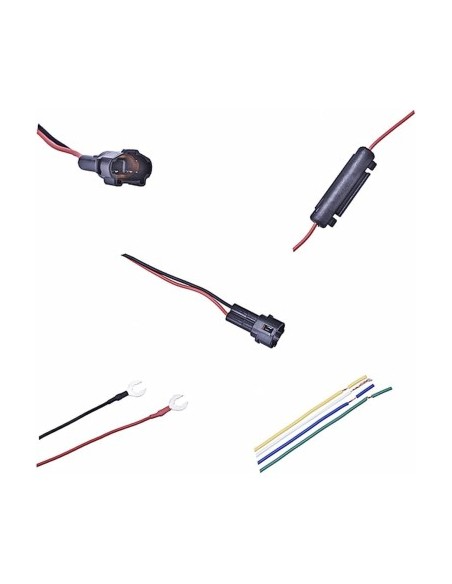

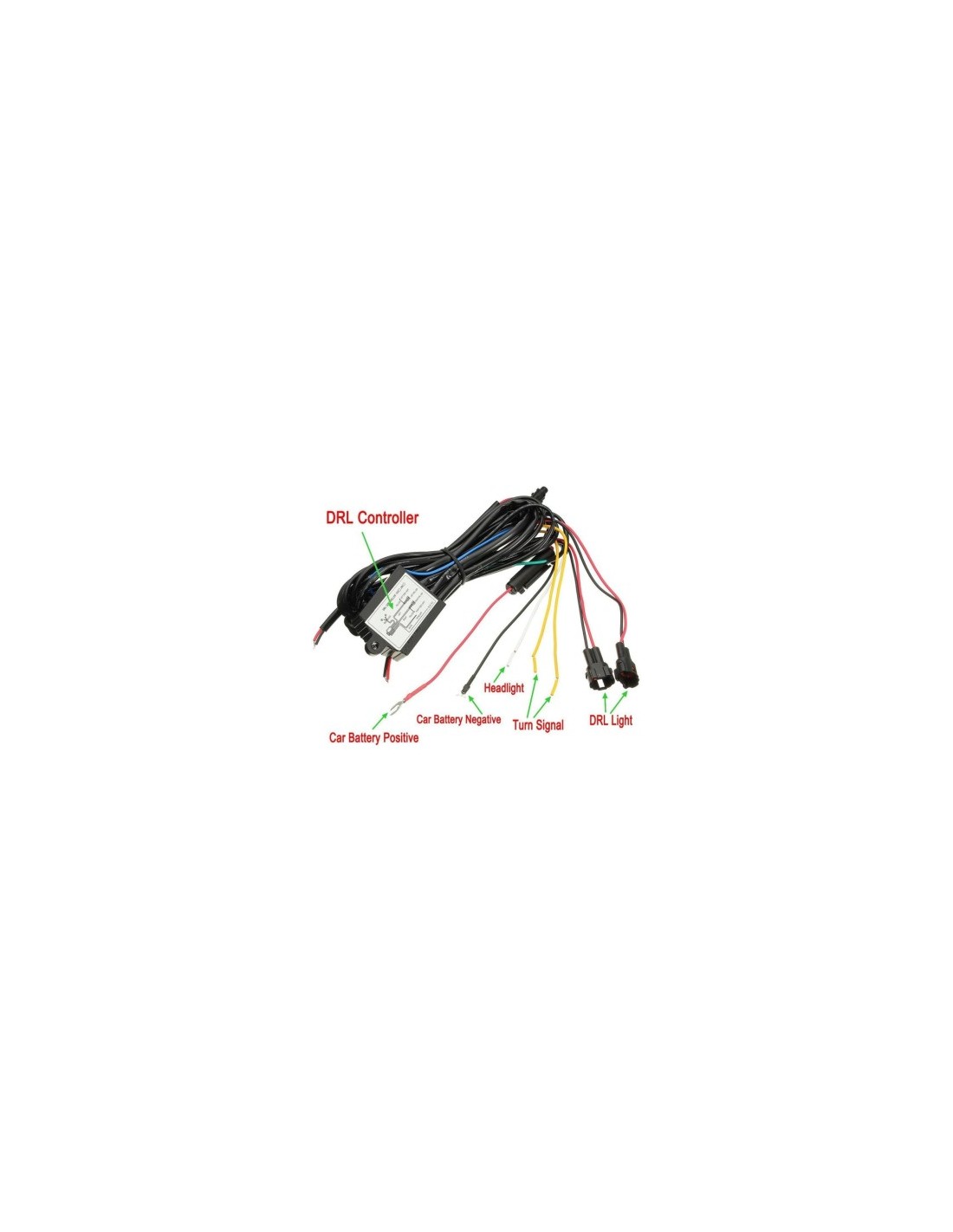

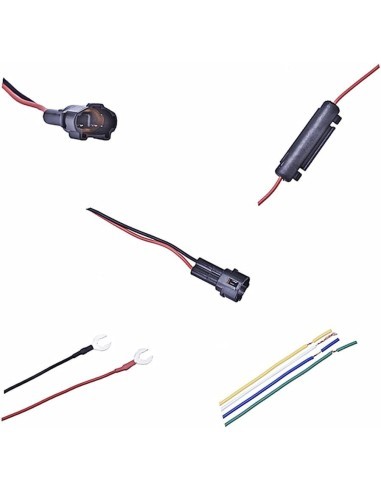

Instructions for use

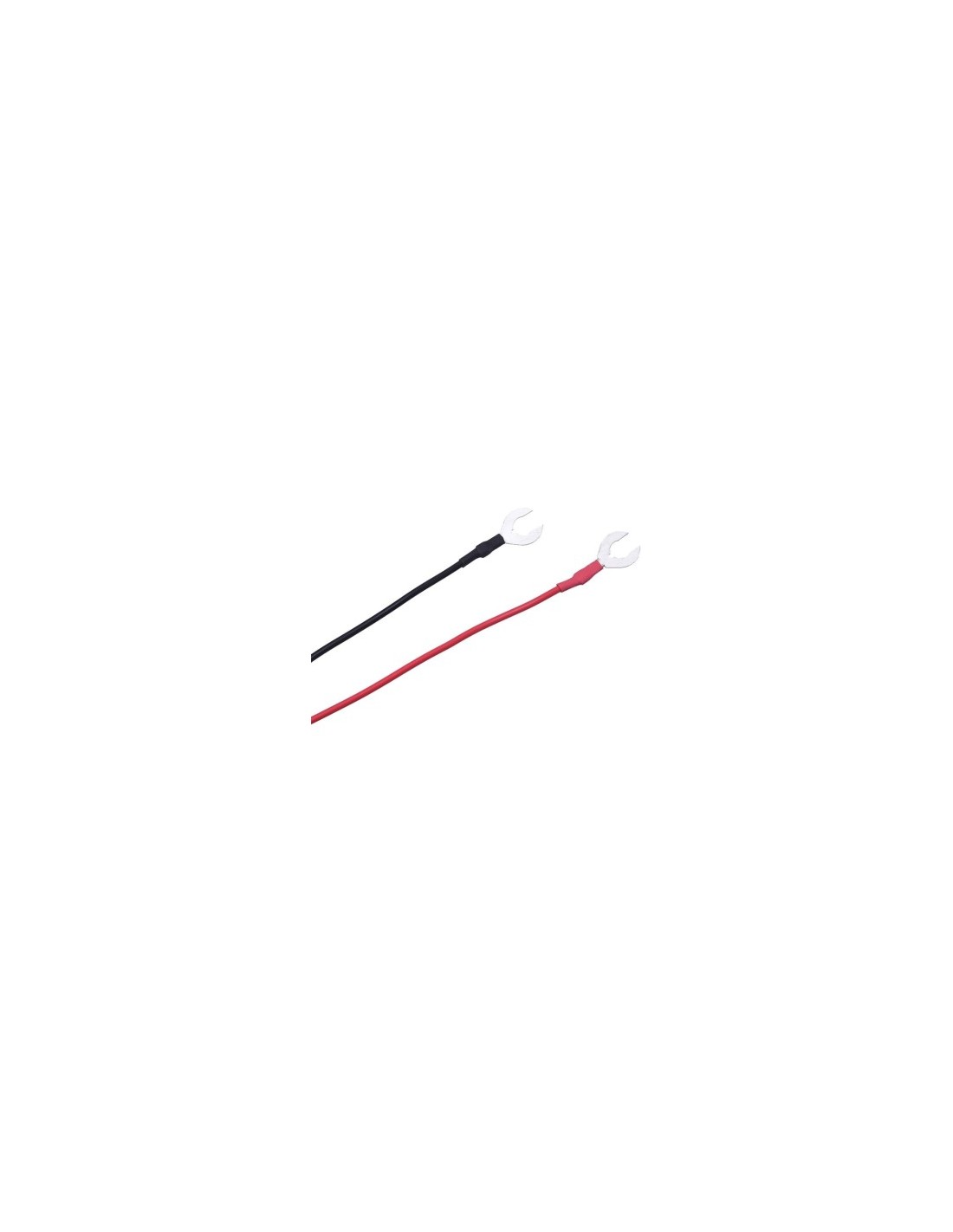

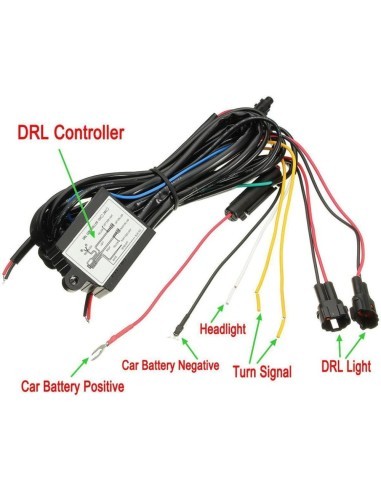

1. Connect the red wire to the + battery.
2. Connect the black wire to the - battery.
3. Connect the blue wire to ACC (positive ignition).
4. Connect the white wire to + low beam to reduce the intensity of the daytime lights when the headlights are on.
5. Connect the yellow wire to + left and right turn signals.
6. The green wire is optional and connects to + horn to activate the flashes when honking.
7. It is recommended to install in an authorized service to ensure proper operation.

What do customers appreciate about this type of product?

Customers appreciate the versatility of the daytime light module due to its four available functions. The ease of installation and compatibility with most 12V cars are also valued. Durability and automatic operation when the engine starts are other positive aspects mentioned by users.

Frequently asked questions about this type of product

Question: Is the module compatible with all cars?

Answer: The module is designed to be universal, but it is recommended to check your vehicle's specifications.

Question: What is the maximum power that the connected lamps can have?

Answer: The module works with lamps that consume a maximum of 30W combined.

Question: Is professional installation necessary?

Answer: Although installation can be done by users, it is recommended to install in an authorized service to ensure proper operation.

Applicability and use

The daytime light module is useful in various situations, especially to increase the visibility of the vehicle during the day. It is ideal for drivers who want to ensure they are seen in traffic, thus contributing to road safety.

Contents of the set

No information is available about the contents of the set.

Recommendation

This daytime light module is a practical solution for any driver looking to improve vehicle visibility or add functionality to their car. It is important to follow the installation instructions to benefit from all its features.
