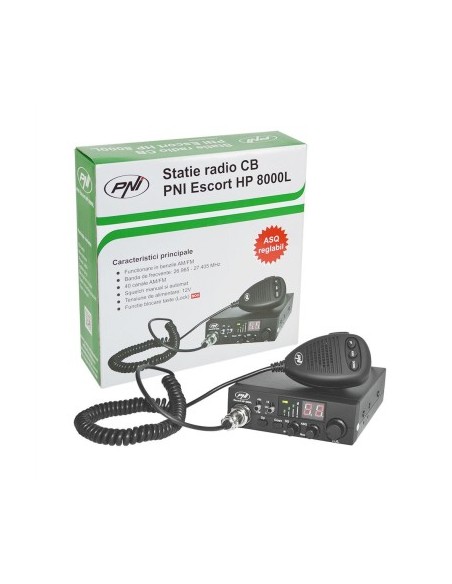

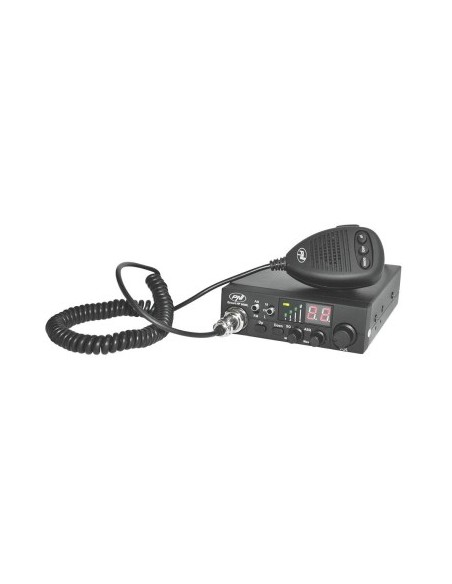

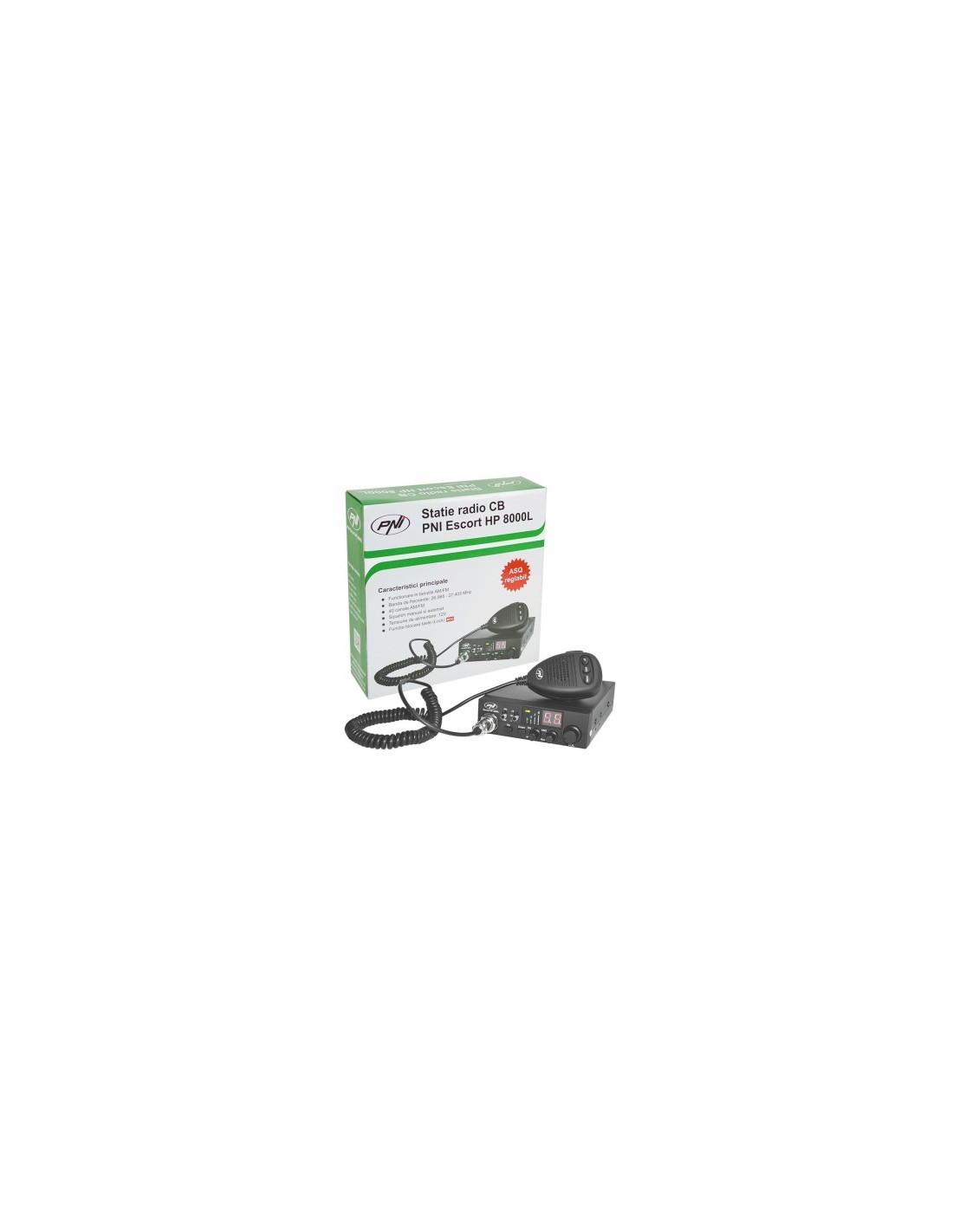

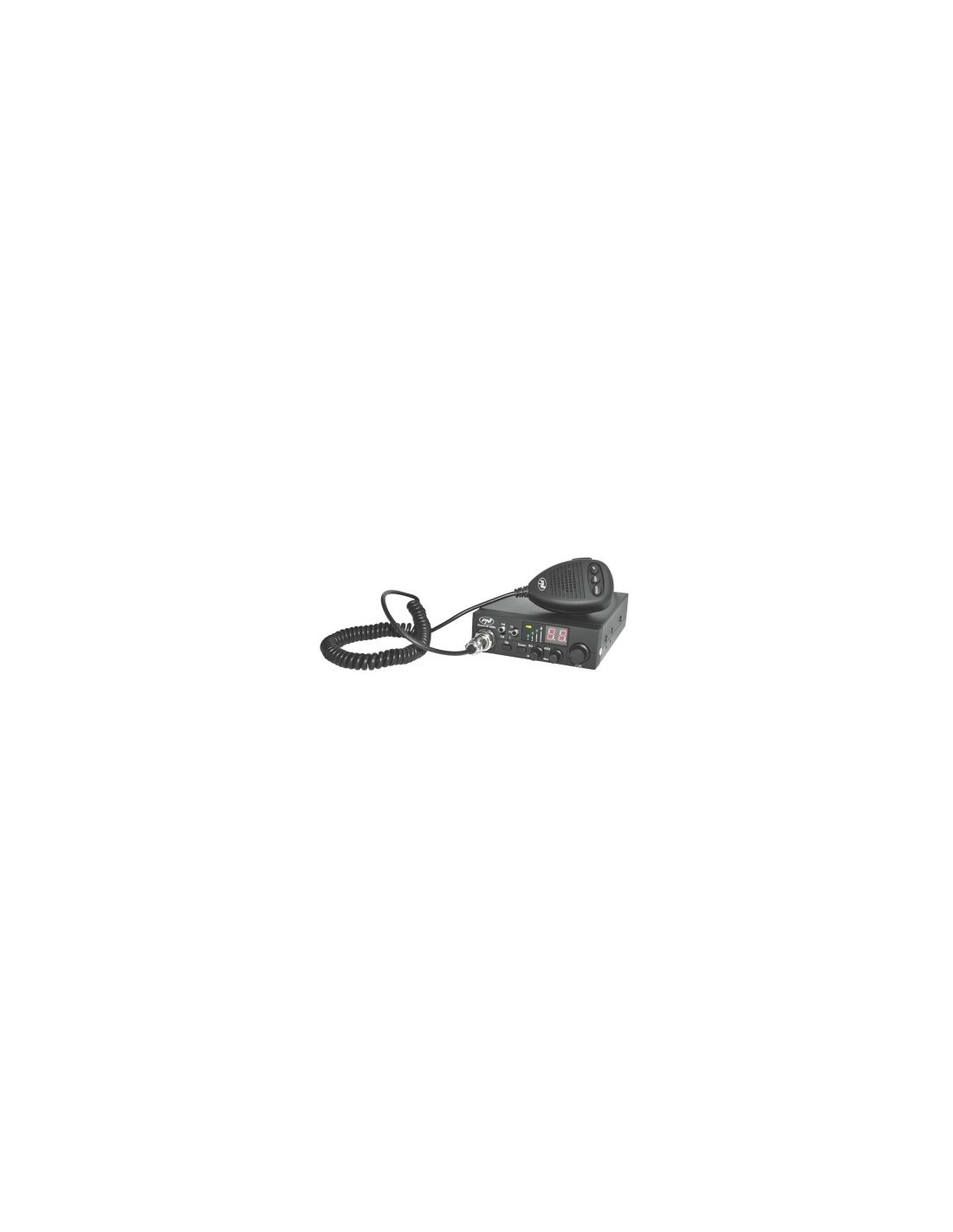

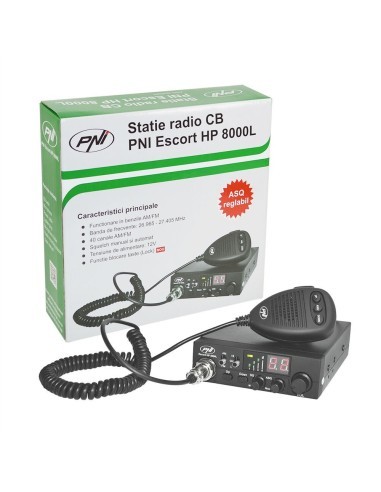

CB Radio Station Kit PNI ESCORT HP 8000L ASQ + CB Antenna PNI ML70

CB Radio Station Kit PNI ESCORT HP 8000L ASQ + CB Antenna PNI ML70

An innovation in the CB segment, the adjustable automatic squelch (ASQ) offers maximum comfort even for the most demanding users of car CB radios. While we were previously accustomed to turning the ASQ on and off, PNI now introduces the adjustment function, which allows for the elimination of up to 100% of interference, background noise, and disturbances in the CB band.

ASQ Button on Microphone

For increased comfort while driving, PNI has positioned the automatic squelch (ASQ) activation/deactivation button on the microphone. In addition to this button, the microphone also features up/down buttons for changing channels, so you won't have to take your eyes off the road to operate these main functions.

Compact Size

You can use the product in any car, as it is one of the smallest CB stations on the market. Sturdy and with a pleasant design, it can be placed anywhere: armrest, dashboard, between seats, without causing discomfort or disturbance.

Key Lock Switch

The PNI Escort HP 8000L CB radio station has a switch on the front panel that allows for the selection of the emergency channel (19), normal operating mode (CH), and activation of the key lock function (L), which is useful in situations where accidental key presses on the station are to be avoided.

Performance of PNI ML70 CB Antenna

The performance of the product is closely related to the technical characteristics of the antenna under ideal installation and usage conditions: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc.

Communication Distance

The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, a maximum communication distance of 9 km is achieved under ideal working conditions: calibrated antenna, open field without obstacles, station with the maximum legally allowed power of 4W, and standard reception. Any obstacles such as hills, mountains, buildings, or walls can reduce this distance.

Antenna Length

The length of the antenna is a very important factor that can influence the communication distance. Therefore, the longer the antenna, the greater the range. The PNI ML70 antenna has a length of 70 cm (including the magnetic base).

Magnetic Base

The PNI 145/PL magnetic base included in the package comes with a 4 m cable, sufficient for placing the antenna on the dome, has a diameter of 145 mm, and a strong magnet that provides stability to the antenna even at high speeds.

Complete Package

This kit is ready for installation, including: antenna, magnetic base with cable and PL259 connector, calibration Allen key. All you need to do is mount the antenna on the magnetic base, connect it to a CB radio station, and calibrate it to use it at maximum performance.
