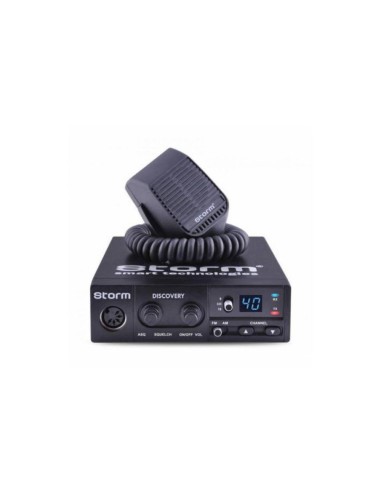

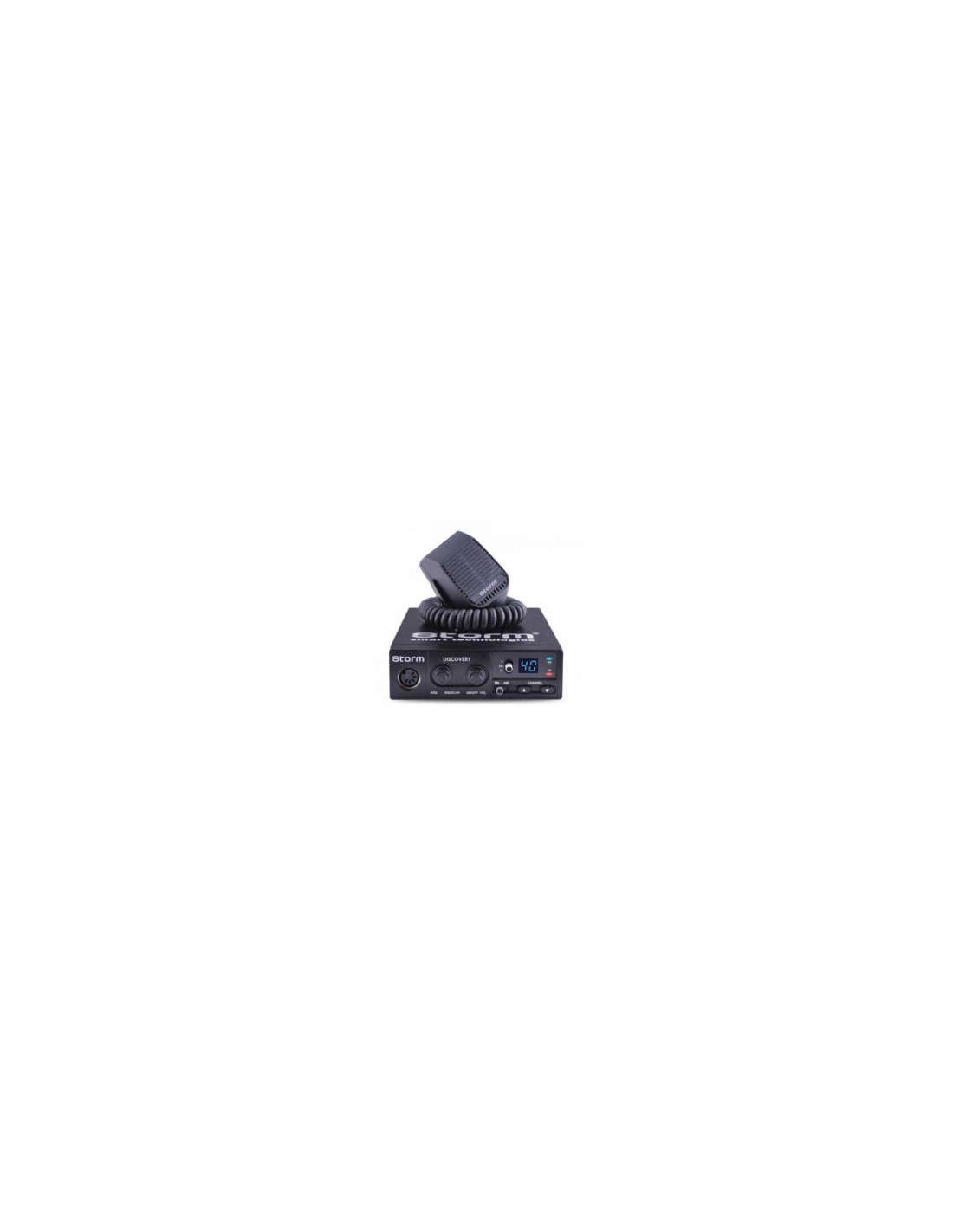

Transceiver Station - Storm Discovery

What is it and what is it used for?

The Storm Discovery transceiver station is a communication device that offers adjustable transmission power and uses SMD technology. This station has 135 channels and AM/FM modes, equipped with features such as Autosquelch and Squelch control. It is used in Romania on band E.

Technical specifications

• Frequency: 26.965-27.405 MHz
• Power supply voltage: 13.8 V DC
• FM sensitivity: 1.0 µV at 20dB SINAD
• AM sensitivity: 1.0 µV at 10 dB S+N/N
• Modulation type: AM-FM
• Adjacent channel rejection: 60 dB at 10KHz
• Intermediate frequencies: First IF=10.695 MHz, Second IF=455 KHz
• Frequency response (-6dB): 450-2500 Hz
• Modulation: > 45 dB
• Squelch: Adjustable from 1.2 µV to 1mV
• Maximum deviation: 2.5 KHz FM; 90% AM
• Radiation: 62 dB or more
• Frequency tolerance: better than 0.002%
• Antenna impedance: 50 Ohm
• FM consumption: 1.3 A
• AM consumption: 2 A
• Dimensions (W x D x H mm): 124 x 38 x 190 mm

In what situations is it used in practice?

Professional use

• Used in professional communication activities.
• Ideal for emergency situations due to dedicated channels.

Personal use

• Frequently used in recreational activities.
• Used by amateurs for outdoor communications.

Instructions for use

1. Ensure that the station is connected to a 13.8 V DC power source.
2. Set the desired frequency using the control buttons.
3. Adjust the Squelch according to needs.
4. Consult an authorized service for installation and advanced configuration.

What do customers appreciate about this type of product?

Customers appreciate the transceiver station for its versatility in communications. Additionally, noise functions and emergency channels are considered useful in critical situations. The compact design and ease of use are other positive aspects mentioned by users.

Frequently asked questions about this type of product

What is the transmission power of the station? Answer: The station has adjustable transmission power, adaptable to the user's needs.

Is the station compatible with other equipment? Answer: Compatibility depends on the technical specifications of the equipment used.

What type of antenna is recommended? Answer: A 50 Ohm impedance antenna is recommended for optimal performance.

Applicability and use

Transceiver stations are used in various fields, including emergency communications and recreational activities. They are essential for ensuring effective communication in diverse situations.

Recommendation

It is recommended that users familiarize themselves with the technical specifications of the station to maximize performance. Consulting a specialist for installation is advisable for the correct use of the device.
