Wiring with button and relay for separate control of two LED projectors or LED bars up to 288W

Wiring with button and relay for separate control of two LED projectors or LED bars up to 288W

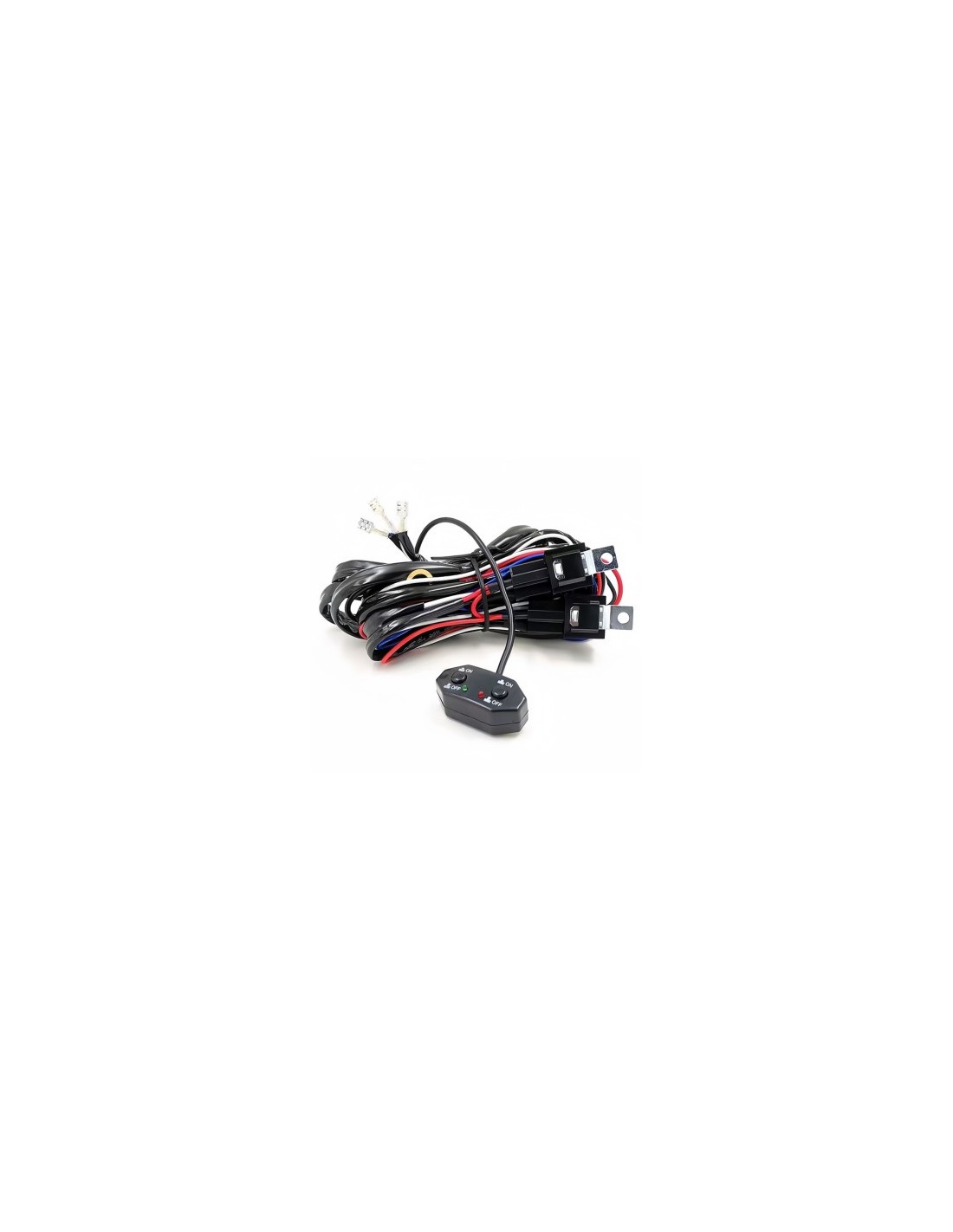

Wiring with button and relay with two parallel circuits, designed to control the on and off of one or more projectors or LED bars. Ideal for off-road installations, this wiring allows separate control of the two circuits, being capable of supporting a total consumption of up to 288W.

Features:

• Wiring length: 3 meters
• Maximum supported power: 288W
• Power supply: 12V
• Two separately controllable circuits: Allows individual on and off of multiple projectors or LED bars.
• On/off button: Includes a non-return button for easy control of connected devices.
• Integrated relay: Ensures efficient operation and protects the vehicle's electrical installation.

Instructions for use:

1. Installation: Connect the wiring to the 12V power source and ensure the relay is securely fixed.
2. Connecting projectors/LED bars: Connect the projectors or LED bars to the wiring, being careful not to exceed the maximum consumption of 288W.
3. Button installation: Install the button in an accessible location inside the vehicle for easy control.
4. Testing: Turn on the system and check the operation of each circuit individually using the control button.

Recommended use:

• Off-road automotive installations, hunting, fishing, machinery, or special vehicles.
• Individual control of multiple LED light sources.
