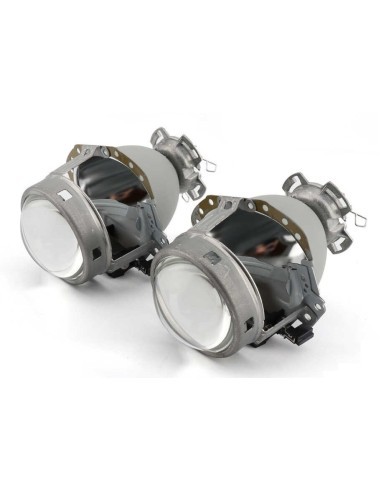

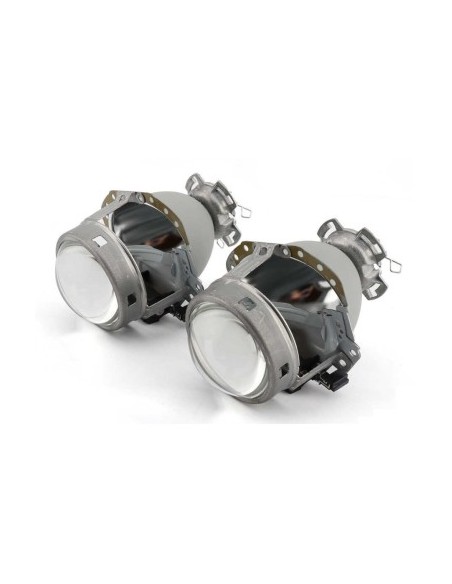

Bixenon D2S 3'' Headlight Lenses Hella E55 EvoX-R 3.0 with igniter support

Bixenon D2S 3'' Headlight Lenses Hella E55...

Bixenon D2S 3'' Headlight Lenses Hella E55 EvoX-R 3.0 with igniter support

Reference TN 262213

Stoc

€80.15

Tax included Delivery: 3–8 days

To benefit from the warranty, the product must be installed by an authorized service center.

(0)

Write a review Write a review

Description
Product Details

Lupe Morimoto Bixenon D2S 3″ type Hella E55 EvoX-R 3.0 with igniter support

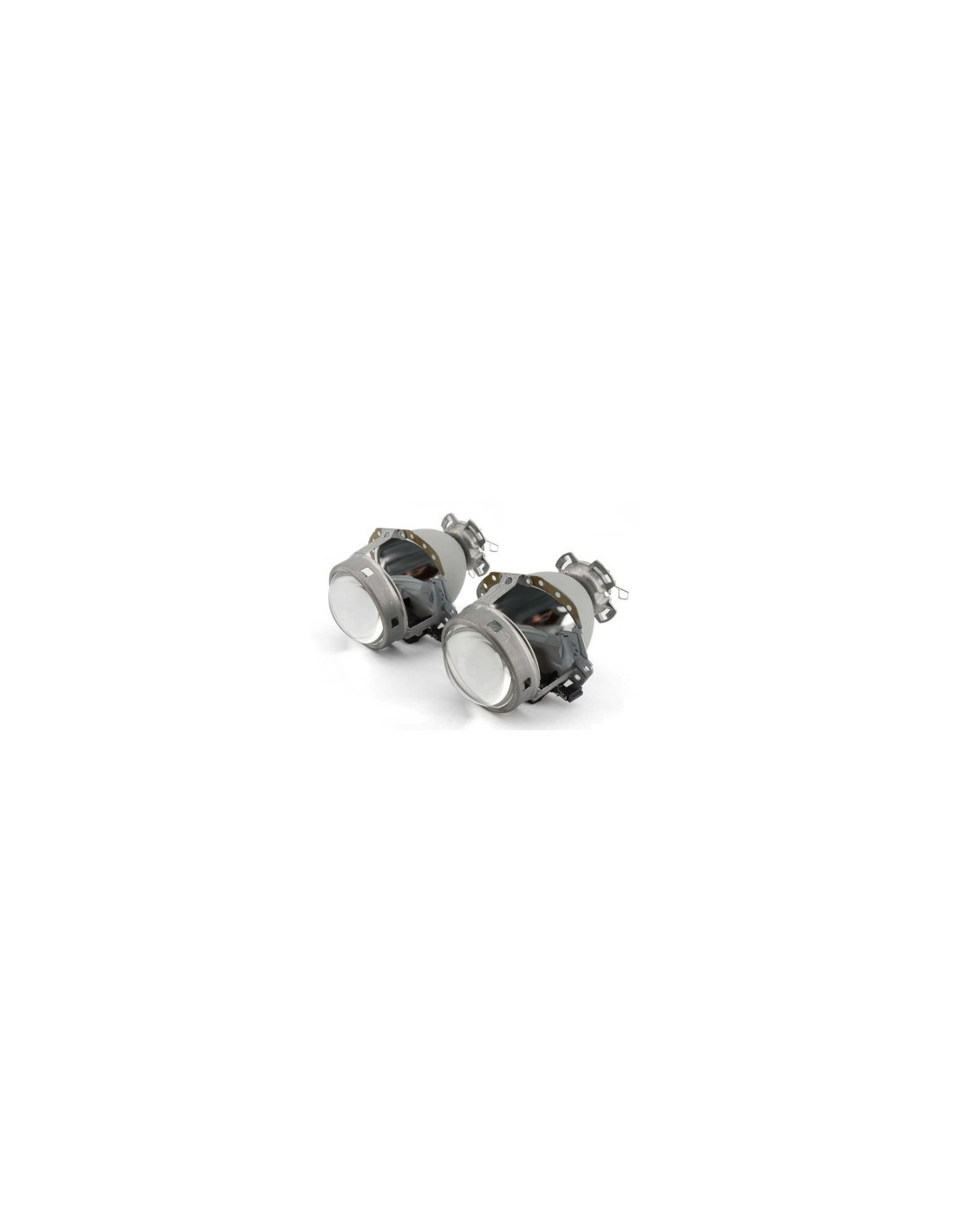

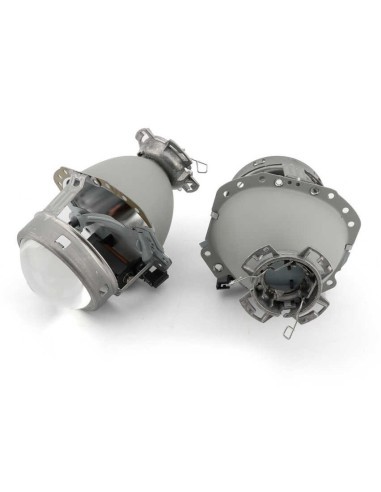

Bixenon D2S 3″ Lens Kit type Hella E55 Evox-R 3.0 with igniter support

These lenses are used to replace worn original HELLA Evox-R lenses

These lenses are not produced by Hella (they are not Hella brand). They are aftermarket lenses that replace the original Hella lenses.

Ideal for replacing burnt lenses for the following car brands*:

*This information is not contractually binding. Before ordering, please check if your car is equipped with this type of lens. There may be multiple types of lenses on the same car, depending on the chassis series.

Make/model

	Year	Info
Audi
Audi A6 C5	1997-2004	A6 C5 Bi-xenon EvoX-R
Audi A6 C6	2004-2011	Audi A6 EvoX-R
Audi A8	2002-2009

BMW
5 Series E39	2001-2002	E39 EvoX-R
5 Series E60	2003-2006	For OEM D2S xenon headlights only, without AFS. Can be replaced without opening headlight.
7 Series E65	2001-2008
X5 E53	1999-2006	Perfect replacement. For the types with AFS you will need to open up the headlight, but because of the tough permaseal this is not an easy job.
Z4 E85	2002-2008	Direct replacement of both halogen and xenon projector. Installation is very easy, as projector can be taken out from the back of the headlight without splitting the headlight.

Chrysler
Grand Voyager	2008-2015	Permasealed headlights, needs also D1S to D2S adapters since the original bulb is D1S.

Ford
Fiesta	2009-2012	Halogen projector can be replaced directly by the EvoX-R. Headlight is permasealed. Ford Fiesta MK6.5 and Ford Fiesta MK6
Focus C-max	2003-2010	Replaces the OEM Hella Bi-xenon projector.

Jaguar
S-type	2004-2007

Land Rover
Range Rover	2001-2010	Direct fit on the Hella headlights. Units made by AL/Bosch need the E46 projectors. Butyl headlights, easy to open.

Lancia
Thesis	2002-2008	Very easy replacement through the back of the headlight.

Mercedes
A-Class W176	2012+	Projector can be replaced directly through the rear opening, no need to bake the headlight. Original projector is D1S version, so a D1S to D2S adapter and D2S bulb is also needed.
CLK W209/A209	2002-2010
CLS W219	2004-2010
E-Class W211	2003-2009	W211 EvoX-R
E-Class C207/A207	2009-2012
ML W163	2001-2005
ML GL W164	2006-2010	Easy to replace without opening headlight (with AFS cornering function it needs to be opened).
R-Class	2005-2010	R Class EvoX-R

Mitsubishi
Lancer EvoX-R	2008-2016

Opel
Vectra C	2002-2008	Vectra C1 EvoX-R

Porsche
911 / 996	1999-2004	Original xenon headlights have Hella projectors which can be replaced very easily with the EvoX-R. No need to open the headlight, plug & play installation.

Saab
9-3	2002-2007

Skoda
Fabia	2010-2014
Octavia	2009-2013	Because of the tough permaseal some people will cut off a part on the backside of the headlight. Here is a link to our blog with some pictures: EvoX-R
Superb	2002-2008	These projectors just need a little bit of modification. Also, you can’t use original ballasts without any modifications because they will not fit anywhere inside the headlight although you use adapters. So you need to expand (make it larger) the cover which needs to be opened when you change your bulb. After all, these are way better than burned OEM projectors!
Superb	2008-2015

Volkswagen
Passat B5.5	2001-2005	Passat B5.5 EvoX-R For 3BG with OEM halogen headlights, a small corner needs to be shaved off. For 3BG with OEM Xenon headlights, the pivot point from the original Hella projectors needs to be mounted to the EvoX-R.
Passat B6	2005-2010	Passat B5.5 EvoX-R
Polo 6N2	1999-2001	GTI xenon headlight uses a Hella 3 inch projector, can be replaced easily without opening the headlight housing.
T5.1	2003-2009	For the Xenon headlight, the EvoX-R is a direct replacement.
Touareg	2007-2010	D1S originally.

Very intense and uniform focusing, over a very large radius, with a very well-defined cutoff, managing to overshadow many OEM Lens Brands.
Also, the high beam is very strong, uniform, and well-defined.

Uses D2S bulbs

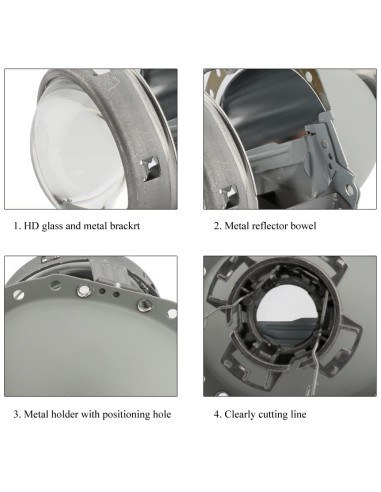

Lens: Glass – Clear

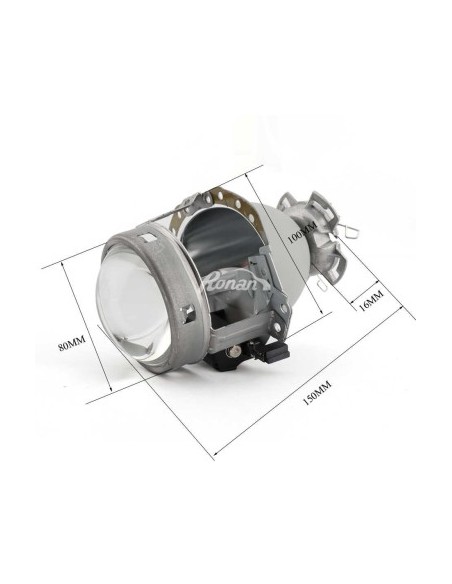

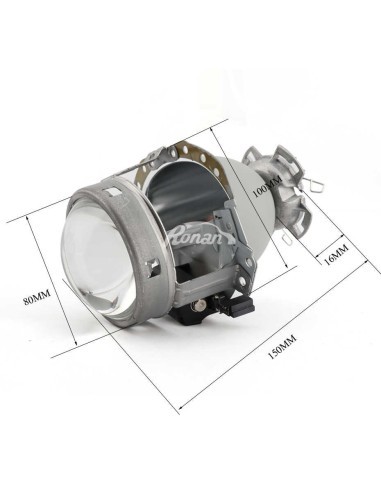

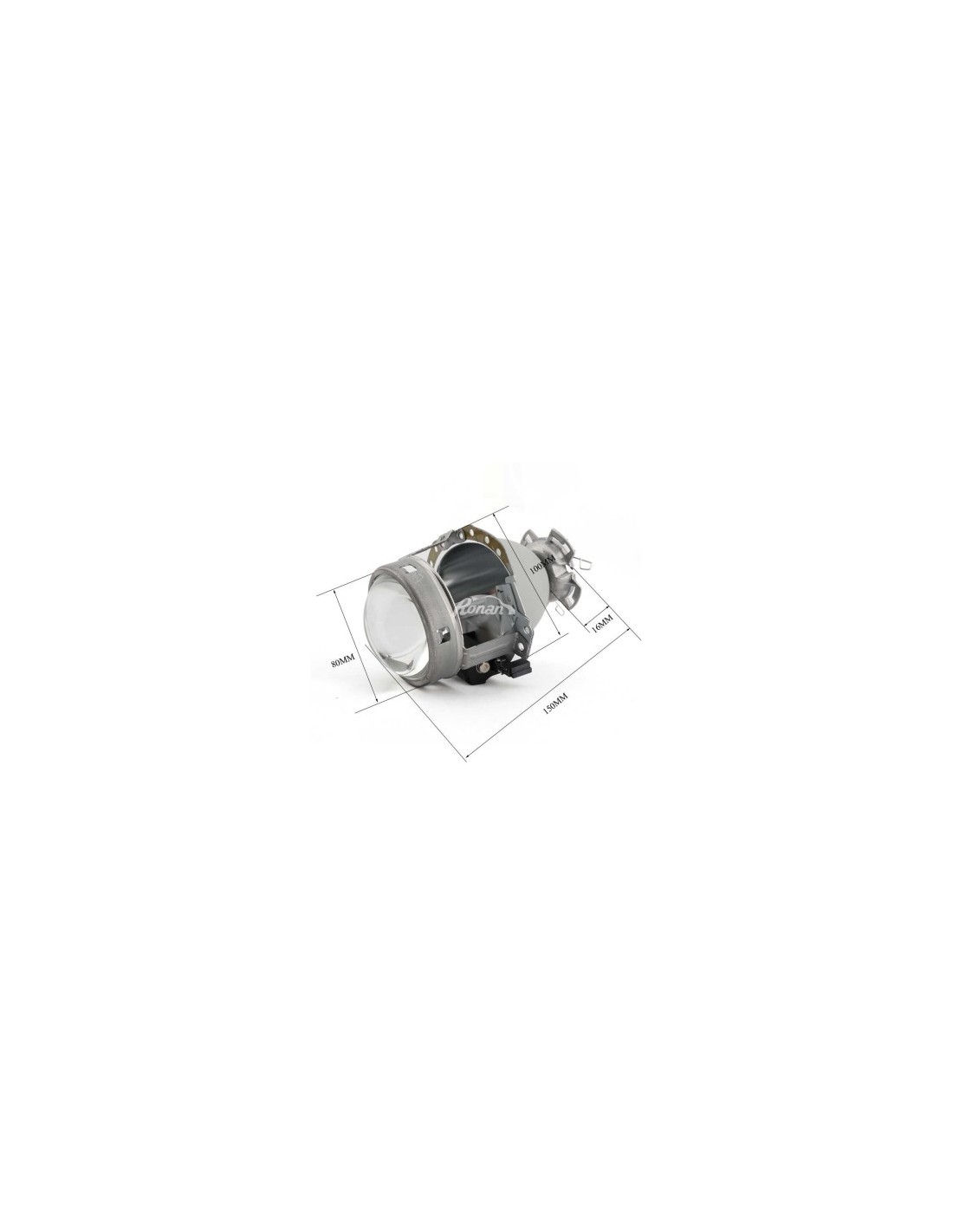

Lens diameter: 3″
